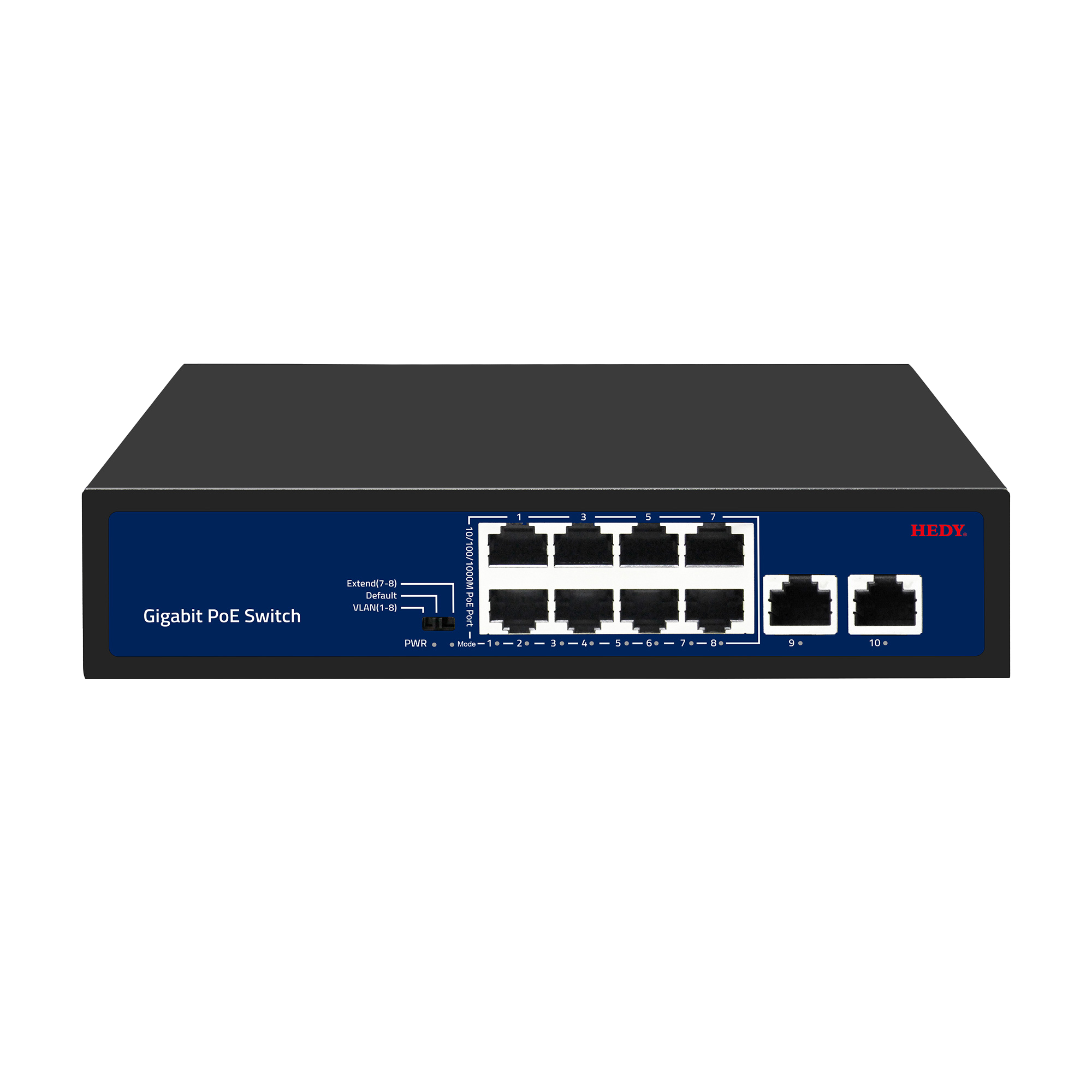

10-Port Gigabit PoE Switch

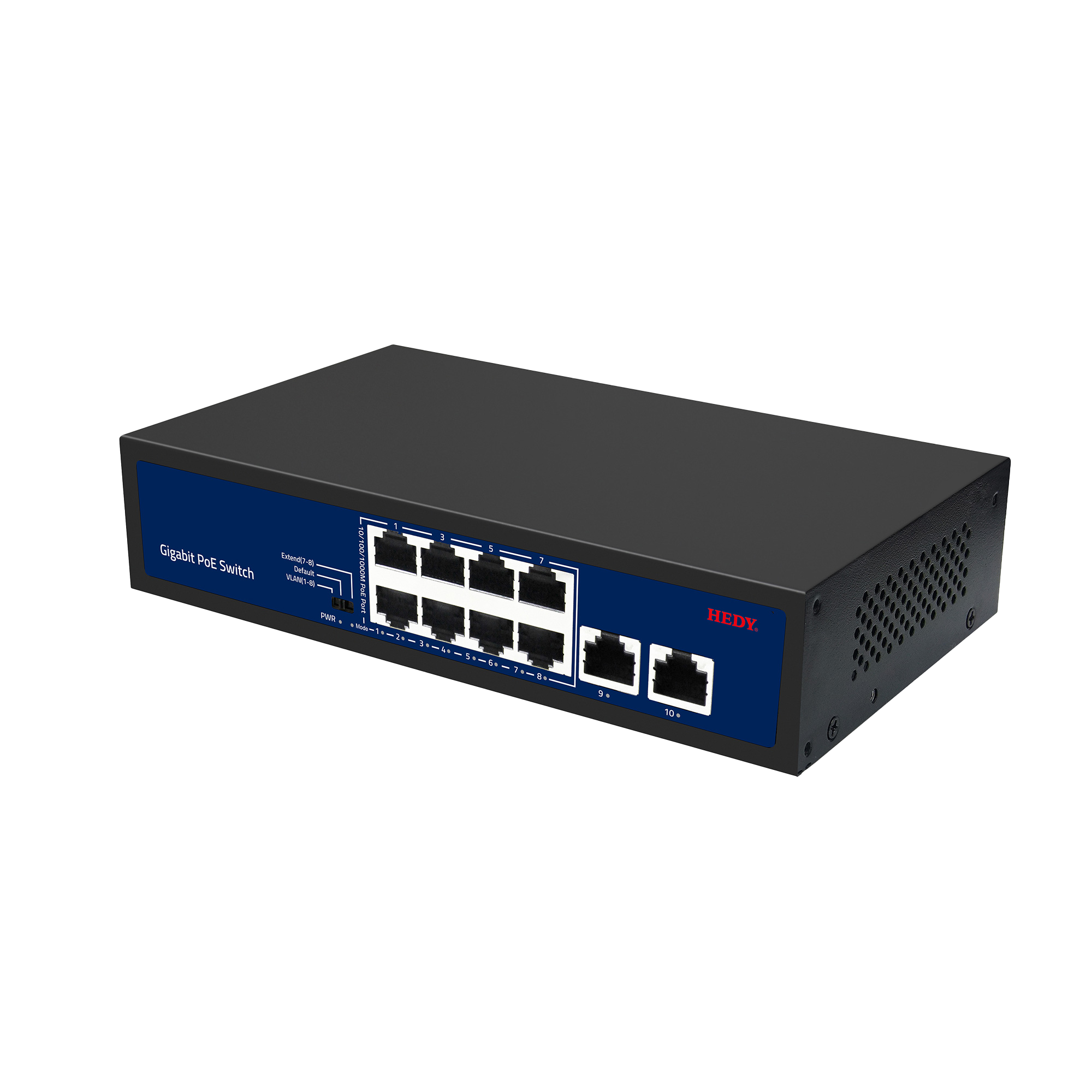

10-Port Gigabit PoE Switch - Image 2
10-Port Gigabit PoE Switch - Image 3

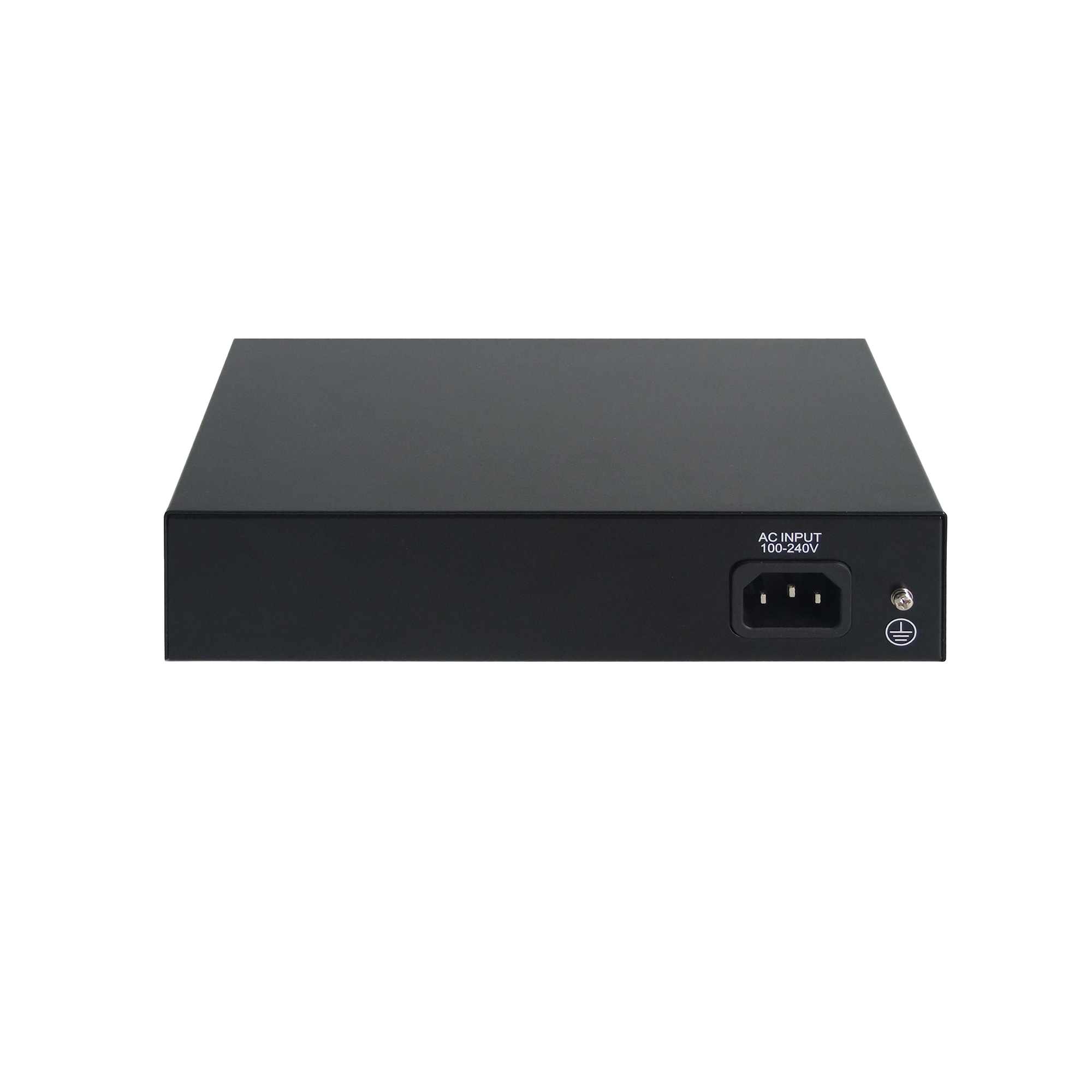

10-Port Gigabit PoE Switch - Image 4

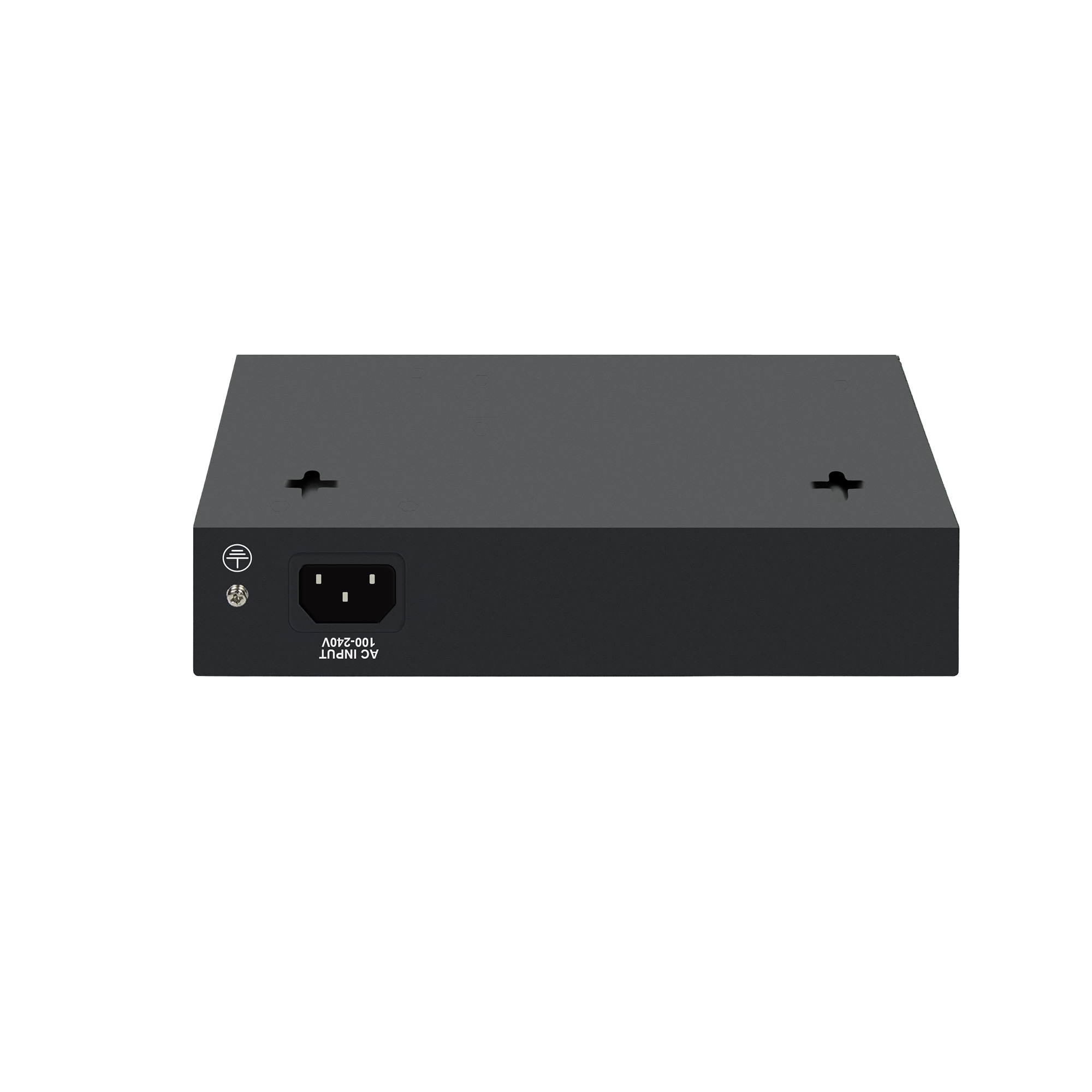

10-Port Gigabit PoE Switch - Image 5

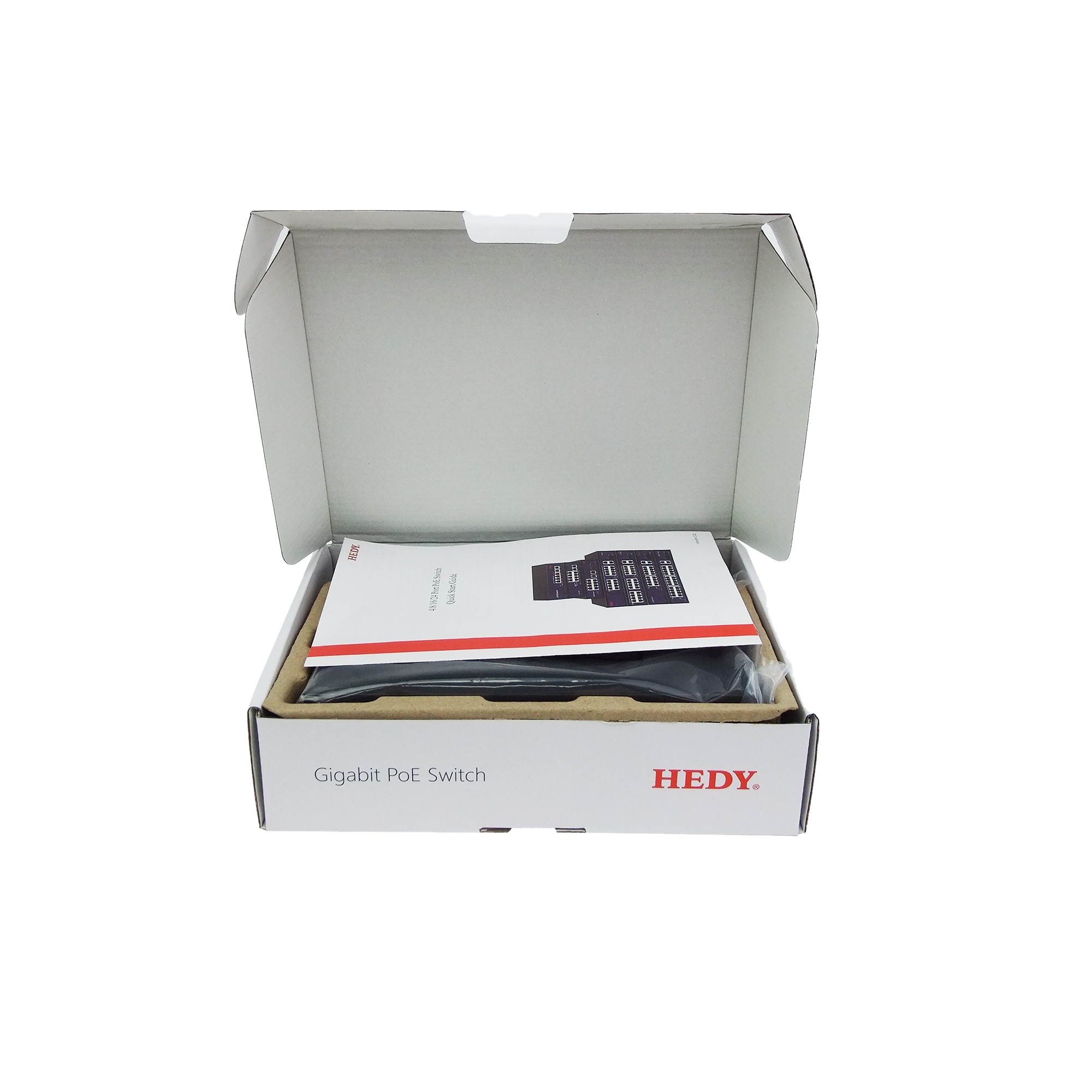

10-Port Gigabit PoE Switch - Image 6

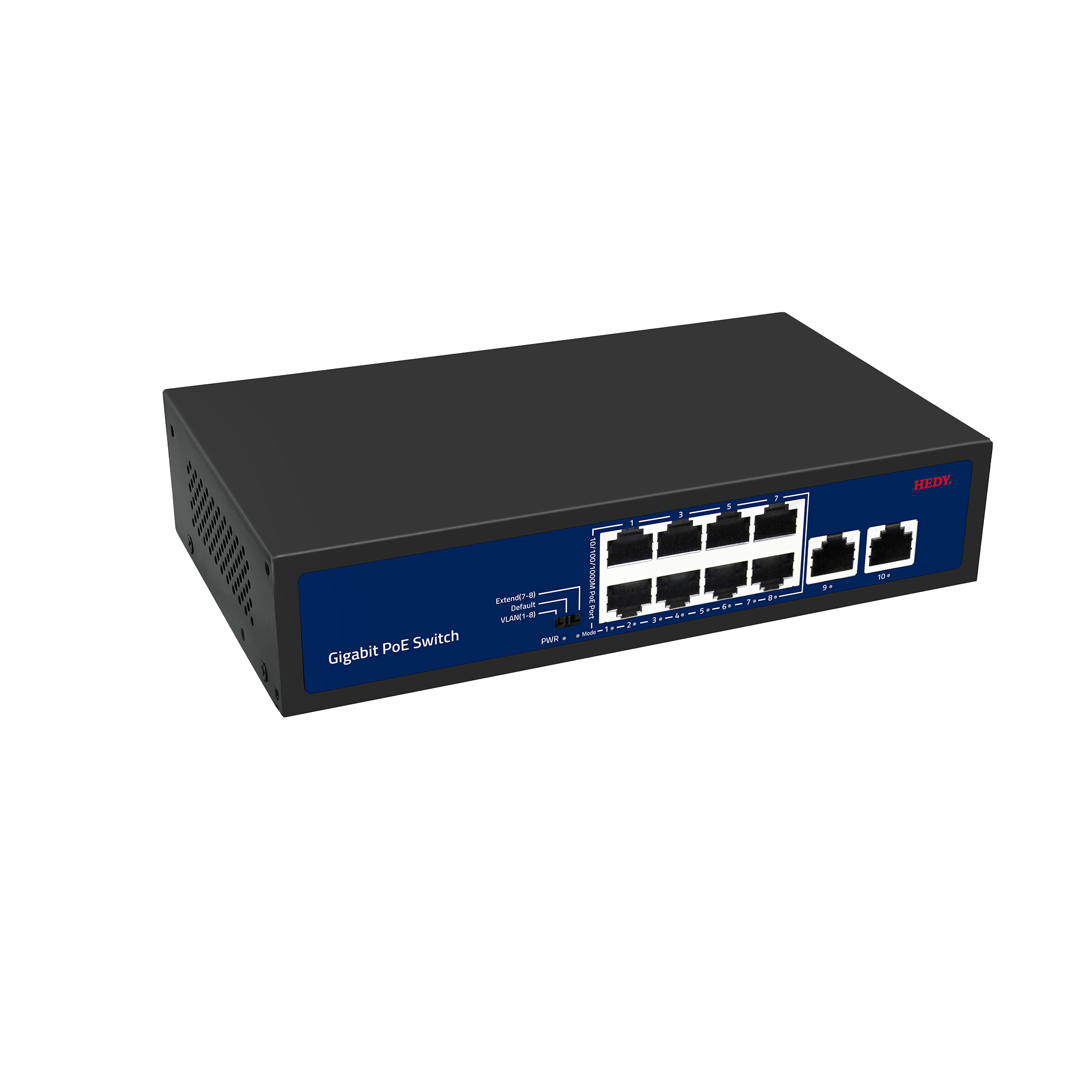

10-Port Gigabit PoE Switch

HD-U890-8G2G-96

● 8×10/100/1000Mbps PoE Ports & 2 Gigabit Ports
● 100-240V AC 50/60Hz
● Standard PSE Chip
● AI/Watchdog function
● Network Port Support 6KV Common Mode & 6KV Differencial Mode Surge Protection
● Power Board Support 6KV Common Mode & 2KV Differencial Mode Surge Protection

Download the datasheet

Why You Want It

IEEE802.3af/at

Compliant with both IEEE802.3af (PoE) and IEEE802.3at (PoE+) standards, and meets IEEE 802.3i, 802.3u, 802.3x, 802.3ab standards for reliable performance.

Class A EMI/EMC Compliant

Certified to Class A industrial standard for EMI/EMC. Delivers strong resistance to electromagnetic interference.

6KV Surge Protection

6KV Common Mode & 6KV Differential Mode surge protection (RJ45 port)； 6KV Common Mode & 2KV Differential Mode surge protection (power board).

Standard PSE Chip

Standard PSE chip, smart power matching, compatible with all af/at devices – safe and reliable.

3 Modes + Watchdog

Normal（Standard switching, 100m）; VLAN(Port isolation, prevents broadcast storms); Extend(10Mbps, up to 250m,supported on ports 7-8); Watchdog(Auto‑reboots faulty devices, lowers maintenance).

Plug-and-play

Simply connect the cable and power on – no configuration required, auto-detection works instantly.

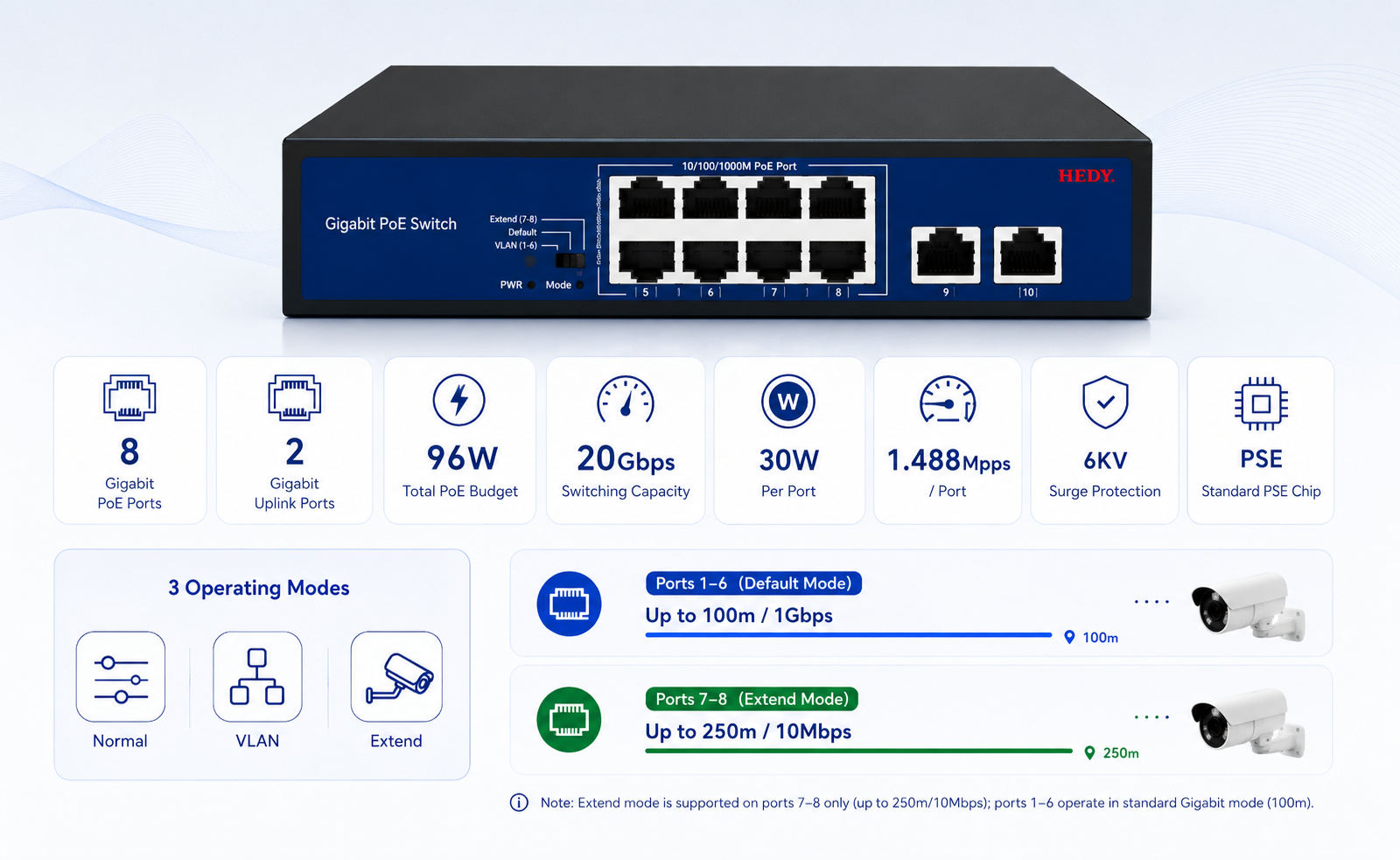

8 x Gigabit PoE ports + 2 x Gigabit uplink ports

● Equipped with 8 x Gigabit PoE ports (30W per port, 96W total budget) and 2 x Gigabit uplink ports. Delivers 20Gbps switching capacity and 1.488Mpps/port packet forwarding rate.
● Built with standard PSE chip, Class A EMI/EMC compliant, and 6KV dual surge protection. Supports 3 operating modes (Normal / VLAN / Extend) + AI Watchdog.
● Note：Extend mode is supported on ports 7-8 only (up to 250m/10Mbps); ports 1-6 operate in standard Gigabit mode (100m).
8-port Gigabit PoE switch with 2 Gigabit uplink ports, 96W PoE budget, 20Gbps switching capacity, 30W per port, 6KV surge protection, standard PSE chip, AI Watchdog, and Extend mode on ports 7-8 up to 250m at 10Mbps.

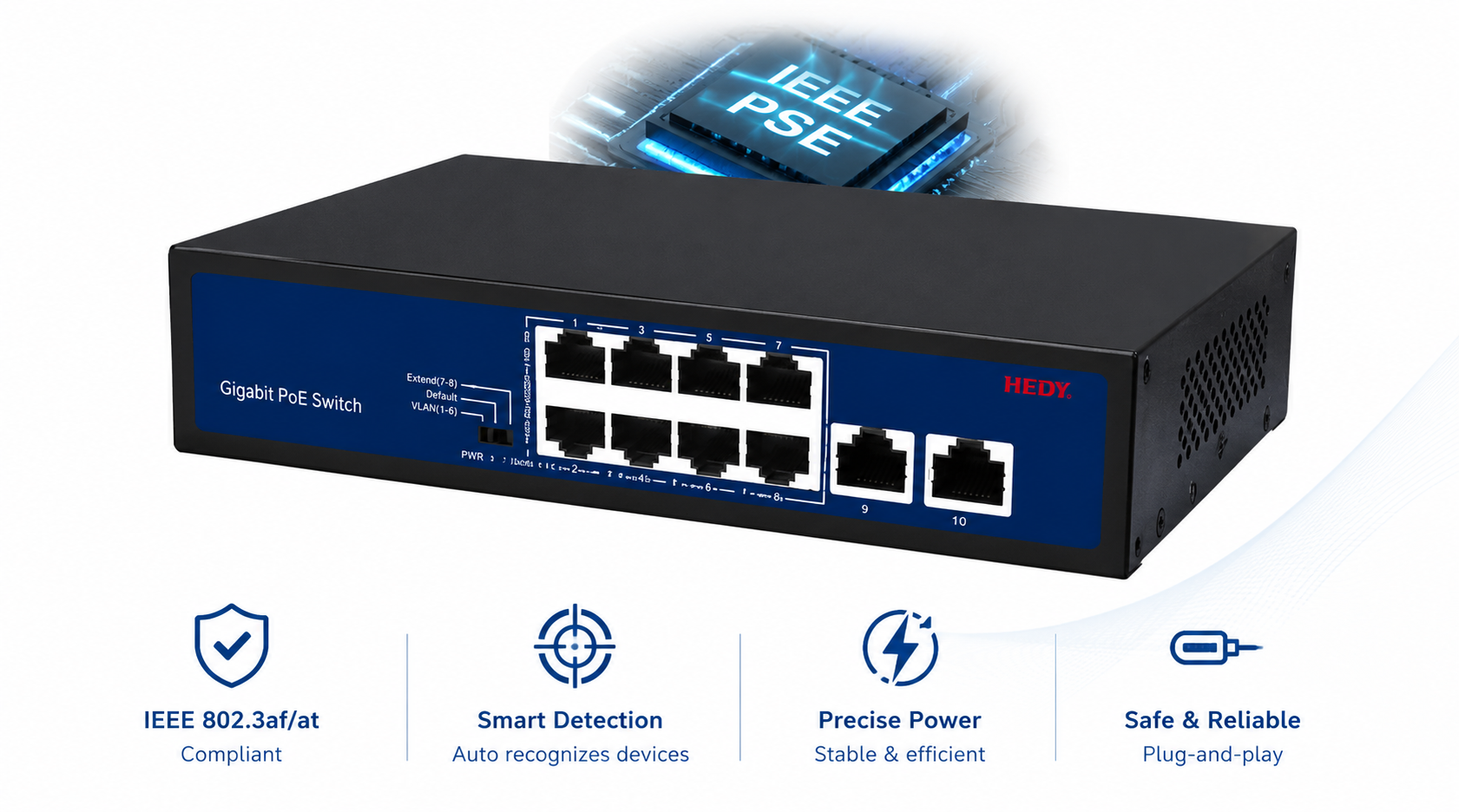

Standard PSE Chip – Safe & Reliable

Adopts IEEE standard PSE chip, fully compliant with PoE protocol. Intelligently detects connected devices and delivers precise power matching. Eliminates compatibility issues of non-standard chips. No risk of burning powered devices – safe, reliable, plug-and-play.
8-port Gigabit PoE switch with standard IEEE PSE chip, smart PD detection, precise power matching, IEEE 802.3af/at compliance, and safe plug-and-play PoE power delivery.

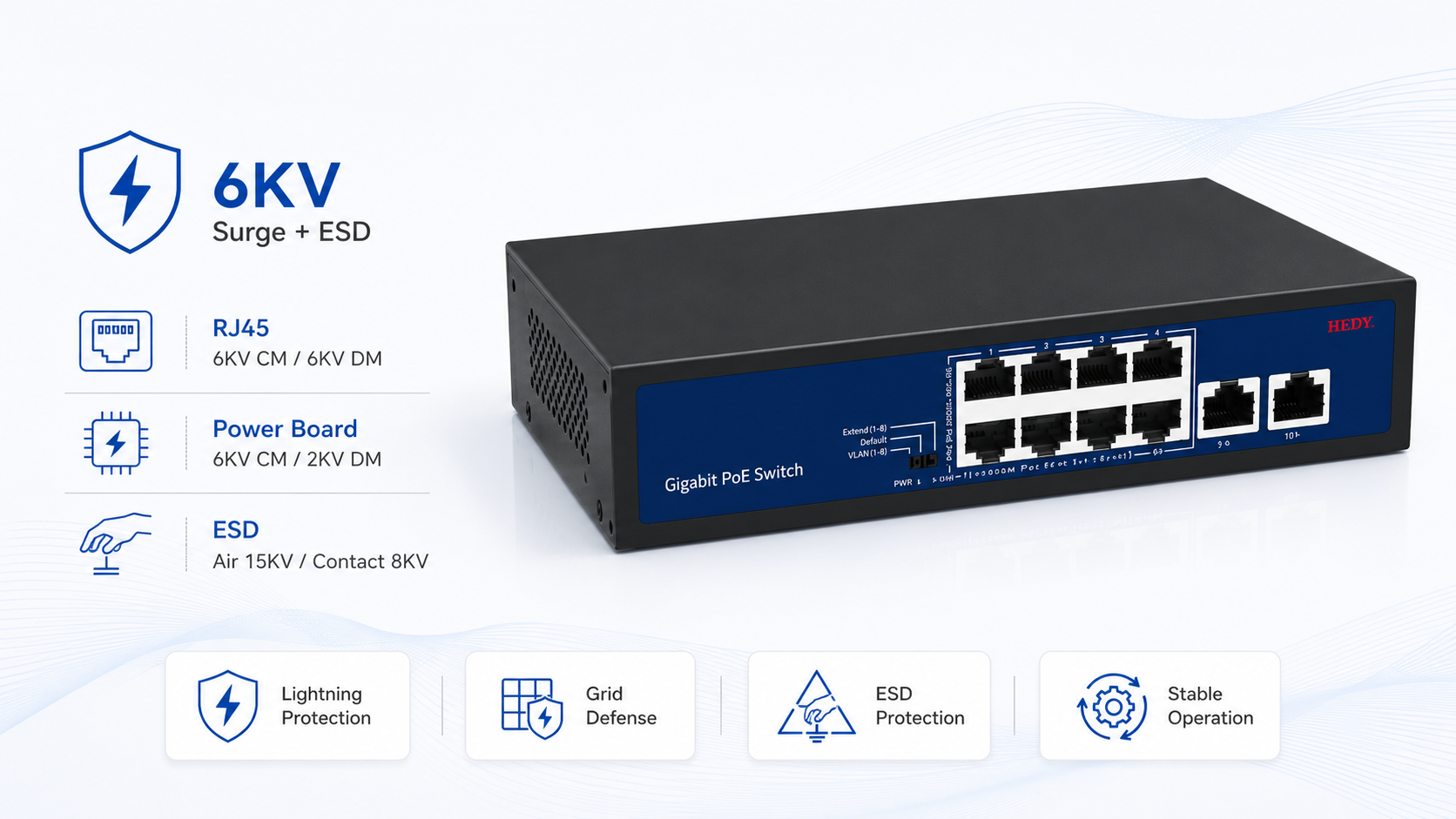

6KV Dual Surge Protection

● RJ45 port: 6KV Common Mode + 6KV Differential Mode.
● Power board: 6KV Common Mode + 2KV Differential Mode.
● Plus ESD protection: air 15KV / contact 8KV. Effectively protects against lightning strikes, grid fluctuations, and ESD events – ensures stable operation in harsh environments.
8-port Gigabit PoE switch with 6KV dual surge protection, RJ45 6KV common and differential mode protection, power board surge defense, and 15KV air 8KV contact ESD protection.

Specification

ModelHD-U890-8G2G-96
ProductPoE Switch with Standard PSE Chip
Ports
Network Port10
PoE Port8, 1000Mbps;  RJ45 ports; Max. 30W Output of Single PoE Port
Uplink Port2, 1000Mbps; Transmission Distance: Defaulf: 0-100m
PWR(Power supply Indicator)Light on: Powering
Light off: No Power
Mode(Slide Switch)Green light off: Normal/Default mode
Green light on: VLAN mode
Green ligh flash: Extend mode
1-10 IndicatorGreen light off:  Link is disconnected
Green light on:  Link is connected
Green light flash: Data Transmitting
Standard
Network ProtocolIEEE802.3i/802.3u/802.3x/802.3af/802.3ab
Performance
Switching Capacity20 Gbps Full duplex
Packet Forwarding Rate1.488Mpps/port
Forwarding ModeStore-and-forward
MAC Address Table2K
VLANSupport
WatchdogSupport
Power Over Ethernet
PoE StandardIEEE802.3af, IEEE802.3at
PoE Power Supply1/2(+),3/6(-)
Transmission Distance0-100m/1000Mbps or Port 7-8 Max. 250m/10Mbps via Cat.5e or more under Extend mode
PoE FeatureAll ports support MDI/MDIX
General
Power SourceBult-in Power Supply
Input: 100-240VAC, 50/60Hz
PoE Power Budget96W
Power Consumption<5W
ESDAir discharge: 15KV
Contact discharge: 8KV
Surge Protecton-RJ45 PortCommon mode:  6KV
Differential mode/PoE :  6KV
Differential mode/Signal:  6KV
Surge Protecton-Power SupplyCommon mode: 6KV
Differential mode: 2KV
Working Temperature-10℃-50℃
Humidity10%-90% , non-condensing
Storage Temperature-40℃-70℃
ColorBlack
Weight0.73 kg（not include input cable & packaging）
Dimension(L×W×H)200*118*44 mm

Dimensions (mm)
