Industrial 10-Port Gigabit Uplink PoE Switch
Industrial 10-Port Gigabit Uplink PoE Switch - Image 2
Industrial 10-Port Gigabit Uplink PoE Switch - Image 3
Industrial 10-Port Gigabit Uplink PoE Switch - Image 4

Industrial 10-Port Gigabit Uplink PoE Switch

HIP500-8H1G1S

● 8*100Mbps PoE ports + 1*1Gbps uplink RJ45 port + 1*1Gbps SFP port

● Support IEEE802.3af (15.4W) and IEEE802.3at (30W)

● PoE ports support PoE watchdog mode

● IP40 protection level, high-strength shell, DIN35 rail installation

● Industrial grade 4-level design, operating temperature from -40~75°C

● Support redundant power supply connection and anti reverse connection

● Support VLAN, Genius, and Extend modes

● Port 1 supports HiPoE 60W



Download the datasheet

Why You Want It

HiPoE 60W Support

Port 1 delivers up to 60W (HiPoE), compatible with IEEE 802.3af/at for high‑power devices.

PoE Watchdog

Automatically resets unresponsive PD devices, minimizing on-site maintenance.

Industrial Grade Wide Temperature

Industrial-Grade design, -40°C to 75°C operation, reliable in extreme conditions.

Redundant Power & Anti-Reverse

Dual power input with reverse polarity protection ensures uninterrupted operation.

Flexible Operation Modes

Supports VLAN, Genius, and Extend modes for traffic isolation, smart management, and longer PoE transmission.

Durable Enclosure

IP40-rated enclosure, high-strength shell, DIN rail (35mm) mounting for harsh industrial environments.

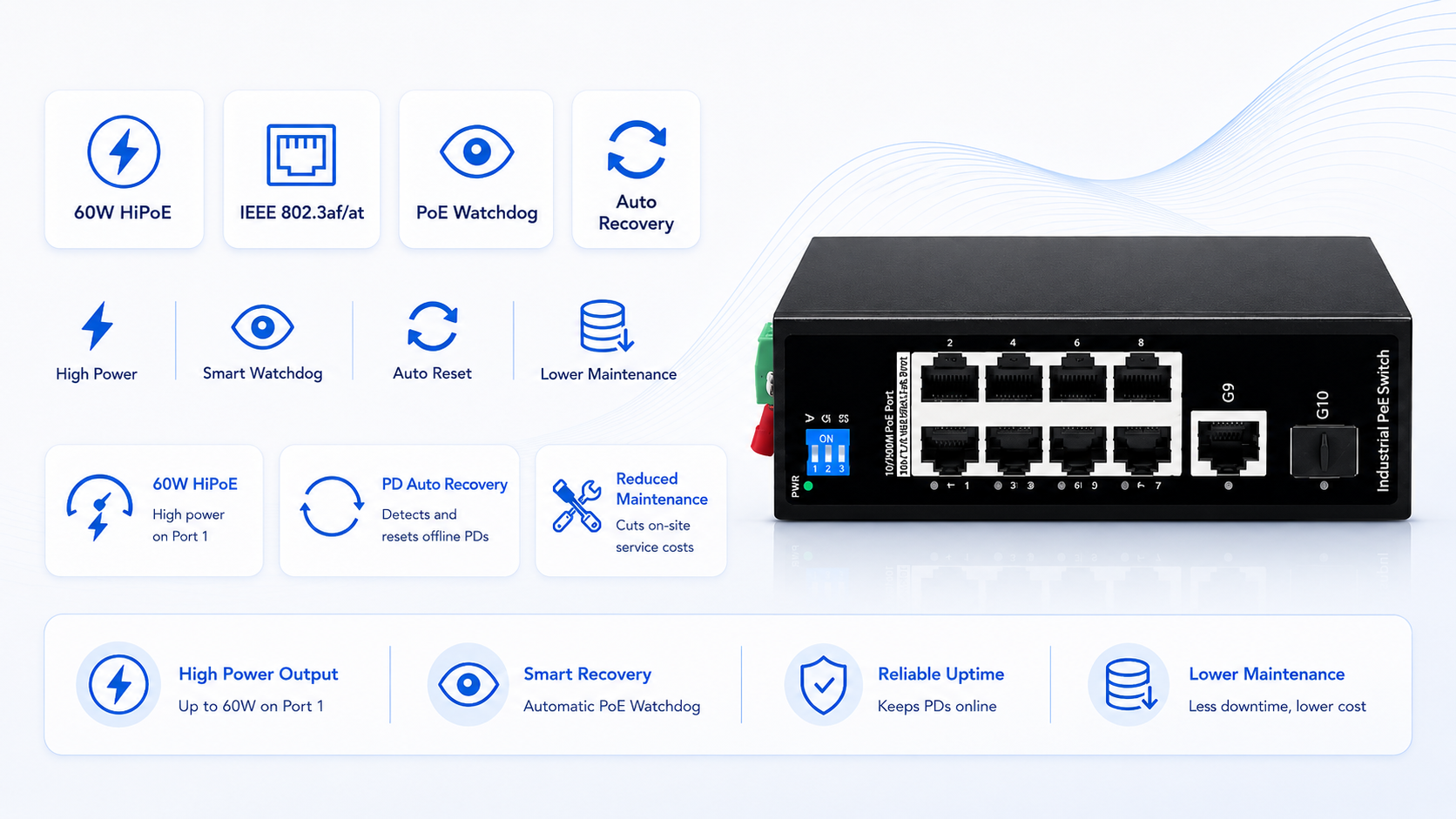

High‑Power PoE + Intelligent Watchdog

Port 1 delivers up to 60W HiPoE (IEEE802.3af/at compatible on ports 1‑8), while all PoE ports feature automatic PoE Watchdog – resetting unresponsive PD devices via data flow detection to slash on‑site maintenance costs.
Industrial PoE switch with 60W HiPoE port, IEEE 802.3af/at support, PoE watchdog auto recovery, reliable uptime and lower maintenance.

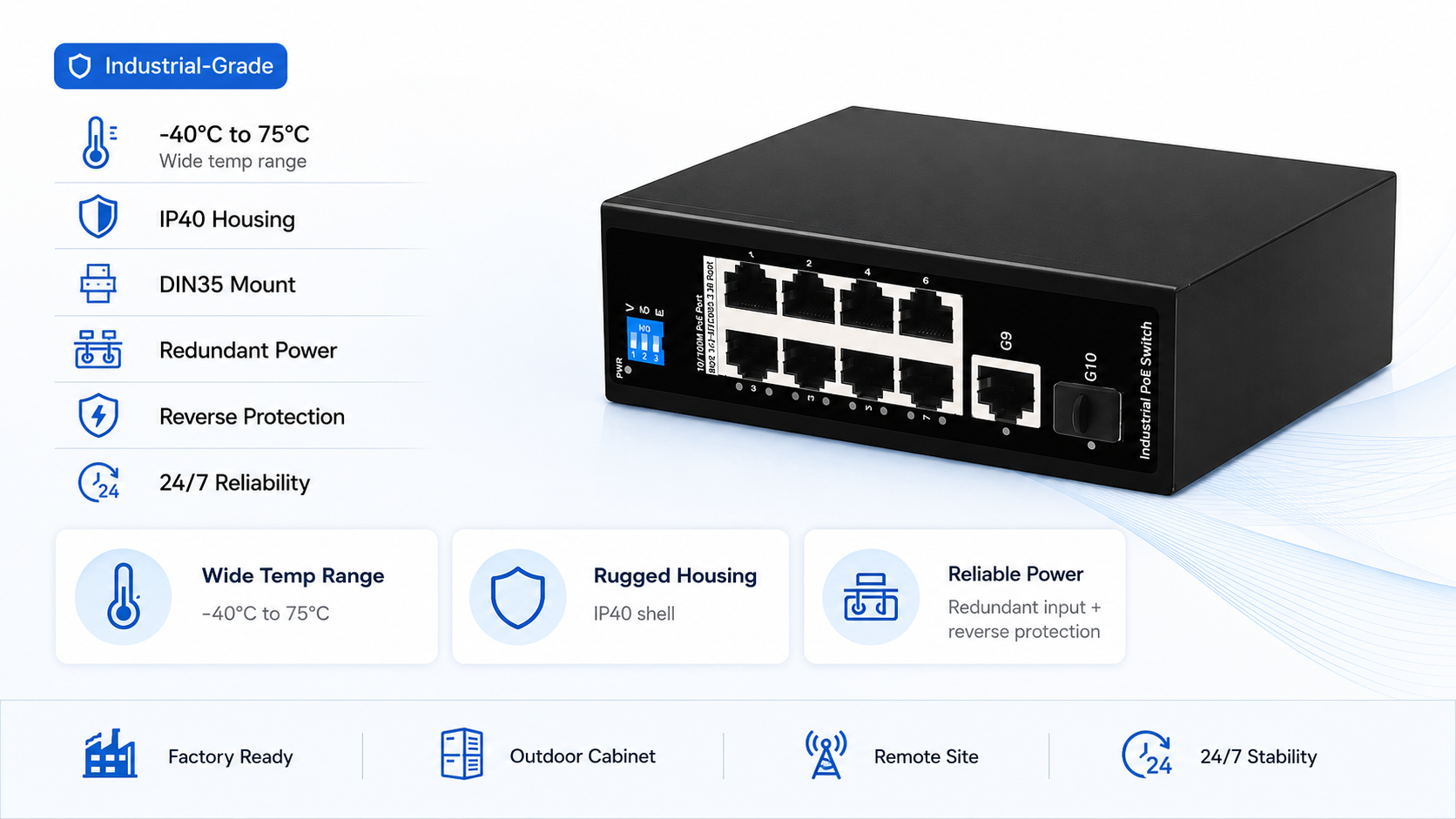

True Industrial Durability for Extreme Conditions

Built to industria-grade standards, operating flawlessly from -40°C to 75°C. The IP40 high‑strength shell, DIN35 rail mounting, redundant power inputs, and anti‑reverse connection ensure non‑stop performance in factories, outdoor cabinets, or remote monitoring sites.
Rugged industrial PoE switch with -40°C to 75°C operating range, IP40 housing, DIN35 rail mounting, redundant power input, and anti-reverse protection.

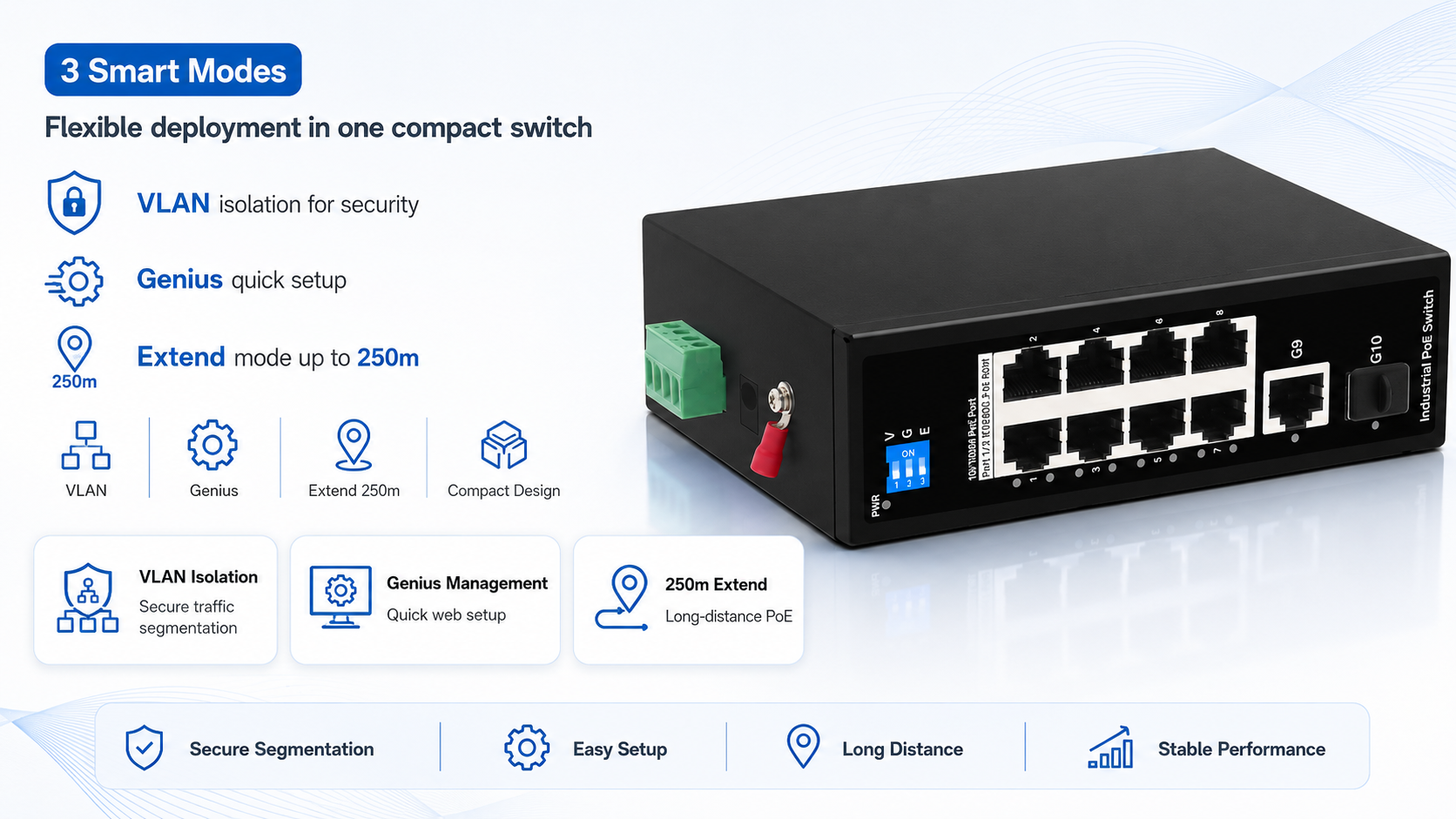

Three Intelligent Modes for Flexible Deployment

VLAN mode isolates traffic for security, Genius mode enables quick web‑based setup, and Extend mode pushes PoE transmission distance up to 250m – all in one compact switch. Ideal for hotels, campuses, or large‑scale surveillance networks.
Industrial PoE switch with VLAN mode, Genius quick setup, and Extend mode for up to 250m long-distance PoE transmission in one compact unit.

Specification

ModelHIP500-8H1G1S
Interface8*100Mbps PoE ports
1*1Gbps uplink port
1*1Gbps SFP port
Port StandardIEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet)
IEEE802.3z (Gigabit Ethernet Fibre Standards)
IEEE802.3x (Flow Control)
Switching Bandwidth5.6Gbps
Packet Forwarding Rate4.166Mpps
Packet Buffer4Mbit
MAC Address Table8K
Transmission MethodStore and Forward
PoE Standard

PoE Ports

Power Supply

IEEE802.3af (15.4W)
IEEE802.3at (30W)Port 1 supports HiPoE 60W, Ports 2-8 PoE power output <30WDC12~55V
DC48~55V  (PoE)
Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-)
CertificationCE, FCC, RoHS
Mainboard Power Consu3.88W
Product Dimensions138*108*44 mm
Fan Quantity0
InstallationDesktop, Wall mounting installation, Rail installation
Surge ProtectionPort Surge: Common mode 4KV, Differential mode 2KV
Electrostatic ESD: Air 8KV, Contact 6KV (Class C)
Operating Temperature-40~75°C
Operation Humidity10%~90%, non condensing
V/G/E Modes ButtonsV: VLAN mode, ports 1-8 are isolated from each other, communicating with ports 9-10
G: Normal mode, all ports can communicate with each other, transmission distance
is within 100 meters, transmission rate is 10/100Mbps adaptive, ports 1-8
automatically activate the PoE watchdog mode
E: Extend mode, when the PoE port is in Extend mode, ports 1-8 force 10Mbps to extend the transmission distance to 250meters

Dimensions (mm)

Product structure
