L3 Managed Type Gigabit 52-Port PoE Switch
L3 Managed Type Gigabit 52-Port PoE Switch - Image 2
L3 Managed Type Gigabit 52-Port PoE Switch - Image 3
L3 Managed Type Gigabit 52-Port PoE Switch - Image 4

L3 Managed Type Gigabit 52-Port PoE Switch

HNM200-AFGM-SWTG3448S-800

● 48×10/100/1000Mbps PoE Ports & 4 x10Gigabit “SFP+” Ports

● Managed PoE switch with VLAN, QoS, IGMP Snooping v1/v2/v3, complete STP/RSTP/MSTP, SNMP v1/v2/v3 and DHCP management

● 100-240V AC 50/60Hz

Download the datasheet

Why You Want It

IEEE802.3af/at

Compliant with IEEE802.3af/at/bt (PoE/PoE+/PoE++), ports 1-4 support up to 90W. Meets IEEE 802.3/802.3i/802.3u/802.3ab/802.3z/802.3ae/802.3az/802.3x standards.

Full Layer 3 Management

Supports IPv4/IPv6 static routing, RIP, OSPF, VLAN (4K), QoS (8 queues), ACL, IGMP Snooping, DHCP, LLDP, port mirroring, and LACP (up to 8 groups).

 Redundant Ring Protocols

Supports STP/RSTP/MSTP (ERPS) for link backup and loop protection, plus loop detection/self-healing and 802.3ah OAM.

Smart PoE Management

PoE Watchdog, PoE schedule, and PoE port timer reboot – auto-maintenance, lower operational costs. Supports PoE temperature monitoring and PoE power AF/AT/BT adaptation.

Industrial-Grade Security & Protection

Supports 802.1x, AAA (RADIUS/TACACS+), ACL, DoS protection, DHCP Snooping, IP Source Guard, and DAI.Surge protection: Common mode 6KV, Differential 2KV；ESD protection: Contact 6KV / Air 8KV.

High-Performance 10G Uplink

4 x 10G SFP+ ports deliver 176Gbps switching capacity and 131Mpps forwarding rate, with 16Mbit packet buffer, 32K MAC table, and 12K jumbo frame.

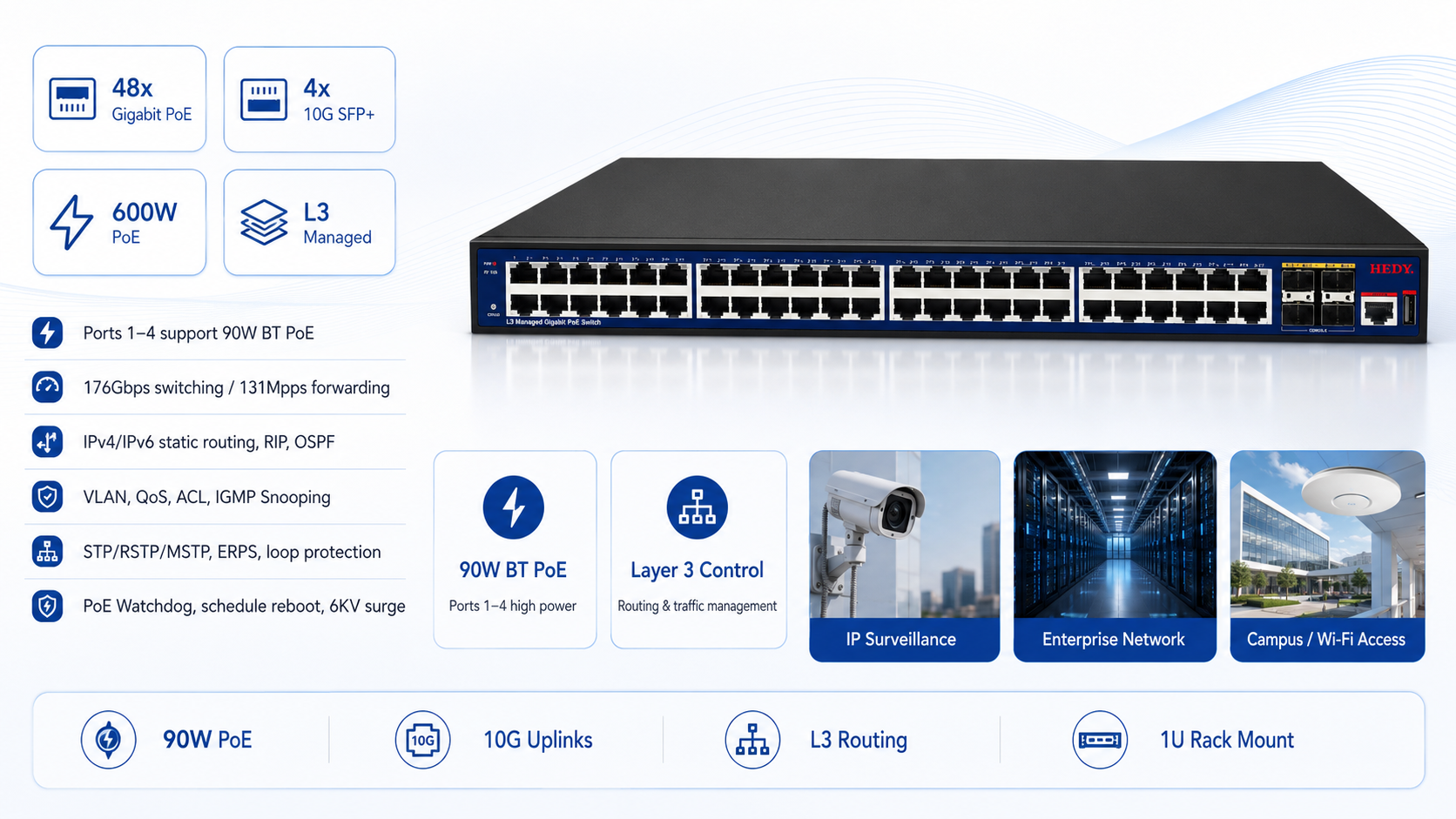

L3 Managed Type Gigabit 52-Port PoE Switch

Equipped with 48 x Gigabit PoE ports (600W, ports 1-4 support BT 90W), 4 x 10G SFP+, 1 x Console, and 1 x USB. Delivers 176Gbps switching capacity and 131Mpps forwarding rate. Supports L3 management (IPv4/IPv6 static routing, RIP, OSPF), VLAN (4K), QoS (8 queues), ACL, IGMP Snooping. STP/RSTP/MSTP (ERPS) with loop detection and 802.3ah OAM. PoE Watchdog + schedule + timer reboot. Surge protection: 6KV CM / 2KV DM. ESD: contact 6KV / air 8KV. IEEE 802.3az Energy Efficient Ethernet. 1U rack mountable.
L3 managed 52-port Gigabit PoE switch with 48 PoE ports, 4 10G SFP+ uplinks, 600W PoE budget, 90W BT PoE on ports 1-4, and 1U rack mounting.

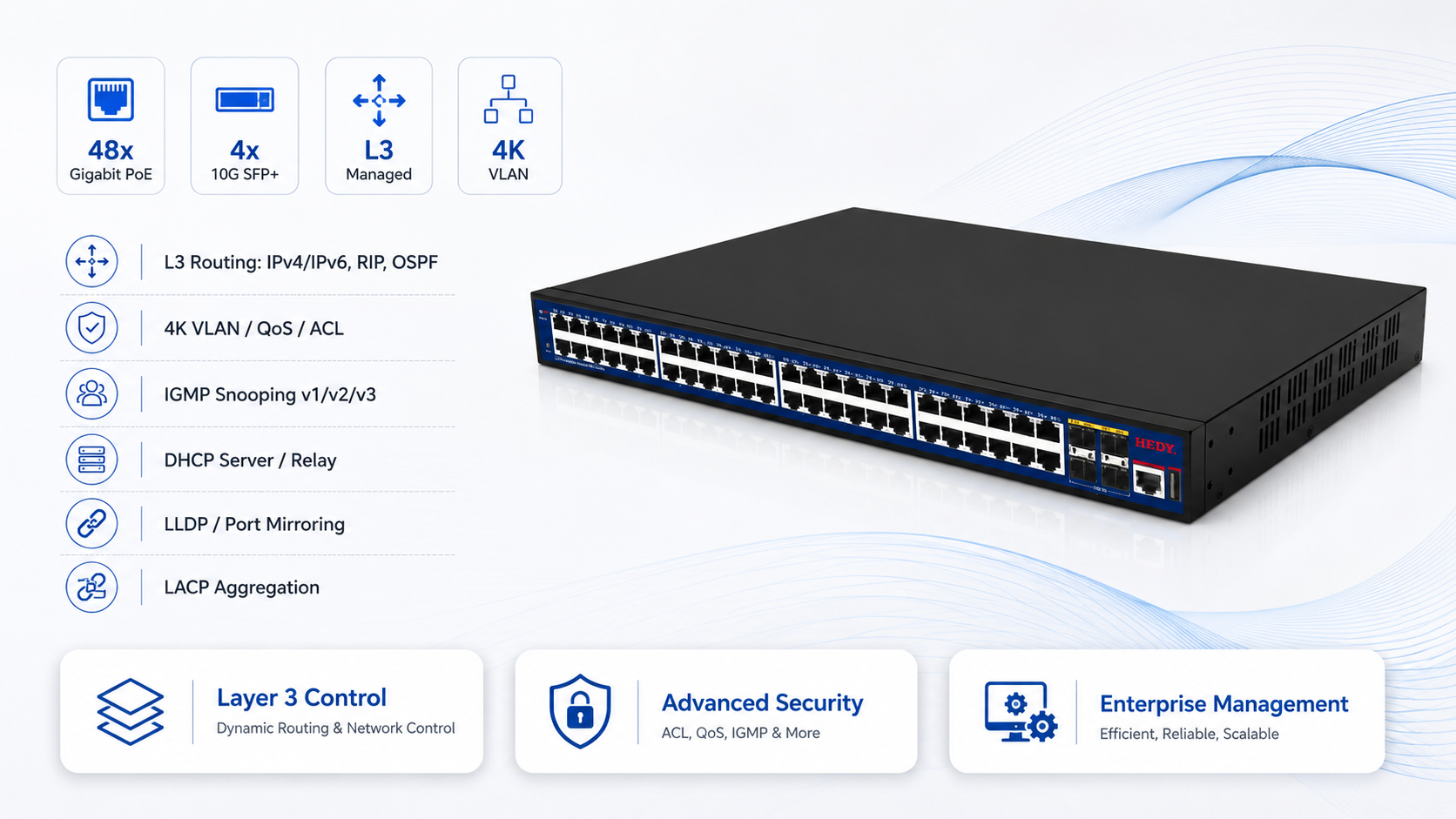

Rich Software Features

Supports L3 full management with IPv4/IPv6 static routing, RIP V1/V2, and OSPF for dynamic routing. Features VLAN (up to 4096), QoS (8 queues/port), ACL (MAC/IPv4/IPv6), and IGMP Snooping v1/v2/v3. Also supports DHCP Server/Relay, LLDP, port mirroring, and link aggregation (LACP, up to 8 groups) – ideal for enterprise, campus, and surveillance networks.
L3 managed PoE switch supporting IPv4 IPv6 routing, RIP, OSPF, 4K VLAN, QoS, ACL, IGMP Snooping, DHCP Server Relay, LLDP, port mirroring, and LACP aggregation.

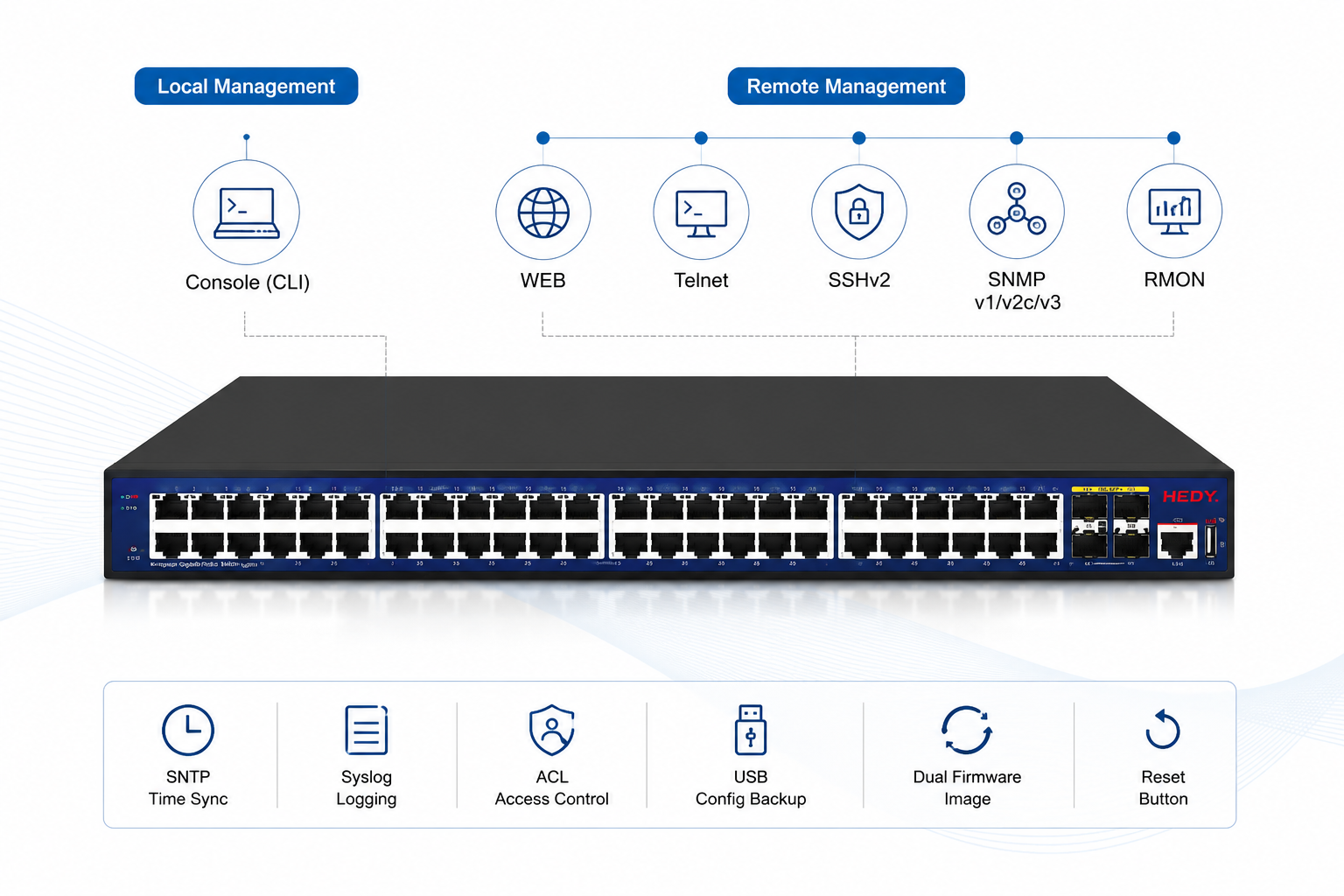

Local & Remote Management

Provides Console port for local CLI management, plus remote management via WEB, Telnet, SSHv2, SNMP v1/v2c/v3, and RMON. Supports SNTP time synchronization, Syslog logging, and Reset button. Admin access can be restricted via ACL for enhanced security. USB port supports configuration upload/backup. Dual firmware images allow swap between active and alternate firmware.
Managed PoE switch with Console CLI, WEB, Telnet, SSHv2, SNMP v1/v2c/v3, RMON, SNTP, Syslog, ACL admin access control, USB configuration backup, and dual firmware images.

Specification

I/O Interface
ModelHNM200-AFGM-SWTG3448S-800
Power InputAC100-240V/50-60Hz
Ethernet48* 10/100/1000Mbps POE Ports (Ports 1-4 support BT Power Supply)

4* 10G SFP+ Port

1* RJ45 Console Port

1* USB serial Port

Performance
Bandwidth176Gbps
Packet Forwarding Rate131Mpps
DDR SDRAM512MByte
Flash Memory32MByte
Buffer Memory16Mbit
MAC Address32K
Jumbo Frame12Kbytes
VLANs4096
MTBF100000 Hours
Function Indicator
IndicatorPWR (Power Indicator), SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator)
PWROn: Powered On；Off: Powered Off
SYSOn: System On

Flashing: System Off or Failed

Link/ACTOn: Link Connecting

Flashing: Data Transmitting

Off: Link Off

Physical Specification
Structure SizeProduct Dimensions: 440*360*44.5mm

Package Dimensions: 580*440*120mm

Product N.W: 5.30KG；Product G.W: 6.58KG

Power VoltageWorking Voltage: AC100-240V 50/60Hz

Power Supply: 52V 11.5A/ 12V 6A

Power ConsumptionPOE: POE Total Power<600W

Power Consumption: Machine<67.5W



【Software Function】

L3 Function
IPv4IPv4 VLAN Interface
IPv4 Static Routes
ARP
IPv6IPv6 VLAN Interface
IPv6 Static Routes
IPv6 ND
RIPV1/V2
OSPFRouter-ID
Authentication
L2 Function
PortPort Switch
Port Description
Port Speed
Port Duplex
Port Flow Control
Jumbo, Up to 10K
Support 10G/2.5G (2023.3.2)
 Fiber Module(DDM)
Link AggregationSupports load balance policy;
Base on MAC and IP-MAC
Static and Dynamic Group
Supports LACP
Up to 8 groups
Storm ControlBoardcast
Unknown Multicast
Unknown Unicast
Port MirroringOne to one monitor
Many to one monitor
Ingress/Egress/Both
Up to 4 session groups
Port SecurityMAC Address Constraints
Port Security MAC Address
Protect/Restrict/Shutdown
Port Isolation
Port Rate-limit
Loopback Detection
VLANAccess/Trunk/Hybrid
VLAN Tunnel （Q-in-Q Tunnel）
Congurable VID from 1 – 4094;
Max. 4K static VLAN groups
Voice VLAN
MAC VLAN
Surveillance VLAN
协议VLAN / Protocol VLAN
GVRP
MAC AddressDynamic Address
Static Address
Filtering Address
Spnning Tree ProtocolSTP/RSTP/MSTP
BPDU Filter
BPDU Guard
Edge Port
LLDPLLDP
LLDP MED
MulticastIGMP Snnoping
IGMP V1/V2/V3
Router Port
Static IGMP group address
IGMP groups filtering
Querier
MLD Snooping
MVR
QoSTraffic classification based, Strict priority and WRR
Port Priority
802.1P Priority
IP TOS Priority
IP DSCP Priority
Supports up to 8 queues per port
Priority Remarking
PoE
PoE ConfigurationPoE Temperature
PoE Type/Level/Power/Voltage/Current
PoE Switch
PoE Watchdog
PoE power AF/AT adaptation
IEEE 802.3bt，compatible with IEEE 802.3af/802.3at PoE
PoE Schedule
PoE Port Timer Reboot
Services
DHCPDHCP Server
IP Pool
Static Binding
DHCP Relay
Option 43
Access ProtocolHTTP
HTTPS
Telnet
SSHv2
Manager ACL
Session Timeout
Password Retry Count
Silent Time
Security
AAARADIUS
TACACS+
802.1X
Base on port/MAC/local/WEB
DHCP SnoopingGlobal/VLAN
Option 82
Circuit ID
IP Source Guard
Dynamic ARP Inspection
DoS
ACLMAC ACL
IPv4 ACL
IPv6 ACL
Diagnostics
SyslogLogging Message
Remote Server
Ping
Traceroute
Copper Test
UDLD
Managemnet
Manager AccessConsole
HTTP/HTTPS
Telnet
SSH
SNMP
Manager IPStatic Address
DHCP Client
Supports IPv4 and IPv6 address
Manager VLAN
DNS
Time SynchronizationSNTP
Manual Time
SNMPV1/V2C/V3
Community
V3 User
Group
Trap Host
SNMP MIBRFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2863 Interface MIB
LLDP
Private MIB
RMONStatistics
History
Event
Alarm
User
FirmwareDouble Image; Swap between Active and Alternate firmware image.
Firmware Upgarde
ConfigurationUpload and download
Upload and download via USB interface

Dimensions (mm)

Product structure
