5-Port Gigabit PoE Switch
5-Port Gigabit PoE Switch - Image 2
5-Port Gigabit PoE Switch - Image 3

5-Port Gigabit PoE Switch

HY4G1G-48

● 4×10/100/1000Mbps PoE Ports & 1 Gigabit Ports

● VLAN Supported

● 100-240V AC 50/60Hz

Download the datasheet

Why You Want It

IEEE 802.3af/at

Compliant with IEEE 802.3af/at PoE devices and meets IEEE 802.3, 802.3u, and 802.3x standards for reliable performance.

Support VLAN, Extend Modes

● VLAN: Port isolation to block broadcast storms.
● Extend: 250m transmission at 10Mbps over UTP.

Surge & ESD Protection

Port surge protection: common mode 4KV, differential mode 2KV. Electrostatic ESD protection: air 8KV, contact 6KV.

Plug and Play

Supports desktop installation with a plug-and-play design for easy deployment.

Flow control method

Supports both Full Duplex (IEEE 802.3x) and Half Duplex (Back Pressure) flow control methods.

Auto MDI/MDIX

Support Automatic port flipping eliminates the need for crossover cables, simplifying setup. Utilizes a store-and-forward switching mechanism

Gigabit Desktop PoE for High-Bandwidth Needs

HY4G1G-48 is a 5-port switch with 4 Gigabit PoE ports and 1 Gigabit uplink designed for reliable network performance. It comply with IEEE 802.3, 802.3u, and 802.3x standards. Supporting IEEE 802.3af/at , supporting 10/100/1000Mbps adaptive speeds. It’s perfect for small networks needing fast file transfers it enables flexible power delivery for connected devices.

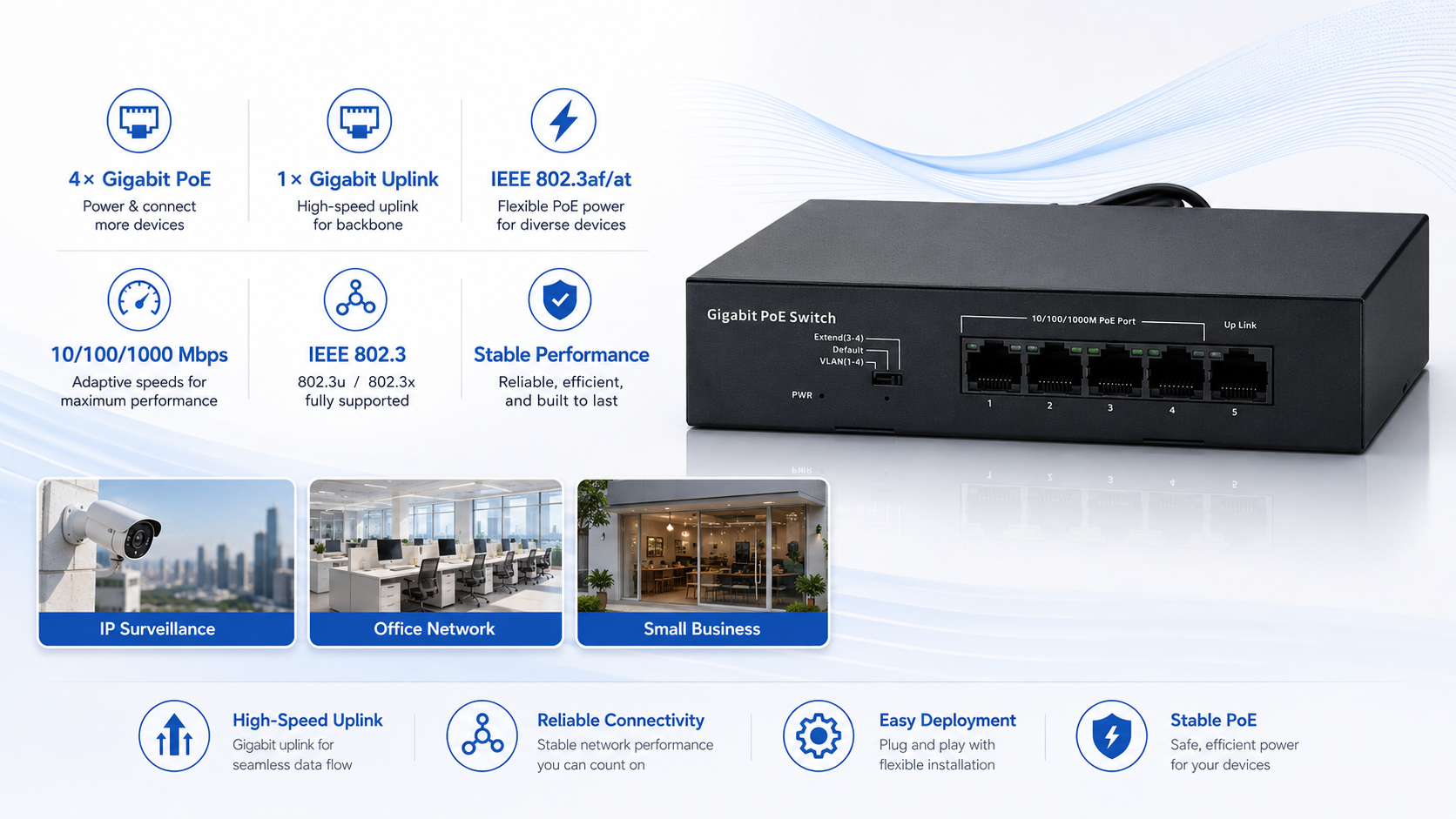

Desktop Gigabit PoE switch with 4 Gigabit PoE ports, 1 Gigabit uplink, IEEE 802.3af/at support, adaptive 10/100/1000Mbps speeds, and reliable performance for small networks.

Long-Range & Plug-and-Play PoE Switch

HY4G1G-48 is a truly plug-and-play unmanaged PoE switch, offers three operation modes: VLAN, Default, and Extend mode, which extends transmission distance up to 250 meters at 10Mbps, ensuring enhanced durability. Operating in temperatures of 0°C to 40°C, Its compact size and silent operation suit home offices, small retail stores, and gigabit-speed surveillance.

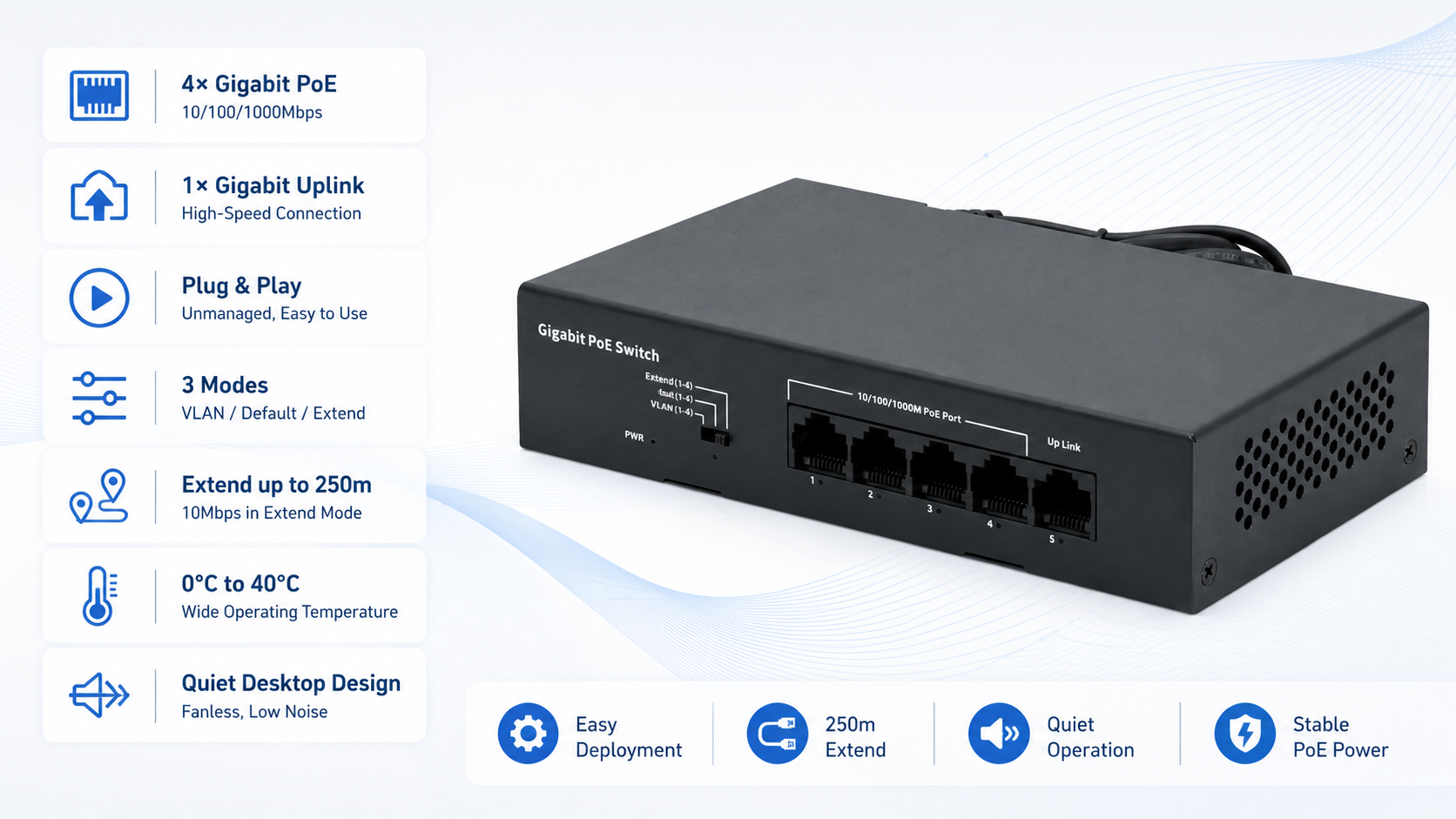

Unmanaged desktop Gigabit PoE switch with plug-and-play setup, VLAN default and extend modes, up to 250 meter PoE transmission, quiet operation, and compact design for small office and surveillance use.

Specification

ModelHY4G1G-48
ProductPoE Switch
PoE Port4, 1000Mbps;  RJ45 ports; Max. 30W Output of Single PoE Port

Transmission distance:0~100m or 0~250m selected by switch

Uplink Port1, 1000Mbps; Transmission Distance: Defaulf: 0-100m
Network ProtocolIEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE802.3x
Switching Capacity10Gbps Full duplex
Packet Forwarding Rate7.44Mpps
Forwarding ModeStore-and-forward
Packet Buffer3Mbit
MAC Address Table2K
VlanSupport
WatchdogSupport
PoE StandardIEEE802.3af, IEEE802.3at
Transmission Distance0-100m/1000Mbps or Port 3-4 Max. 250m/10Mbps via Cat.5e or more under Extend mode
PoE FeatureAll ports support MDI/MDIX
Power SourceBult-in Power Supply
Input: 100-240V AC, 50/60Hz
PoE Power Budget48W
Power Consumption<5W
Working Temperature0℃-40℃
Storage Temperature-40℃-70℃
Working Humidity10%-90% , non-condensing
Storage Humidity5%-90% , non-condensing
ColorBlack
Weight0.401kg
Dimension(L×W×H)160*90*35mm

Dimensions (mm)

Product structure
Application topology
