5-Port Megabit Waterproof 60W POE Extender
POEET-OB-MB-1T4
● 1xFE 60W PoE In+4xFE 30W PoE Out
● Bandwidth：1Gbps
● Hardware Features：Extend
● Surge Protection：Port Surge: Differential Mode 4KV
● Working Temperature：0℃～40℃
Why You Want It
4KV Port Surge protection
Guards against voltage surges for stable outdoor use.
Supports Hi-PoE Input
Accepts high-power PoE input for wider compatibility.
4x100Mbps 802.3af/at PoE Output
Provides 100Mbps PoE power & data for four surveillance devices.
Support Extend Mode
Ends PxteoE transmission distance for long‑range monitoring.
Multiple Cascades
Extends PoE transmission distance via multi-stage connection.
Wall-mounted Installation
Enables space-saving, easy on-site mounting.

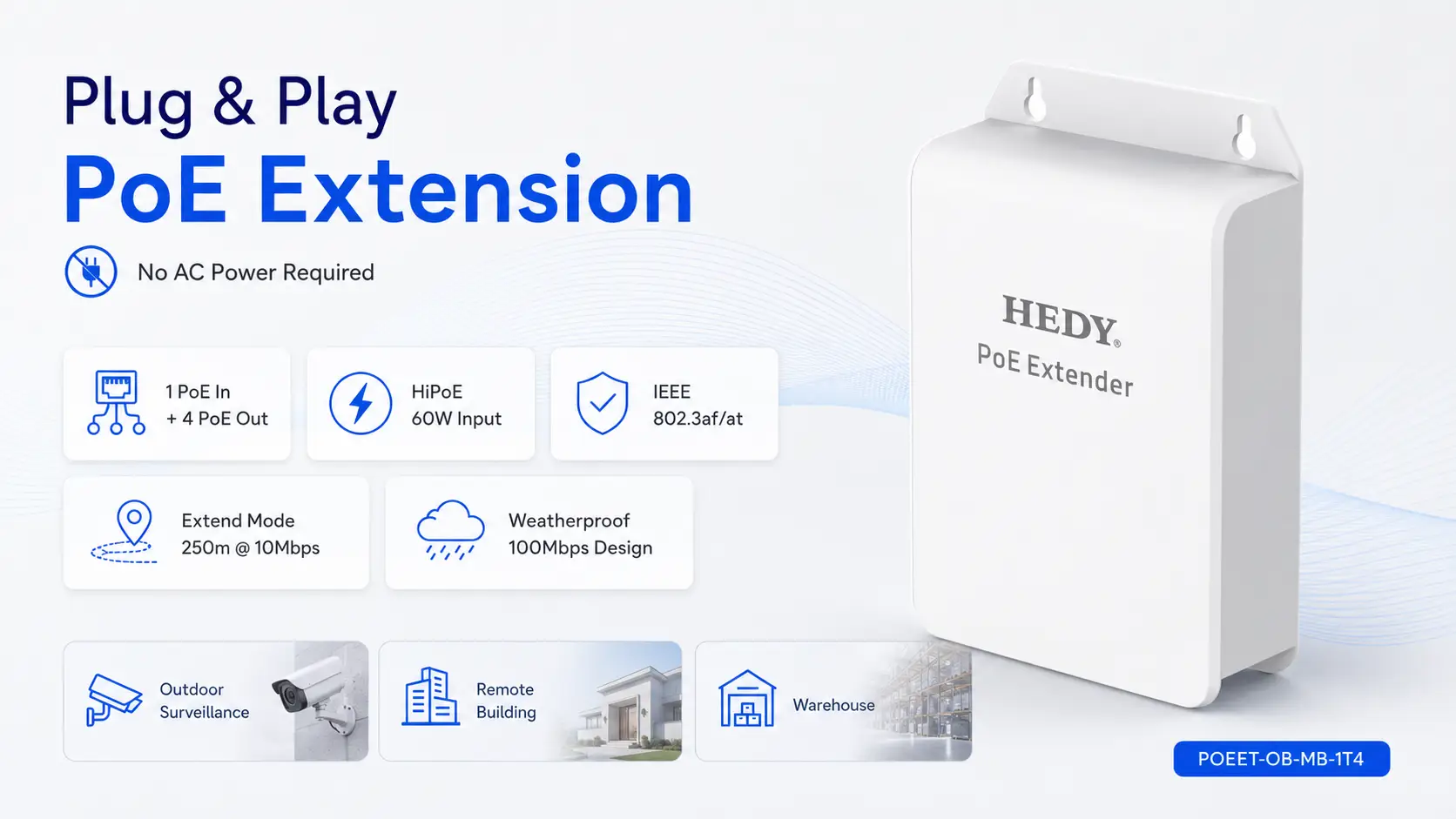

Plug and Play PoE Extension, No AC Power Required
POEET-OB-MB-1T4 is a rugged, reliable, and simply weatherproof 100Mbps PoE extender. No AC power or rewiring is required, enabling plug and play for immediate deployment. It features 1 PoE input and 4 PoE output ports, supports HiPoE 60W input, and complies with IEEE802.3af/at. With Extend mode enabled, transmission distance reaches 250 meters (10Mbps).

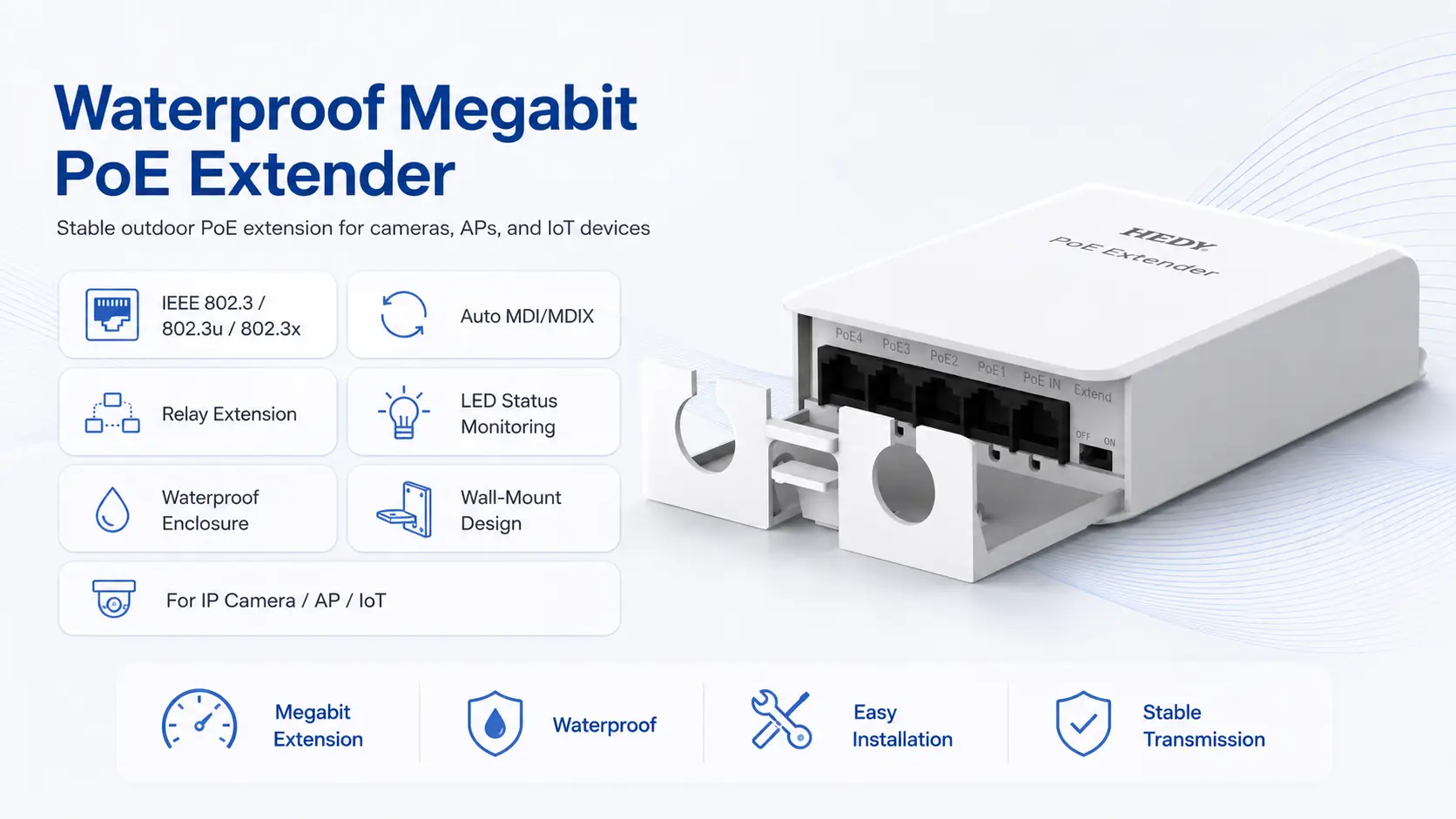

Standard‑Compliant Waterproof Megabit
Compliant with IEEE 802.3/802.3u/802.3x, the extender supports Auto MDI/MDIX and relay extension. LED indicators facilitate fault analysis. Encased in a waterproof enclosure, it withstands harsh environments. Ideal for IP cameras, access points, and IoT devices, it is wall mountable for flexible installation.

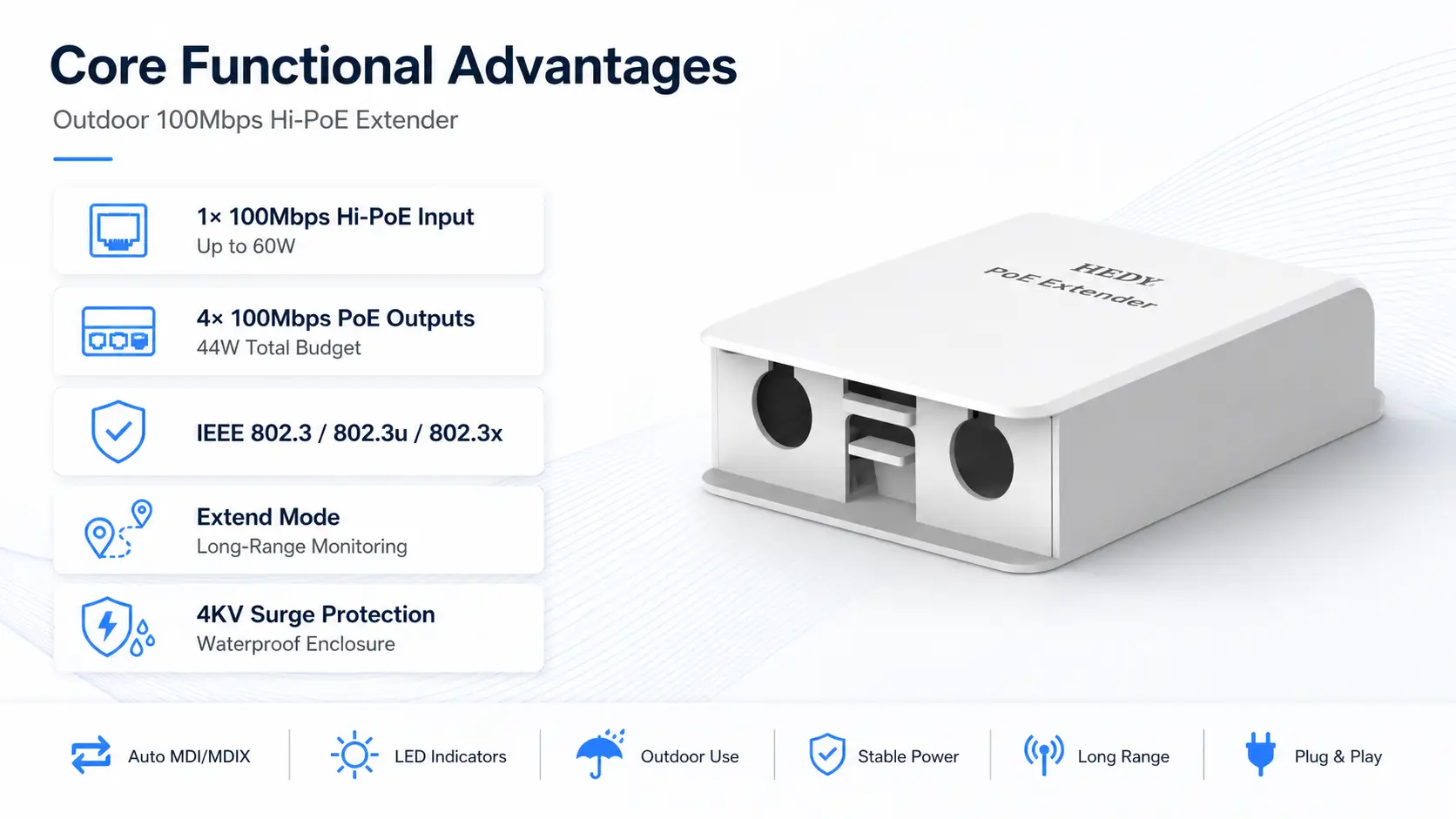

Core Functional Advantages
● High-Power Input: 1x100Mbps Hi-PoE input port supporting 60W total power
● Multiple Output Ports: 4x100Mbps PoE output ports compliant with IEEE 802.3af/at, providing a 44W total power budget
● Standards Compliance: Fully complies with IEEE 802.3, 802.3u, and 802.3x standards for reliable megabit performance
● Auto-MDI/MDIX: Simplifies installation with automatic port configuration
● Extend Mode Support: Extends PoE transmission distance for long‑range monitoring
● LED Status Indicators: Enables quick monitoring and troubleshooting
● Durable Protection: Offers 4KV surge protection for stable outdoor operation
● Waterproof Enclosure: Designed for durable, long-term outdoor deployment
Specification
| Model | POEET-OB-MB-1T4 |
| Interface | 1*100Mbps PoE in port 4*100Mbps PoE out ports |
| Port Standard | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control) |
| Switching Bandwidth | 1Gbps |
| Packet Forwarding Rate | 0.744Mpps |
| MAC Address Table | 2K |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af (15.4W) IEEE802.3at (30W) |
| PoE Port Output Voltage | DC 44-57V |
| PoE Ports | Port PoE out <30W |
| PoE Power Budget | 44W |
| Power Supply | IEEE802.3af/at/HiPoE |
| Mainboard Power Consumption | 1.59W |
| Structure Information | Product Dimensions: 146.6*97*34.5mm Packaging Dimensions: 102*152*36mm Product Net Weight: 0.15KG Product Gross Weight: 0.17KG |
| Packing Information | Carton Dimensions: 375*335*220mm Packing Quantity: 40PCS Packing Weight: 8.04KG |
| Installation | Desktop, Wall mounting installation |
Dimensions (mm)
