4-Port Gigabit 30W POE Extender
4-Port Gigabit 30W POE Extender - Image 2
4-Port Gigabit 30W POE Extender - Image 3
4-Port Gigabit 30W POE Extender - Image 4

4-Port Gigabit 30W POE Extender

POEET-IA-GB-1T3

● 1xGE 30W PoE In+3xGE 30W PoE Out
● Bandwidth：8Gbps
● Hardware Features：VLAN
● Surge Protection：Port Surge: Differential Mode 4KV
● Working Temperature:：0℃～40℃

Download the datasheet

Why You Want It

4KV Port Surge protection

Guards against voltage surges for stable outdoor use.

3x1Gbps PoE 802.3af/at PoE Output

Guards against voltage surges for stable outdoor use.

VLAN Port Isolation

Reduces signal interference and enhances network security.

Multiple Cascades

Extends PoE transmission distance via multi-stage connection.

Multiple Installation Options

Supports desktop, wall‑mounted and rail mounting for flexible deployment.

LED Status Indicators

Enables quick monitoring and troubleshooting.

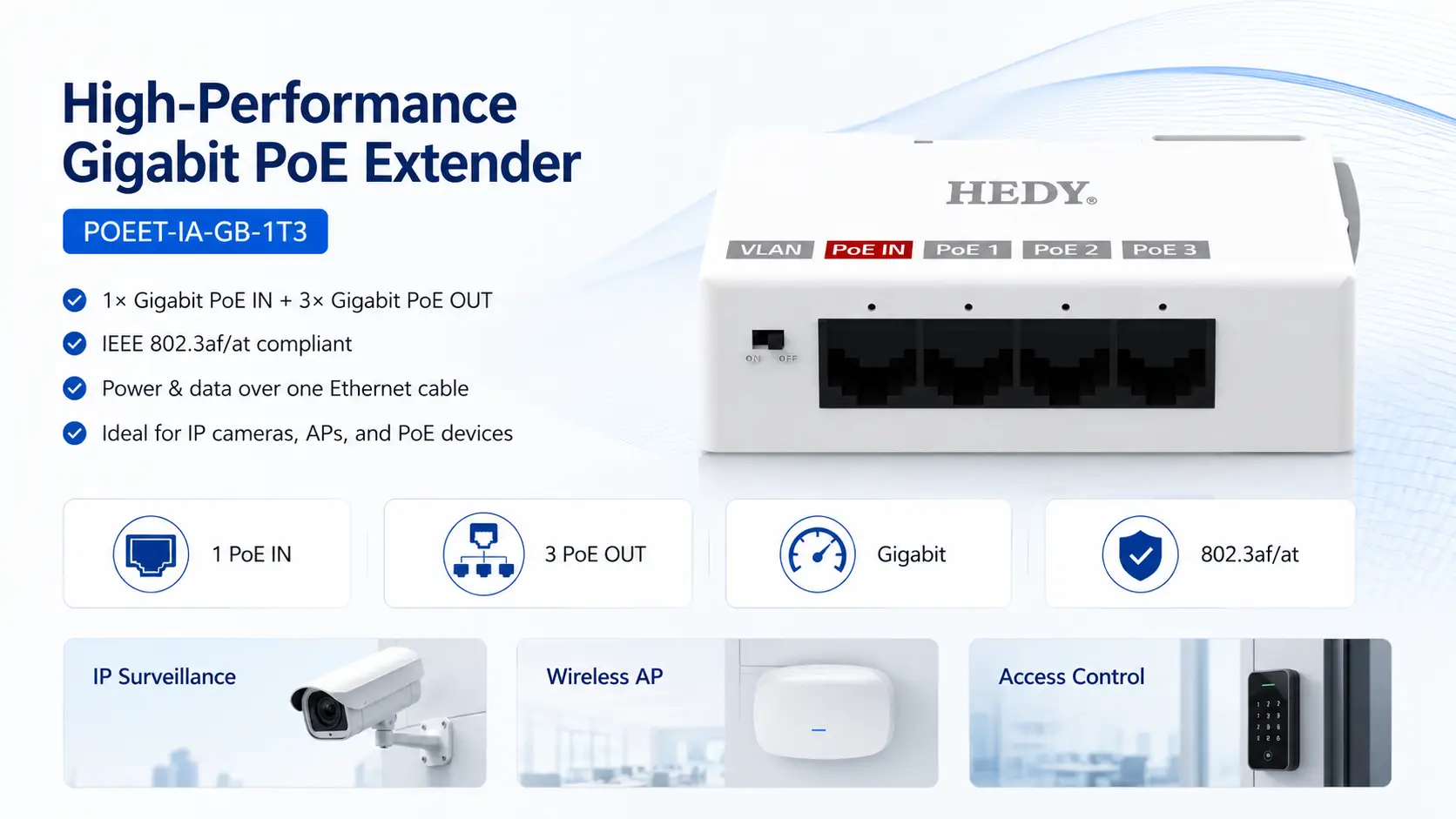

High-performance Gigabit PoE Extender

POEET-IA-GB-1T3 delivers robust performance with exceptional value. Designed for efficient network and IP surveillance deployment, this extender features 1xGigabit PoE IN port and 3xGigabit PoE OUT ports, extending both power and data over a single Ethernet cable — reducing cabling costs while simplifying installation. Supporting IEEE 802.3af/at PoE standards, it provides stable power and Gigabit connectivity for IP cameras, access points, and other PoE-powered devices.
POEET-IA-GB-1T3 high-performance Gigabit PoE extender with 1 Gigabit PoE input, 3 Gigabit PoE outputs, IEEE 802.3af/at support, power and data over one Ethernet cable, ideal for IP cameras, wireless APs, and PoE devices.

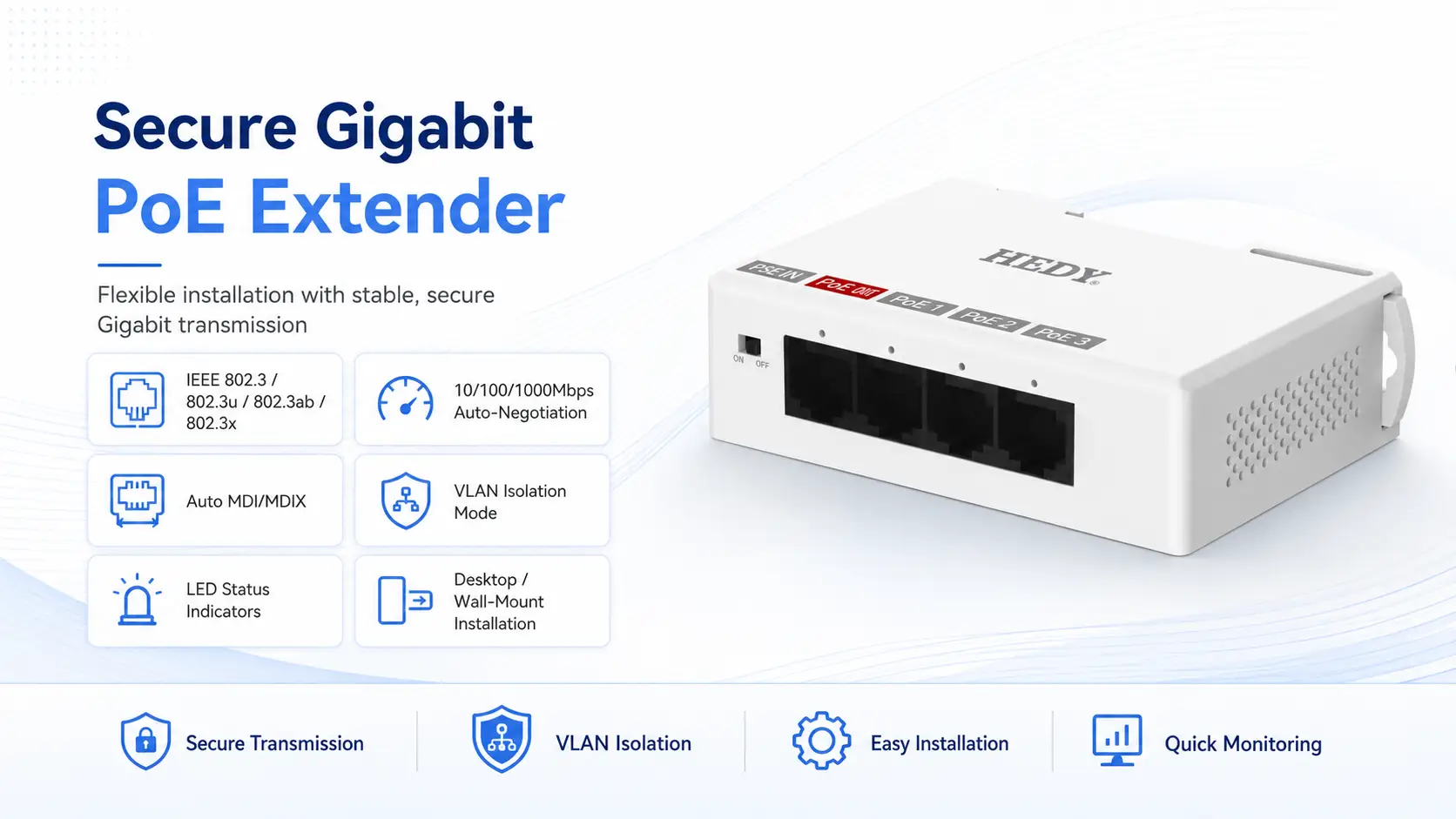

Secure Gigabit PoE Extender with Flexible Installation

Compliant with IEEE 802.3/802.3u/802.3ab/802.3x standards, the extender supports 10/100/1000Mbps auto-negotiation, Auto MDI/MDIX, and VLAN mode for traffic isolation and enhanced security. Real-time LED status indicators enable quick fault analysis. With flexible desktop or wall-mount installation, this extender is ideal for hotels, campuses, warehouses, and large-scale surveillance deployments.
POEET-IA-GB-1T3 secure Gigabit PoE extender with IEEE 802.3, 802.3u, 802.3ab, and 802.3x compliance, 10/100/1000Mbps auto-negotiation, Auto MDI/MDIX, VLAN mode, LED indicators, and desktop or wall-mount installation.

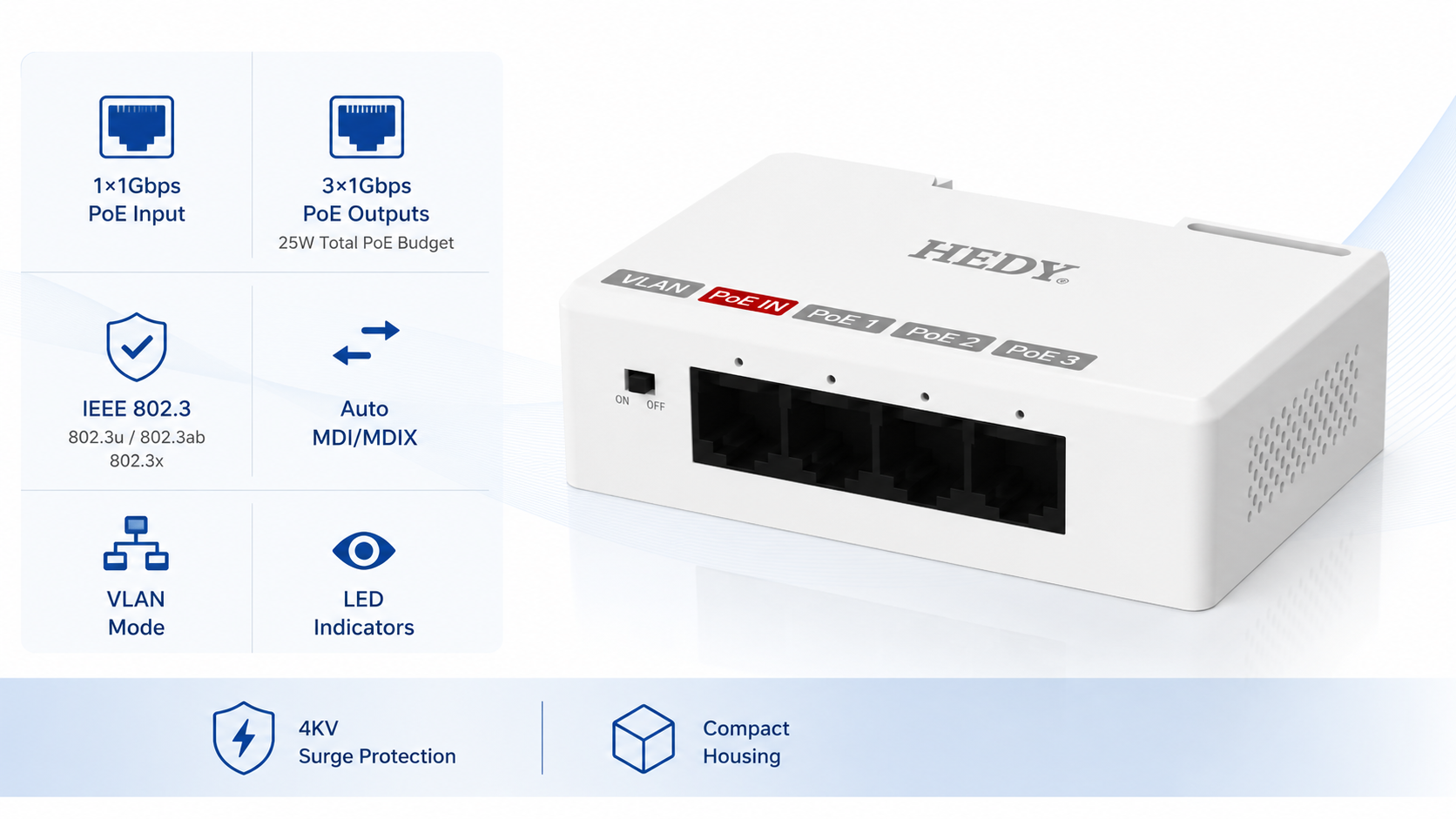

Core Functional Advantages

● Input: 1x1Gbps PoE input port
● Multiple Output Ports: 3x1Gbps PoE output ports compliant with IEEE 802.3af/at, providing a 25W total power budget
● Standards Compliance: Fully complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards for reliable gigabit performance
● Auto-MDI/MDIX: Simplifies installation with automatic port configuration
● VLAN Mode Support: Enhances network segmentation and transmission stability
● LED Status Indicators: Enables quick monitoring and troubleshooting
● Durable Protection: Offers 4KV surge protection for stable indoor operation
● Compact Housing: Designed for flexible, long‑term indoor deployment
POEET-IA-GB-1T3 compact Gigabit PoE extender with 1Gbps PoE input, 3Gbps PoE outputs, 25W total PoE budget, IEEE 802.3af/at support, VLAN mode, Auto MDI/MDIX, LED status indicators, 4KV surge protection, and reliable indoor deployment.

Specification

ModelPOEET-IA-GB-1T3
Interface1*1Gbps PoE in port

3*1Gbps PoE out ports

Port StandardIEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab (Gigabit Ethernet)

IEEE802.3x (Flow Control)

Switching Bandwidth8Gbps
Packet Forwarding Rate5.952Mpps
MAC Address Table2K
Transmission MethodStore and Forward
PoE StandardIEEE802.3af (15.4W)

IEEE802.3at (30W)

PoE Port Output VoltageDC 44-57V
PoE PortsPort PoE out <30W
PoE Power Budget25W
Power SupplyIEEE802.3af/at
Mainboard Power Consumption1.59W
Structure InformationProduct Dimensions: 96*66.5*28mm

Packaging Dimensions:  100*72*31mm

Product Net Weight: 0.078KG

Product Gross Weight: 0.091KG

Packing InformationCarton Dimensions:  375*335*220mm

Packing Quantity: 100PCS

Packing Weight: 10.1KG

InstallationDesktop, Wall mounting installation, Rail installation

Dimensions (mm)

Product structure
