4-Port Gigabit Waterproof 30W POE Extender
POEET-OA-GB-1T3
● 1xGE 30W PoE In+3xGE 30W PoE Out
● Bandwidth：8Gbps
● Hardware Features：VLAN
● Surge Protection：Port Surge: Differential Mode 4KV
● Working Temperature:：0℃～40℃
Why You Want It
4KV Port Surge protection
Guards against voltage surges for stable outdoor use.
3x1Gbps 802.3af/at PoE Output
Provides gigabit PoE power & data for three surveillance devices.
VLAN Port Isolation
Reduces signal interference and enhances network security.
Multiple Cascades
Extends PoE transmission distance via multi-stage connection.
Wall-mounted Installation
Enables space-saving, easy on-site mounting.
LED Status Indicators
Enables quick monitoring and troubleshooting

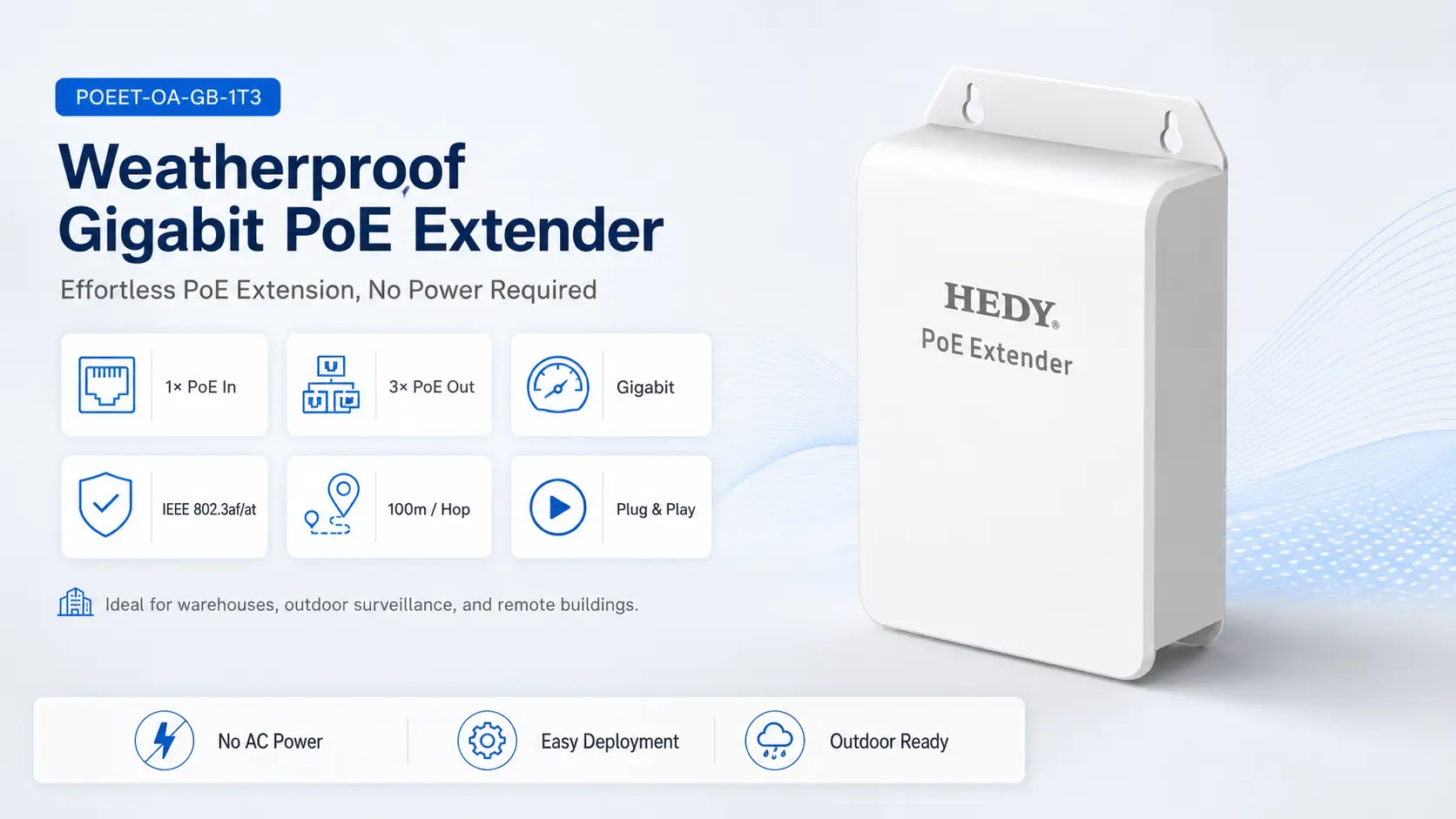

Effortless PoE Extension, No Power Required
POEET-OA-GB-1T3 is a Weatherproof Gigabit PoE extender that requires no AC power or rewiring. Simply plug and play to extend both network and PoE coverage instantly. Featuring 1xPoE input and 3xPoE output ports, it supports IEEE802.3af/at standards (44-57V input, max 30W input) and delivers up to 100m transmission distance per hop. Ideal for warehouses, outdoor surveillance, or remote buildings—no complex setup needed.

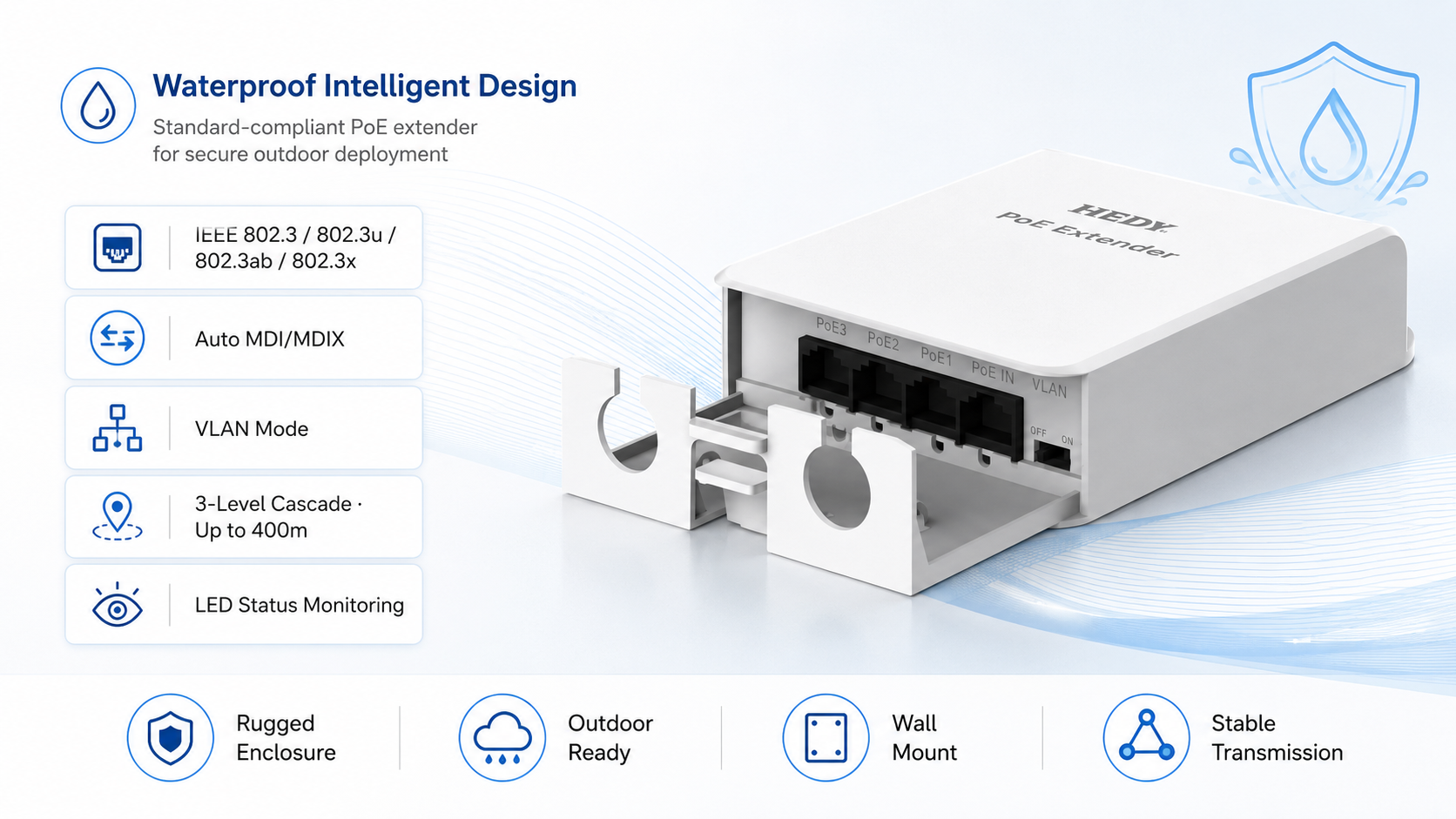

Standard‑Compliant Waterproof Intelligent
Compliant with IEEE 802.3/802.3ab/802.3u/802.3x standards, the extender supports Auto MDI/MDIX, VLAN mode for secure network segmentation, and three-level cascade for extended reach up to 400m. Housed in a rugged, unibody enclosure, it withstands harsh outdoor environments. LED indicators provide real-time status monitoring. Perfect for IP cameras, access points, and IoT devices—wall-mountable for flexible deployment.

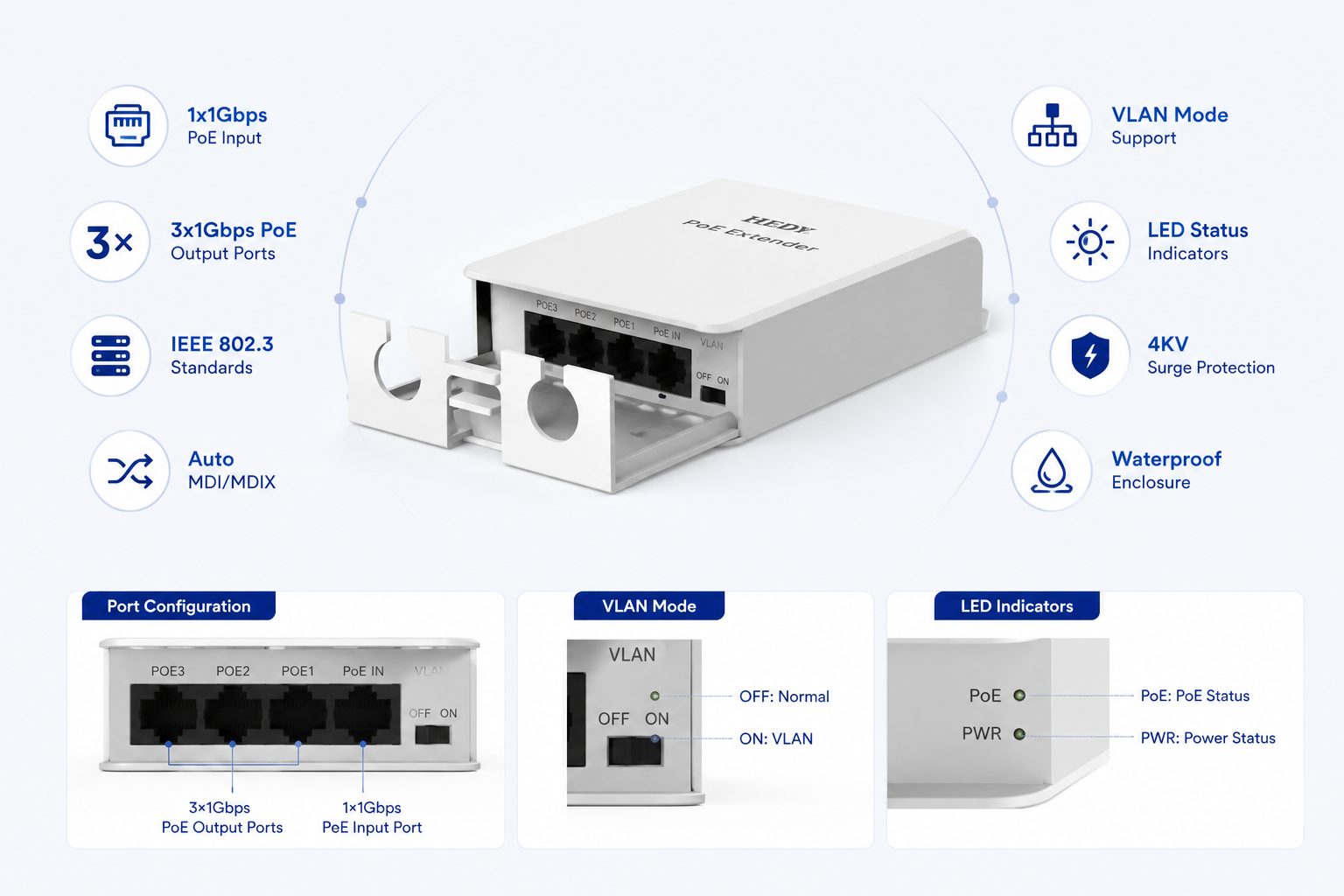

Core Functional Advantages
● Input: 1x1Gbps PoE input port
● Multiple Output Ports: 3x1Gbps PoE output ports compliant with IEEE 802.3af/at, providing a 25W total power budget
● Standards Compliance: Fully complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards for reliable gigabit performance
● Auto-MDI/MDIX: Simplifies installation with automatic port configuration
● VLAN Mode Support: Enhances network segmentation and transmission stability
● LED Status Indicators: Enables quick monitoring and troubleshooting
● Durable Protection: Offers 4KV surge protection for stable outdoor operation
● Waterproof Enclosure: Designed for durable, long-term outdoor deployment
Specification
| Model | POEET-OA-GB-1T3 |
| Interface | 1*1Gbps PoE in port 3*1Gbps PoE out ports |
| Port Standard | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) |
| Switching Bandwidth | 8Gbps |
| Packet Forwarding Rate | 5.952Mpps |
| MAC Address Table | 2K |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af (15.4W) IEEE802.3at (30W) |
| PoE Port Output Voltage | DC 44-57V |
| PoE Ports | Port PoE out <30W |
| PoE Power Budget | 25W |
| Power Supply | IEEE802.3af/at |
| Mainboard Power Consumption | 1.59W |
| Structure Information | Product Dimensions: 146.6*97*34.5mm Packaging Dimensions: 102*152*36mm Product Net Weight: 0.15KG Product Gross Weight: 0.17KG |
| Packing Information | Carton Dimensions: 375*335*220mm Packing Quantity: 40PCS Packing Weight: 8.04KG |
| Installation | Desktop, Wall mounting installation |
Dimensions (mm)
