8-port Gigabit Ethernet switch
EW-08G-5W-EP
● 8×10/100/1000Mbps RJ45 ports
● Power Input: DC5V1A
● Enclosure: Metal housing
● Performance: 16Gbps bandwidth
Why You Want It
8 × 1000Mbps Gigabit RJ45 ports
Provides eight auto-sensing 10/100/1000 Mbps Ethernet ports.
High bandwidth capacity
Delivers a switching capacity of 16 Gbps (non-blocking), ensuring full-duplex data transmission across all ports simultaneously.
Compliant with multiple IEEE standards
Meets IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3az (Energy Efficient Ethernet) standards.
Auto-negotiation and Auto MDI/MDIX
Supports 10/100/1000M self-adaptive speed negotiation and automatic port flipping, eliminating crossover cable concerns.
Flow control mechanism
Implements IEEE802.3x flow control for full-duplex mode and Backpressure flow control for half-duplex mode.
Desktop installation design
Compact form factor suitable for desktop placement; fanless design for silent operation.

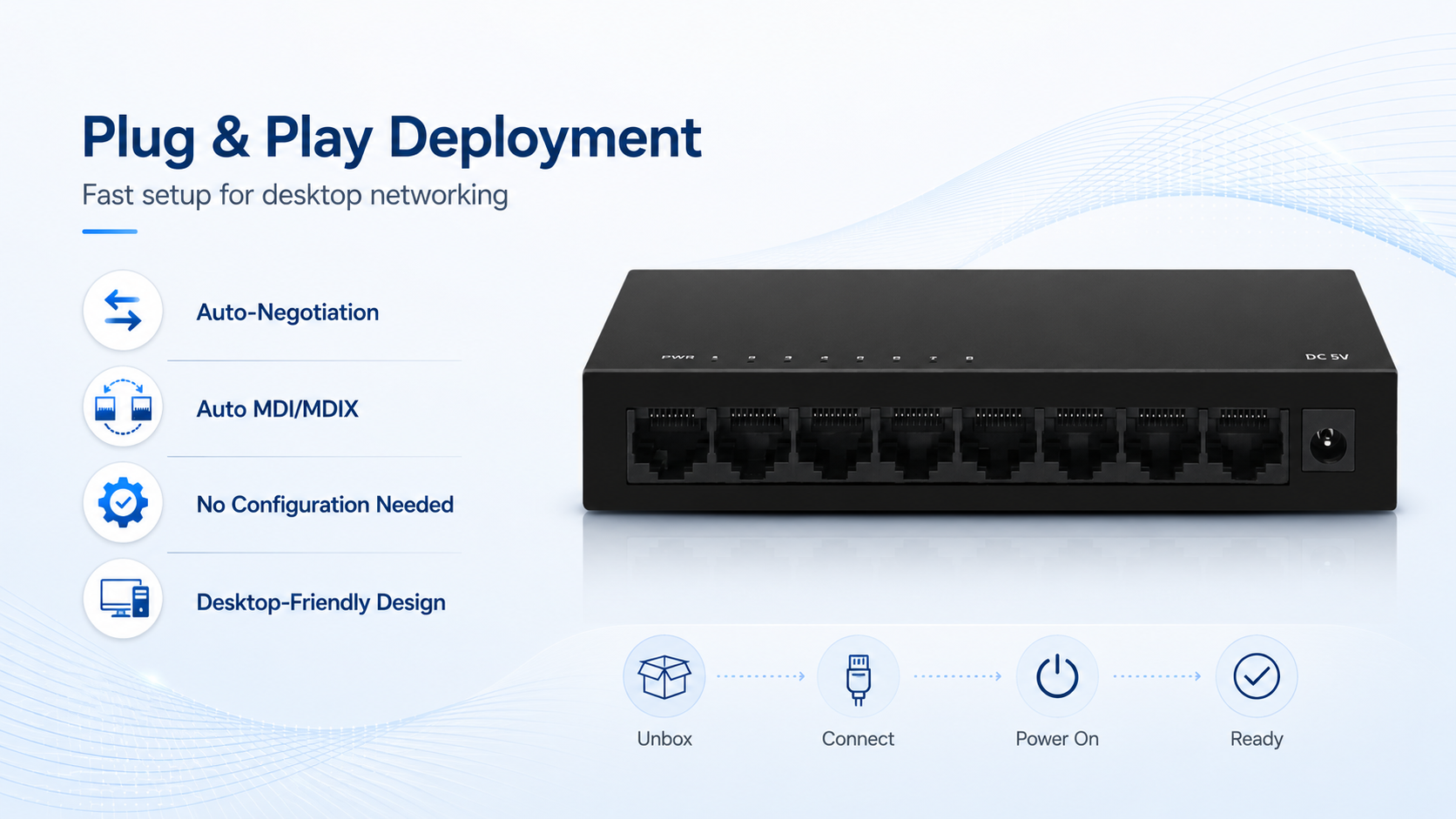

Plug-and-play, easy deployment
Desktop-friendly design, auto-negotiation, and Auto MDI/MDIX allow simple setup without configuration.

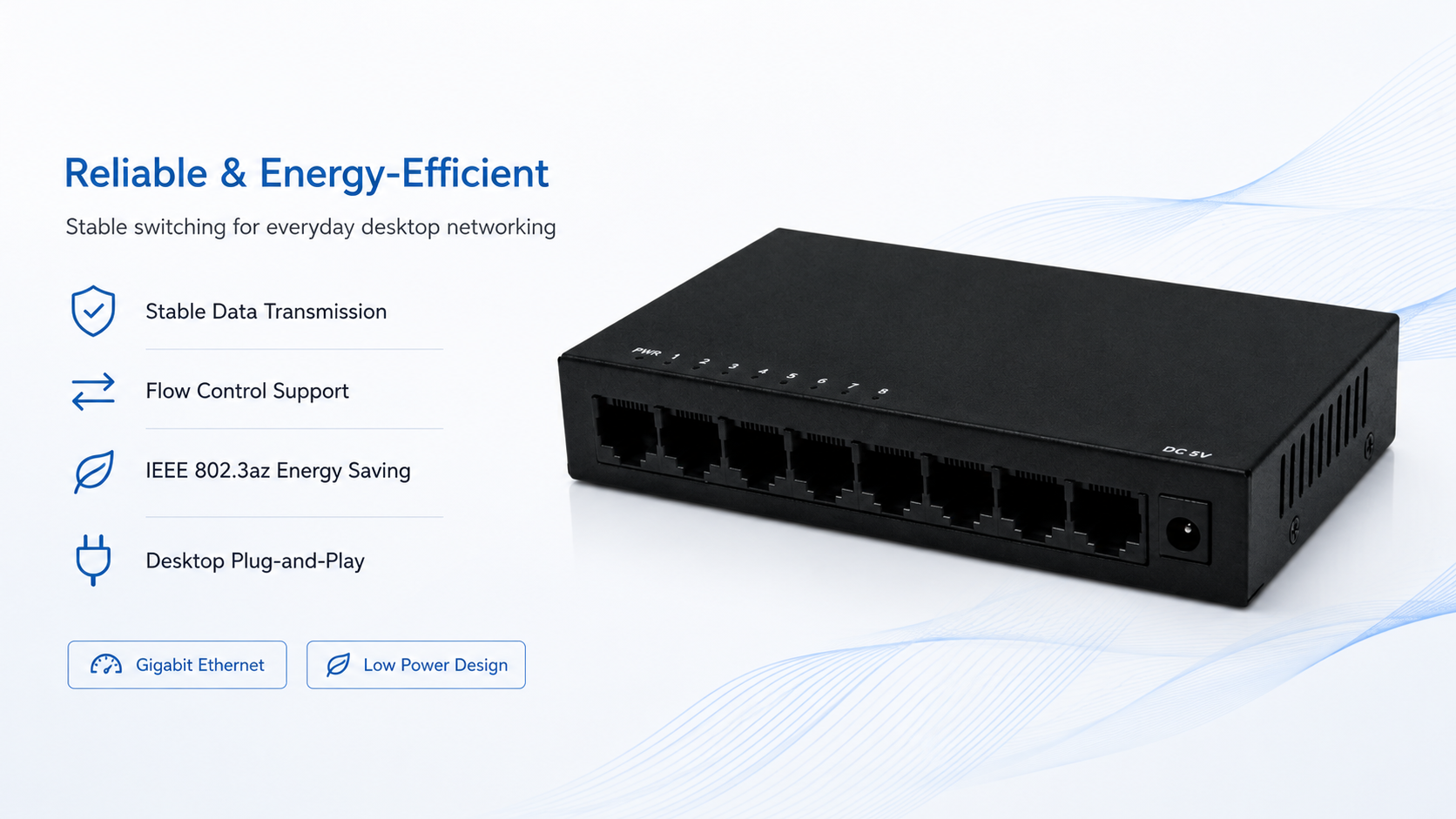

Reliable and energy-efficient performance
High switching capacity, flow control, and IEEE802.3az energy-saving features ensure stable data transmission with reduced power consumption.
Specification
| Model | EW-08G-5W-EP |
| Interface | 8*1Gbps RJ45 ports |
| Port Standard | IEEE802.3 (Ethernet) |
| IEEE802.3u (Fast Ethernet) | |
| IEEE802.3x (Flow Control) | |
| IEEE802.3ab (Gigabit Ethernet) | |
| IEEE802.3az(Energy Efficient Ethernet) | |
| Switching Bandwidth | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| Packet Buffer | 4Mbit |
| MAC Address Table | 8K |
| Transmission Method | Store and Forward |
| Power Supply | AC 100-240V, 50/60Hz |
| DC 5V 1A | |
| Mainboard Power Consumption | 3.77W |
| Structure Information | Product Dimensions: 138*78*25mm |
| Product Net Weight: 0.24Kg | |
| Package Contents | Switch 1pcs, Ac adapter 1pcs, Manual 1pcs, Certificate of Inspection 1pcs |
| Fan Quantity | 0 |
| Installation | Desktop |
| Surge Protection | Port Surge: Common mode 2KV, Differential mode 1KV (Class A) |
| Electrostatic ESD: Air 4KV, contact 3KV (Class C) | |
| Operating Temperature | 0~40°C |
| Storage Temperature | -40~70°C |
| Operation Humidity | 10%~90%, non condensing |
| Storage Humidity | 5%~95%, non condensing |
Dimensions (mm)
