16-port Gigabit Ethernet switch
16-port Gigabit Ethernet switch - Image 2
16-port Gigabit Ethernet switch - Image 3
16-port Gigabit Ethernet switch - Image 4

16-port Gigabit Ethernet switch

EW-16G-12W-IP

● 16×10/100/1000Mbps RJ45 ports
● Bandwidth: 32Gbps bandwidth
● Power: Built-in AC220V (12V 1A) power supply
● Features: VLAN, Extend mode, loop alarm support
● Build: Metal housing, desktop/1U rack-mountable (with brackets)

Download the datasheet

Why You Want It

16 × 1Gbps Gigabit RJ45 ports

Provides sixteen auto-sensing 10/100/1000 Mbps Ethernet ports.

High bandwidth and forwarding performance

Delivers 32 Gbps switching capacity, 23.8 Mpps packet forwarding rate, 4.1 Mbit packet buffer, and 8K MAC address table for non-blocking data transmission.

Advanced switching modes

Supports VLAN, Default mode, and Extend mode (ports 1–14 support 250m transmission at 10Mbps, with ports 15–16 as uplink aggregation).

QoS and loop alarm

Ports 1–8 support QoS data priority; features loop alarm to detect and alert network loops.

Surge protection

Port surge protection: common mode 4KV, differential mode 2KV, and ESD protection: air 8KV, contact 6KV.

Desktop installation design

Compact metal case suitable for desktop placement; fanless design for silent operation. Optional rack-mount ears available.

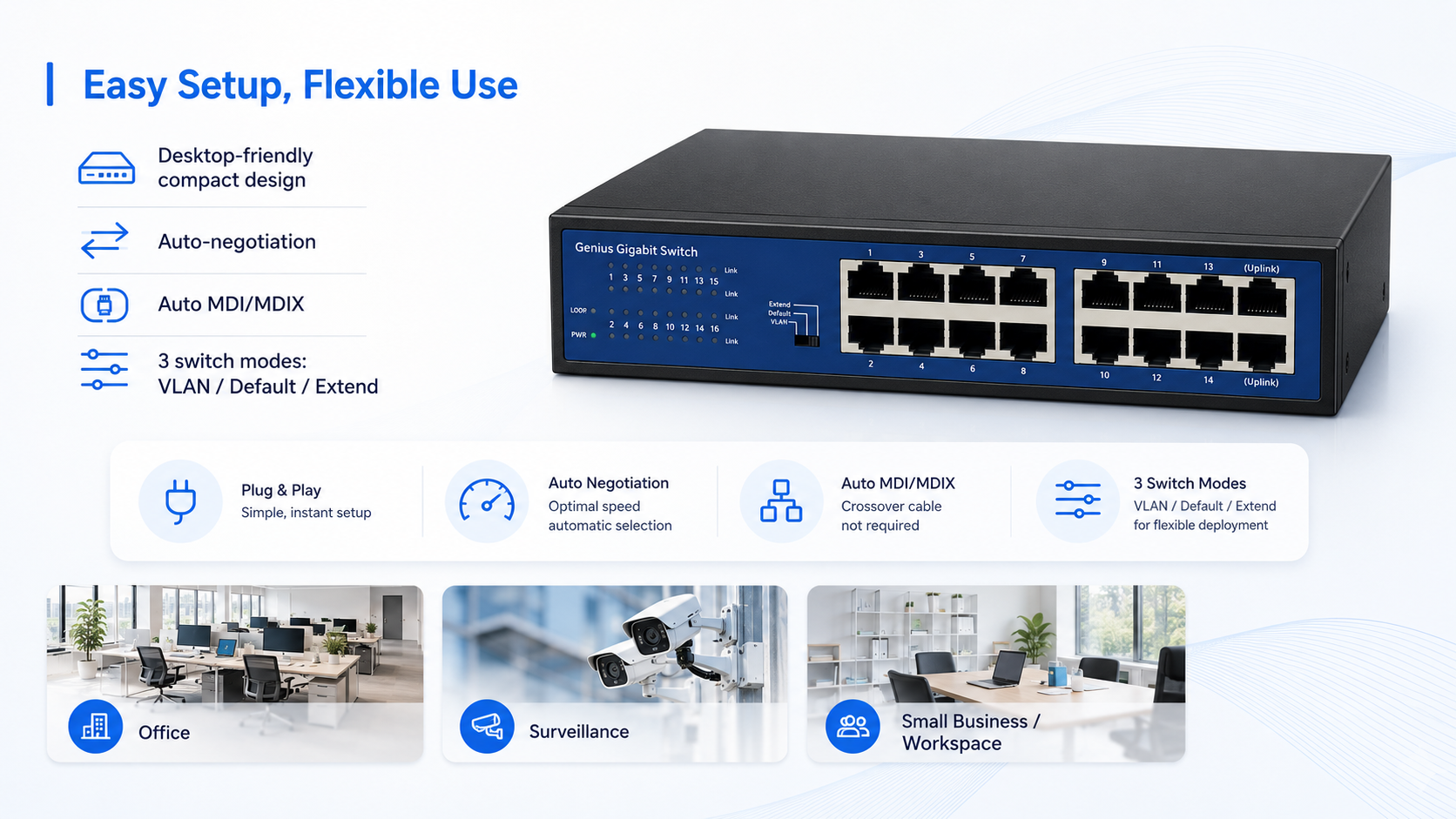

Plug-and-play with flexible deployment

Desktop-friendly design, auto-negotiation, Auto MDI/MDIX, and multiple switching modes (VLAN/Default/Extend) allow easy setup without complex configuration for various scenarios (office, surveillance, etc.).
Genius Gigabit switch with desktop-friendly design, plug-and-play setup, auto-negotiation, Auto MDI MDIX, and VLAN Default Extend modes for office and surveillance networks.

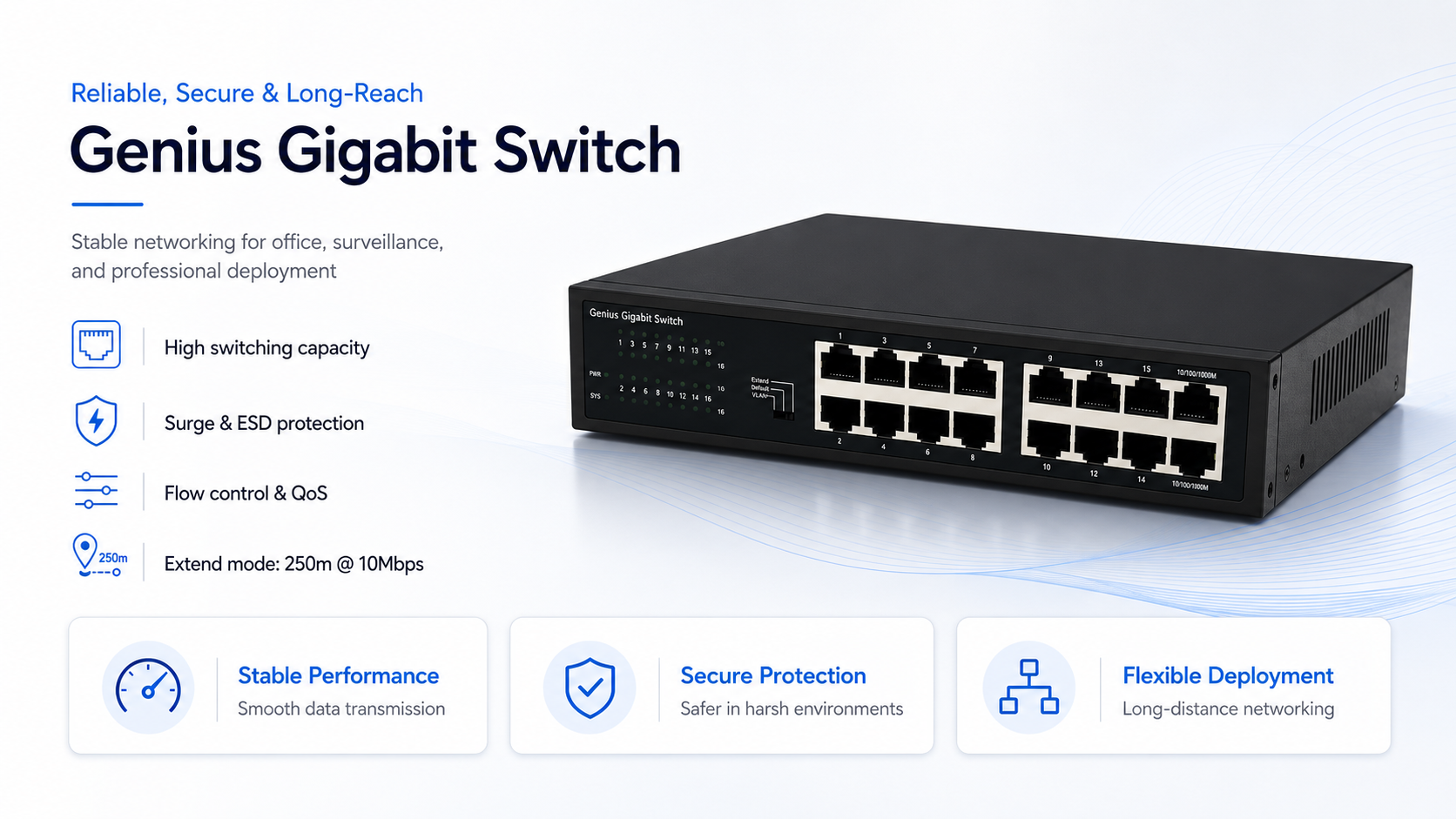

Reliable, secure, and long-distance capable

High switching capacity, robust surge/ESD protection, flow control, QoS, and Extend mode (250m @ 10Mbps) ensure stable, safe, and versatile network performance even in harsh or long-distance environments.
Genius Gigabit switch with high switching capacity, surge and ESD protection, flow control, QoS support, and Extend mode up to 250m at 10Mbps for stable long-distance networking.

Specification

ModelEW-16G-12W-IP
Interface16 *1G RJ45 ports
Port StandardIEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet)
IEEE802.3x (Flow Control)
Bandwidth32Gbps
Packet Forwarding Rate23.8Mpps
Packet Buffer4.1Mbit
MAC Address Table8K
Transmission MethodStore and Forward
Power SupplyAC 100-240V , 50/60Hz
DC 12V 1A
Mainboard Power Consumption6.78W
Structure InformationProduct Dimensions :220*161*44.5mm
Product Net Weight:0.90KG
Package ContentsSwitch 1pcs, power  cord 1pcs, manual 1pcs,certificate of qualification 1pcs
Fan Quantity0
InstallationDesktop
Surge  ProtectionPort Surge: Common mode 4KV, differential mode 2KV
Electrostatic ESD: Air 8KV, Contact 6KV
Operating Temperature0~40°C
Storage Temperature-40 °C to 70 °C
VLAN/Default/Extend ModesVLAN (port isolation):
1-14 ports are isolated from each other and all communicate with 15-16 ports;
Default (default mode): All ports communicate with each other;
Extend (monitoring mode):
1-14 ports support 100Mbps speed reduction negotiation,  support 250 meters in 10Mbps mode, and 15/16 ports serve as aggregation

Dimensions (mm)

Product structure
