Industrial 10-Port Gigabit Managed PoE Switch
Industrial 10-Port Gigabit Managed PoE Switch - Image 2
Industrial 10-Port Gigabit Managed PoE Switch - Image 3
Industrial 10-Port Gigabit Managed PoE Switch - Image 4

Industrial 10-Port Gigabit Managed PoE Switch

HMIP722-8G2S-BT

● Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z / ab, IEEE802.1Q, IEEE802.1p, IEEE802.1d/w

● Support PoE power management and PoE Watchdog based on data flow detection

● Support IEEE802.3af (15.4W) and IEEE802.3at (30W), and IEEE802.3bt (90W)

● Ports 1-2 support BT90W power supply

● Support SNMP v1/v2/v3 Simple Network Management Protocol

● Support IGMP Snooping, static multicast filtering, and MLD Snooping filtering

● Support 802.1x port authentication and AAA authentication to enhance network security

● Support web, Telnet, CLI, SSH management

● IP40 protection level, high-strength shell, DIN35 rail installation

● Industrial grade 4-level design, operating temperature from -40~75°C

● Support redundant power supply connection and anti reverse connection

Download the datasheet

Why You Want It

IEEE 802.3bt 90W PoE

Port 1-2 supports up to 90W, powering high‑demand devices like PTZ cameras, industrial displays, and high-performance industrial PCs.

Industrial Grade Wide Temperature

Industrial-grade design with -40°C to 75°C operating range for stable performance in harsh environments.

PoE Watchdog & Power Management

Automatically resets unresponsive PD devices via traffic monitoring, reducing on‑site maintenance.

Redundant Power & Anti‑Reverse Protection

Dual power input with reverse polarity prevention guarantees uninterrupted operation for critical applications.

Multicast & Ring Redundancy

IGMP/MLD Snooping and static multicast filtering optimize multicast traffic; IEEE 802.1w RSTP provides fast network redundancy.

Full Remote Management

Supports SNMP v1/v2/v3, Web GUI, Telnet, CLI, and SSH for flexible deployment and simplified troubleshooting.

Ultra‑High 90W PoE + Intelligent Watchdog

Supports IEEE802.3af/at/bt with up to 90W per port (ports 1‑2) to power the most demanding devices – PTZ cameras, industrial PCs, digital signage, and more. All PoE ports feature data‑flow‑based PoE Watchdog, automatically resetting unresponsive PD devices to eliminate costly on‑site troubleshooting and maximize system uptime.

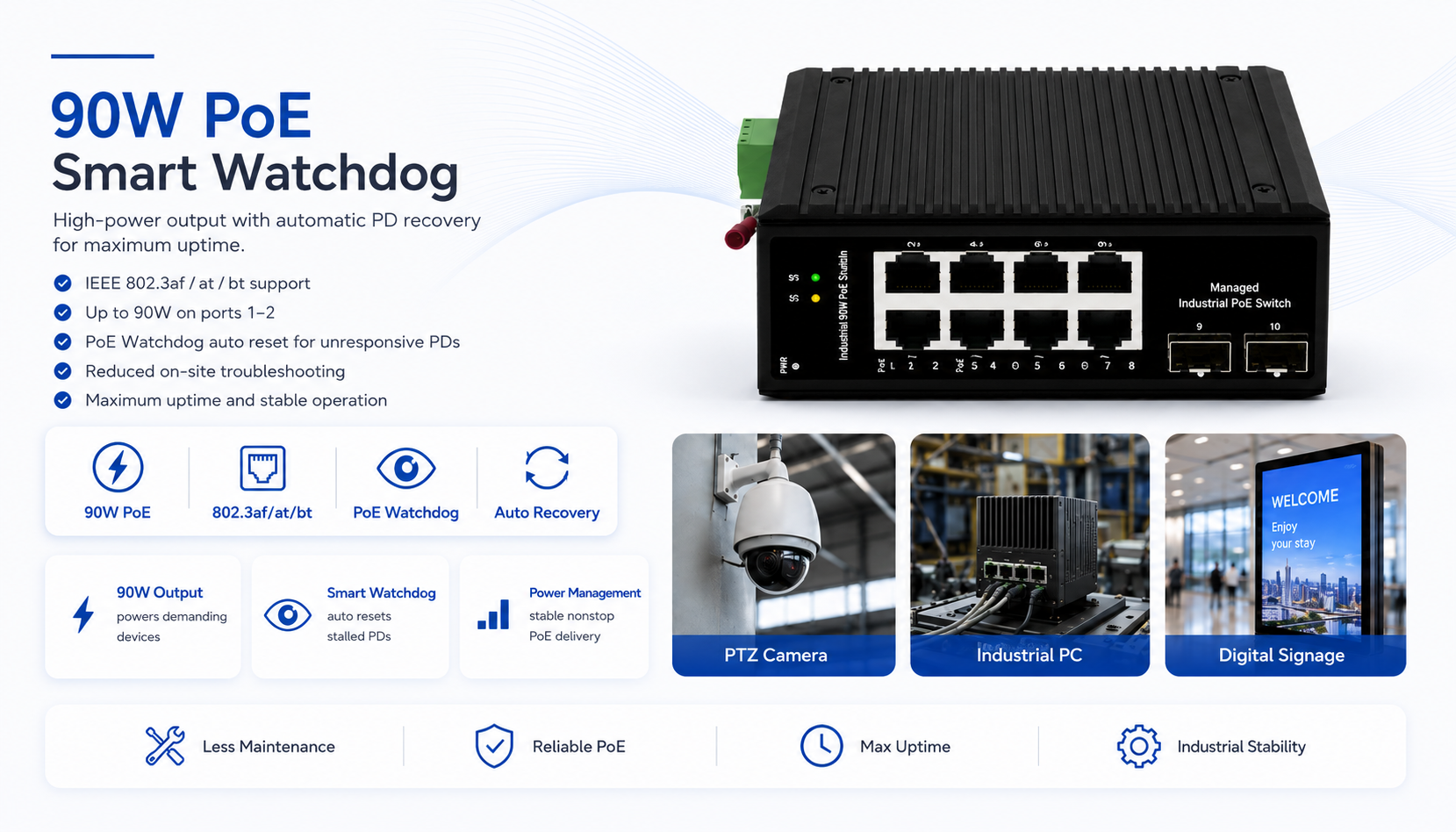

Industrial PoE switch with IEEE 802.3af/at/bt support, up to 90W output on ports 1–2, and intelligent PoE Watchdog for automatic PD recovery.

Industrial‑Grade Ruggedness for Extreme Environments

Rated industrial-grade with a -40°C to 75°C operating range. The IP40 high‑strength shell, DIN35 rail mounting, redundant power inputs, and reverse polarity protection guarantee reliable, non‑stop performance in factories, outdoor cabinets, remote solar‑powered sites, or any harsh environment where commercial switches would fail.

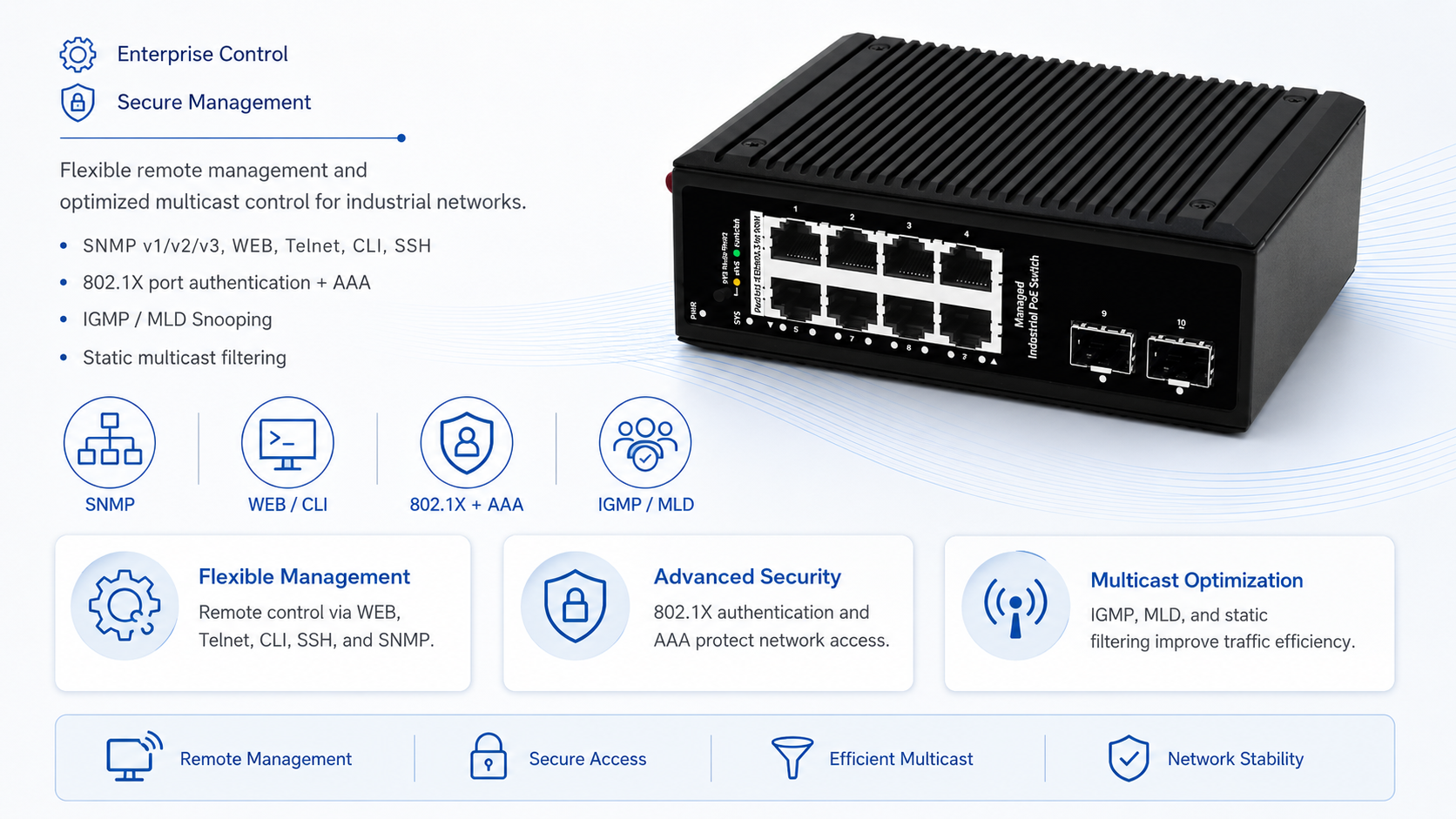

Managed industrial PoE switch supporting SNMP, WEB, Telnet, CLI, SSH, 802.1X authentication, AAA security, IGMP MLD Snooping, and multicast filtering.

Enterprise Management & Security in a Compact Switch

Supports SNMP v1/v2/v3, WEB, Telnet, CLI, and SSH for flexible remote management. Advanced security includes 802.1x port authentication and AAA. IGMP Snooping, static multicast filtering, and MLD Snooping optimize multicast traffic – delivering network‑grade control for IP surveillance, industrial IoT, or campus networks.

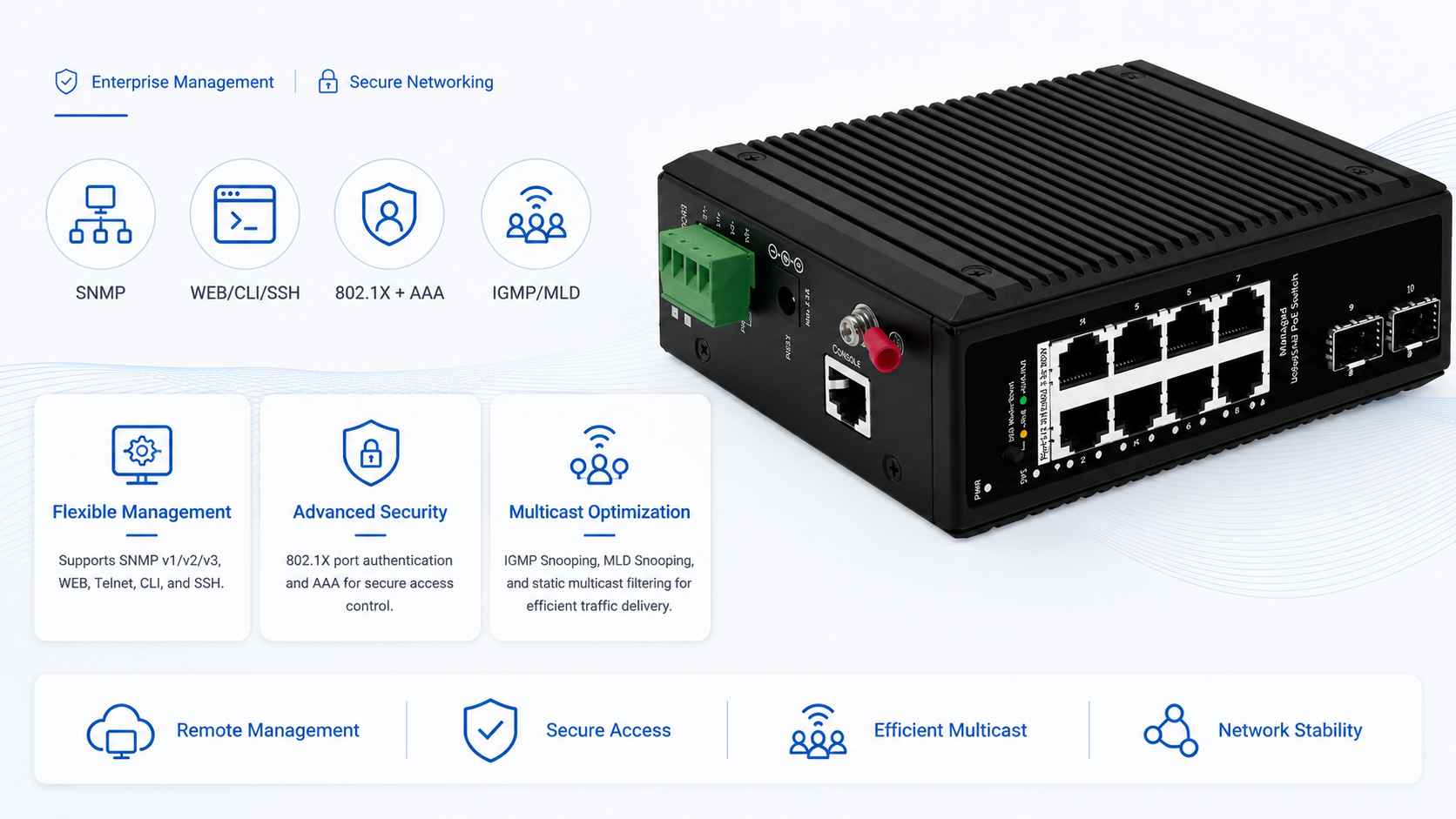

Compact managed industrial PoE switch with SNMP remote management, 802.1X and AAA security, IGMP Snooping, MLD Snooping, and static multicast filtering.

Specification

ModelHMIP722-8G2S-BT
Interface8*1Gbps PoE ports
2*1Gbps SFP ports
1*Console port
Port StandardIEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3z (Gigabit Ethernet Fiber Standard)
IEEE802.3x (Flow Control)
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
Switching Bandwidth20Gbps
Packet Forwarding Rate14.88Mpps
Packet Buffer4.1Mbit
MAC Address Table8K
Jumbo Frame10 K bytes
VLANVLAN range 1-4094, maximum active VLAN is 4K
Transmission MethodStore and Forward
PoE StandardIEEE802.3af (15.4W)
IEEE802.3at (30W)
IEEE 802.3bt (90W)
PoE PortsPorts 1-2 support BT90W power supply
Ports 3-8 PoE power output <30W
DC12~55V
Product Dimensions138*108*51mm
Fan Quantity0
CertificationCE, FCC, RoHS
InstallationDesktop, Wall mounting installation, Rail installation
Surge ProtectionPort Surge: Common mode 6KV, Differential mode 2KV (Class B)
Electrostatic ESD: Air 8KV, Contact 6KV (Class B)
Operating Temperature

Operation Humidity

-40~75°C

10%~90%, non condensing

LED Mode Button&ResetDual color LED selection: default green (link data), switch yellow LED(PoE)
Long press for 6 seconds to restore factory settings
L2+ Function
IPv4/IPv6

L2 Function

Support VLAN Interface, Static Routes, ARP/ND
Support load balance policy; Base on MAC and IP-MAC
Static and Dynamic Group
Up to 8 groupsSupport LACP
Storm ControlBoardcast suppression

Unknown Multicast

Unknown Unicast

Port MirroringOne to one monitor

Many to one monitor

Ingress/Egress/Both

Up to 4 session groups

Port SecurityMAC Address Constraints

Port Security MAC Address

Protect/Restrict/Shutdown

Port IsolationSupport
Port Rate-limitSupport
Loopback DetectionSupport
VLANAccess/Trunk/Hybrid
VLAN Tunnel (Q-in-Q Tunnel)
VLAN range 1-4094, maximum active VLAN is 4K
Voice VLAN
MAC VLAN
Surveillance VLAN
Protocol VLAN
GVRP
MAC AddressDynamic MAC address
Static MAC address
Filtering MAC Address
Spanning Tree ProtocolSTP/RSTP/MSTP
BPDU Filter
BPDU Guard
Edge Port
LLDPLLDP
LLDP MED
MulticastIGMP Snooping

IGMP V1/V2/V3

Router Port

Static IGMP group address

IGMP groups filtering

Querier

MLD Snooping

MVR

QoSTraffic classification based, Strict priority and WRR

Port Priority

802.1P Priority

IP TOS Priority

IP DSCP Priority

Support up to 8 queues per port

Priority Remarking

ERPSOnly SFP port
PoE
PoE ConfigurationPoE Temperature
PoE Type/Level/Power/Voltage/Current query
PoE Switch Configuration
PoE Watchdog Configuration
PoE power AF/AT adaptation
PoE ScheduleSupport
PoE Port Timer RebootSupport
Services
DHCPDHCP Server
IP Pool
Static Binding
Option 43
DHCP Relay
Access ProtocolHTTP

HTTPS

Telnet

SSHv2

Manager ACL

Session Timeout

Password Retry Count

Silent Time

Security
AAARADIUS

TACACS+

802.1X

Base on port/MAC/local/WEB

DHCP SnoopingGlobal/VLAN

Option 82

Circuit ID

IP Source GuardSupport
Dynamic ARP InspectionSupport
DoSSupport
ACLMAC/IPv4/IPv6 ACL
Diagnostics
SyslogLogging Message
Remote Server
PingSupport
TracerouteSupport
Copper TestSupport
UDLDSupport
Port StatisticsSupport
Equipment Management
Manager AccessConsole
HTTP/HTTPSTelnetSSHSNMP
Manager IPStatic Address

DHCP Client

Support IPv4 and IPv6 address

Manager VLAN

DNS

Time SynchronizationSNTP

Manual Time

SNMPV1/V2C/V3



Dimensions (mm)

Product structure
