Industrial 5-Port Megabit PoE Switch

HIP500-4H1

● 4*100Mbps PoE ports+1*100Mbps uplink RJ45 port

● Comply with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards

● Comply with IEEE802.3at (30W) and IEEE802.3af (15.4W)

● Industrial grade protection design, operating temperature from -40~75°C

● High strength cast iron shell, DIN35 rail installation

● Support redundant power supply connection and anti reverse connection

Download the datasheet

Why You Want It

IEEE Standards Compliance

Fully compliant with IEEE 802.3, 802.3u, and 802.3x for reliable network performance.

Standard PoE Support

Complies with IEEE802.3af (15.4W) and IEEE802.3at (30W) for flexible device powering.

Industrial Grade Temperature Range

-40°C to 75°C operating temperature, stable in extreme environments.

Durable Cast Iron Enclosure

High-strength cast iron shell with DIN rail (35mm) mounting for harsh industrial conditions.

Redundant Power Supply

Supports dual power input for uninterrupted operation in critical applications.

Anti-Reverse Connection Protection

Prevents damage from reverse polarity wiring, enhancing installation safety.

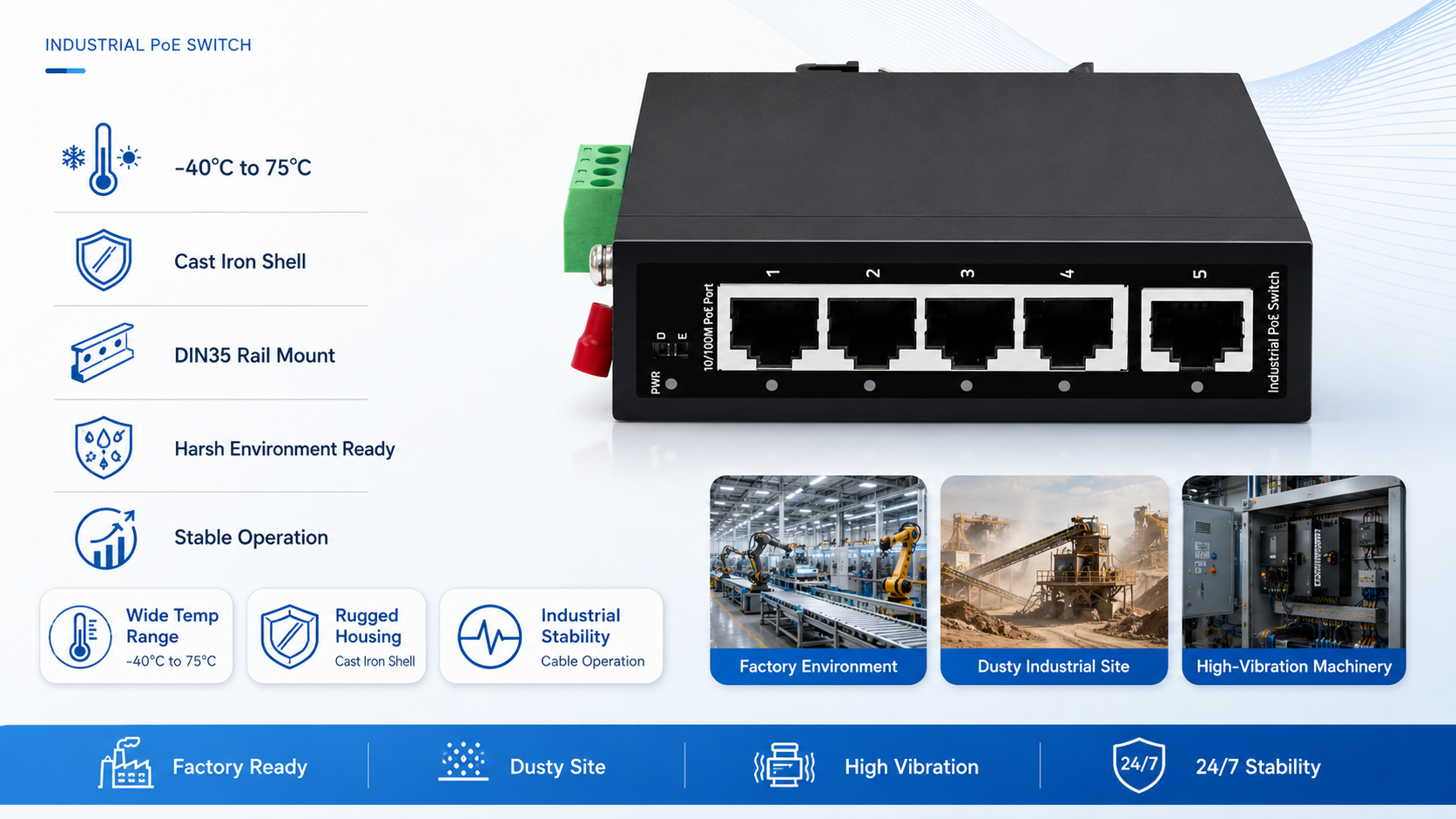

Rugged Industrial Design for Harsh Environments

High‑strength cast iron shell with DIN rail (35mm) mounting, combined with -40°C to 75°C industrial‑grade protection – ensures stable operation in extreme temperatures, dusty sites, or high‑vibration industrial settings.
Industrial PoE switch with cast iron shell, DIN35 rail mounting, -40°C to 75°C operating range, and rugged design for harsh factory, dusty, and high-vibration environments.

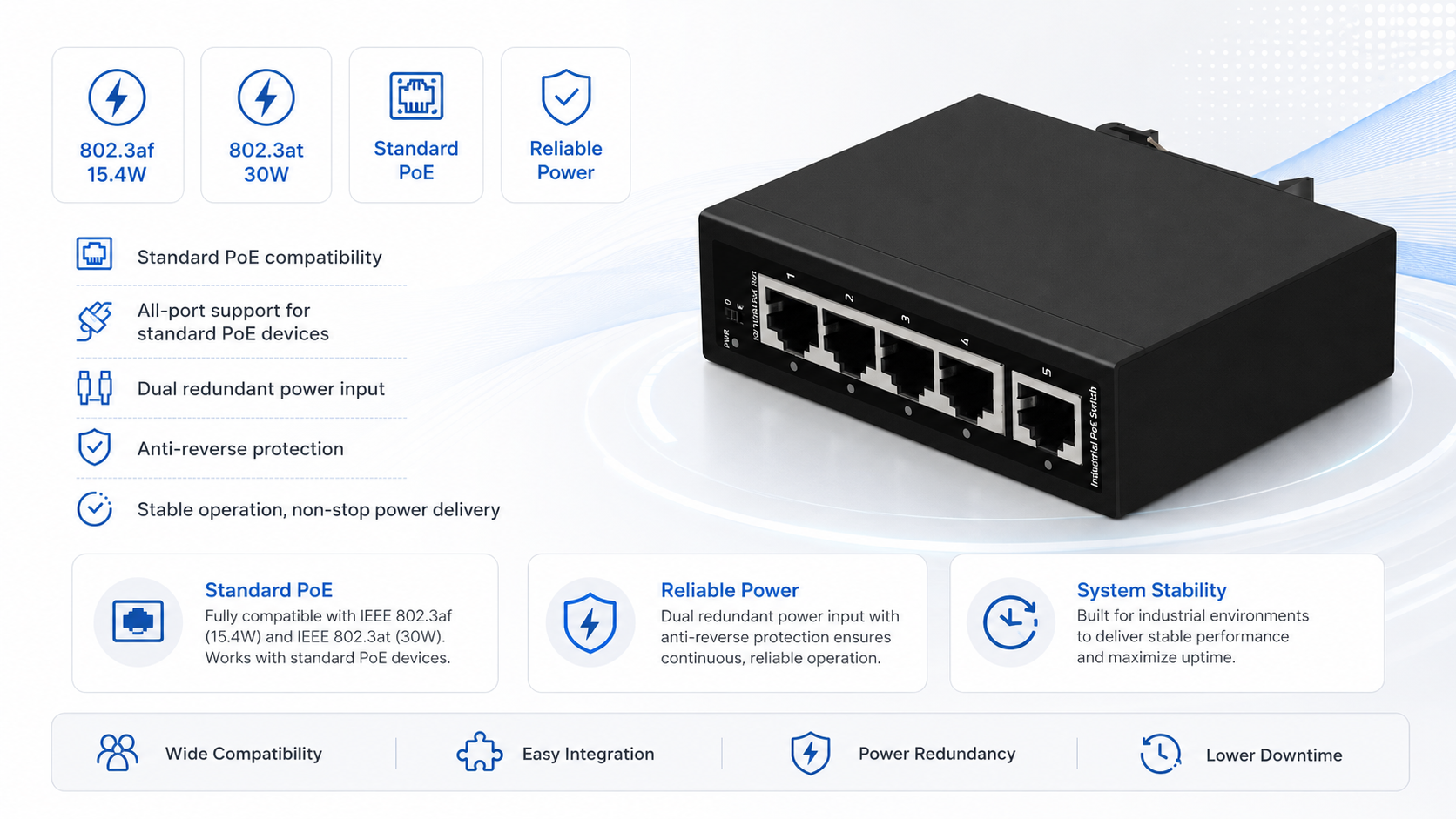

Reliable PoE + Redundant Power

Compliant with IEEE802.3af (15.4W) and IEEE802.3at (30W) for standard PoE devices; supports dual redundant power input and anti‑reverse connection – guarantees non‑stop power delivery even if one supply fails.
Industrial PoE switch supporting IEEE 802.3af 15.4W and IEEE 802.3at 30W, with dual redundant power input and anti-reverse protection for non-stop power delivery.

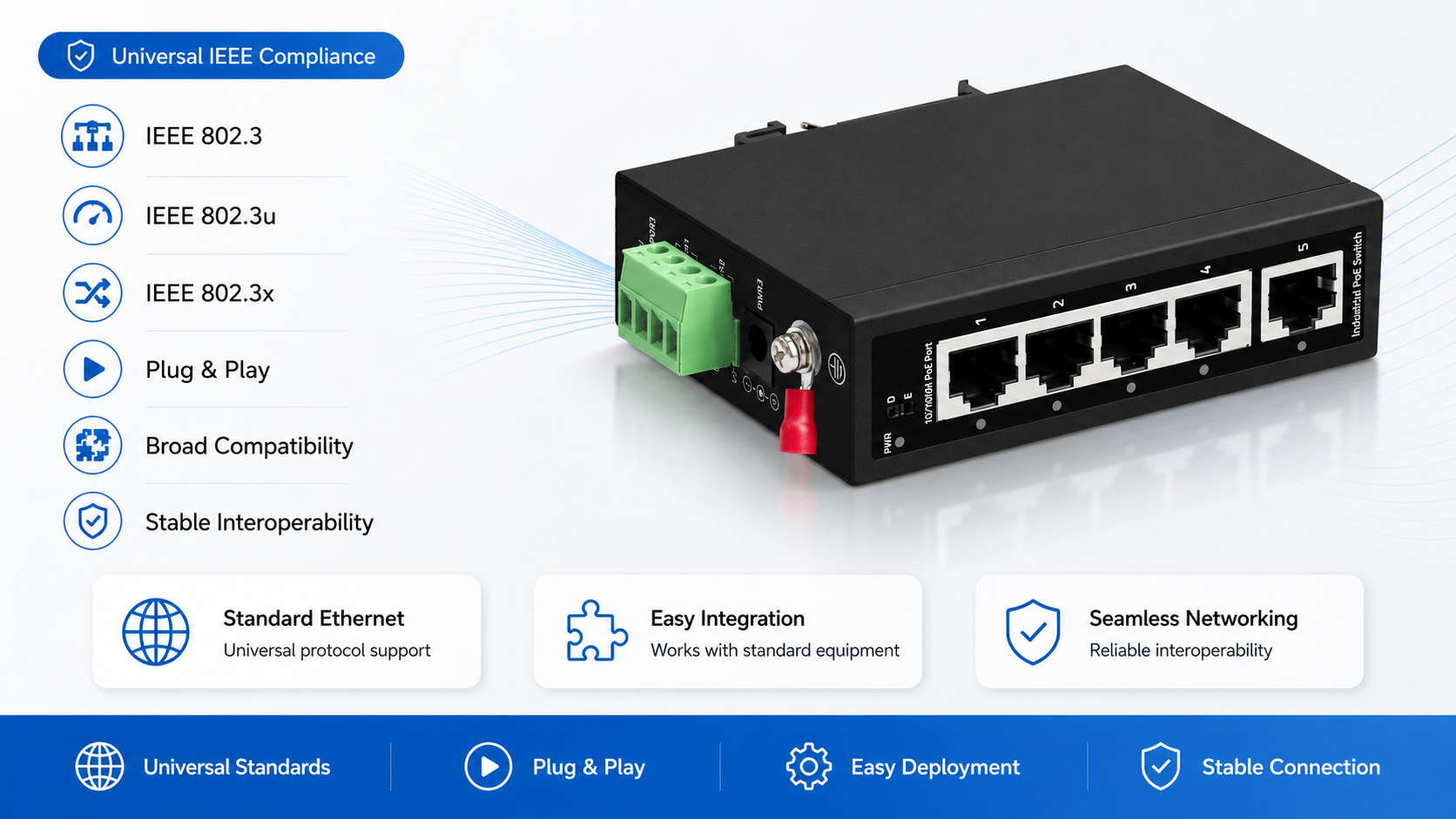

Universal IEEE Compliance

Fully complies with IEEE 802.3, 802.3u, and 802.3x standards, ensuring seamless interoperability with any standard network equipment – plug‑and‑play, no compatibility worries.
Industrial PoE switch compliant with IEEE 802.3, 802.3u, and 802.3x standards, providing plug-and-play interoperability with standard network equipment.

Specification

ModelHIP500-4H1
Interface4*100Mbps PoE ports
1*100Mbps uplink RJ45 port
Port StandardIEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3x (Flow Control)
Switching Bandwidth1Gbps
Packet Forwarding Rate0.744Mpps
Packet Buffer448Kbit
MAC Address Table1K
Transmission MethodStore and Forward
PoE Standard

PoE Ports

Power Supply

IEEE802.3af (15.4W)
IEEE802.3at (30W)Ports 1-4 PoE power output <30WDC12~55V
DC48~55V  (PoE)
Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-)
CertificationCE, FCC, RoHS
Mainboard Power Consumption                   2.29W
100*76.5*30mmProduct Dimensions
Fan Quantity                                                 0
Installation                                                    Desktop, Wall mounting installation, Rail installation
Surge ProtectionPort Surge: Common mode 6KV, Differential mode 2KV(Class B)
Electrostatic ESD: Air 15KV, Contact 8KV(Class B)
Operating Temperature    -40~75°C
Operation Humidity    10%~90%, non condensing
D/E Modes ButtonsD: Normal mode, all ports can communicate with each other, transmission distance
is within 100 meters, transmission rate is 10/100Mbps adaptive
E: Extend mode, when the PoE port is in Extend mode, ports 1-4 force 10Mbps to
extend the transmission distance to 250meters

Dimensions (mm)

Product structure
