Industrial 6-Port Gigabit Managed PoE Switch
Industrial 6-Port Gigabit Managed PoE Switch - Image 2
Industrial 6-Port Gigabit Managed PoE Switch - Image 3
Industrial 6-Port Gigabit Managed PoE Switch - Image 4

Industrial 6-Port Gigabit Managed PoE Switch

HMIP722-4G2S

● 4*1Gbps PoE ports+2*1Gbps SFP ports+1*Console port

● Support: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z / ab, IEEE802.1Q, IEEE802.1p, IEEE802.1d/w

● Support PoE power management and PoE Watchdog based on data flow detection

● Support IEEE802.3af (15.4W) and IEEE802.3at (30W)

● Support SNMP v1/v2/v3

● Support IGMP Snooping, static multicast filtering, and MLD Snooping filtering

● Support 802.1x port authentication and AAA authentication to enhance network security

● Supporting WEB, Telnet, CLI, SSH management

● IP40 protection level, high-strength aluminum shell, DIN35 rail installation

● Industrial grade 4-level design, operating temperature from -40~75°C

● Support redundant power supply connection and anti reverse connection

Download the datasheet

Why You Want It

Industrial Grade Design

-40°C to 75°C operating range, stable in extreme environments.

Redundant Power & Protection

Supports redundant power input and reverse polarity protection for uninterrupted operation.

PoE Watchdog

Automatically resets unresponsive PD devices based on traffic monitoring, reducing on‑site maintenance.

Multicast & Ring Redundancy

IGMP/MLD Snooping and static multicast filtering optimize multicast traffic; IEEE 802.1w RSTP provides fast network redundancy.

Comprehensive Management

Supports Web GUI, Telnet, CLI, SSH, and SNMP v1/v2/v3 for flexible network deployment.

Durable Enclosure

IP40-rated enclosure, high‑strength aluminum shell, DIN rail (35mm) rail mounting for harsh environments.

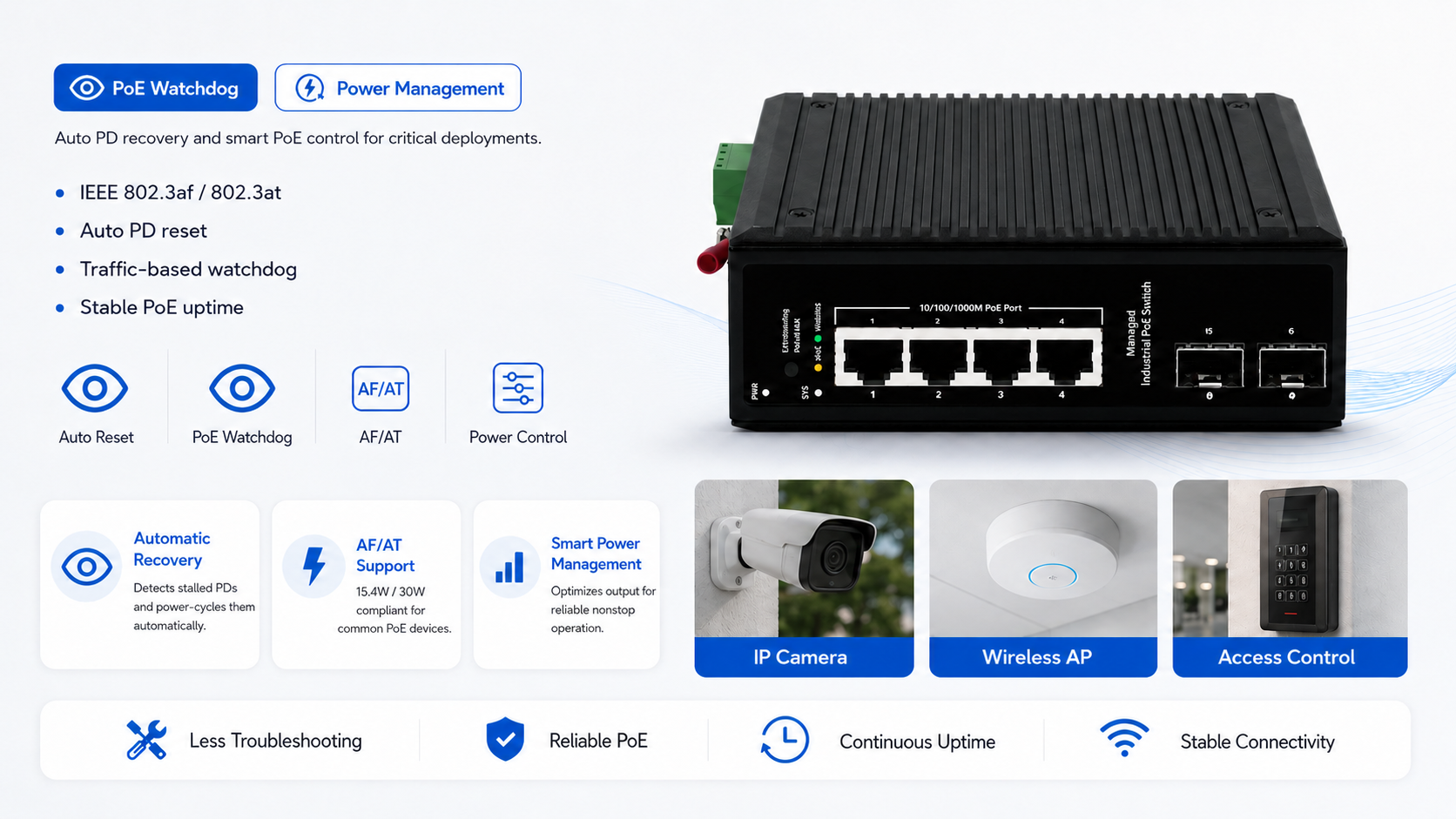

Intelligent PoE Watchdog & Power Management

All PoE ports feature data‑flow‑based PoE Watchdog – automatically detecting unresponsive PD devices and power‑cycling them to eliminate costly on‑site resets. Combined with full PoE power management (IEEE802.3af/at, 15.4W/30W), this ensures maximum uptime for IP cameras, access points, and other critical endpoints.
Compact industrial PoE switch with intelligent PoE Watchdog, automatic PD reset, IEEE 802.3af/at support, and smart power management for IP cameras, wireless APs, and critical endpoints.

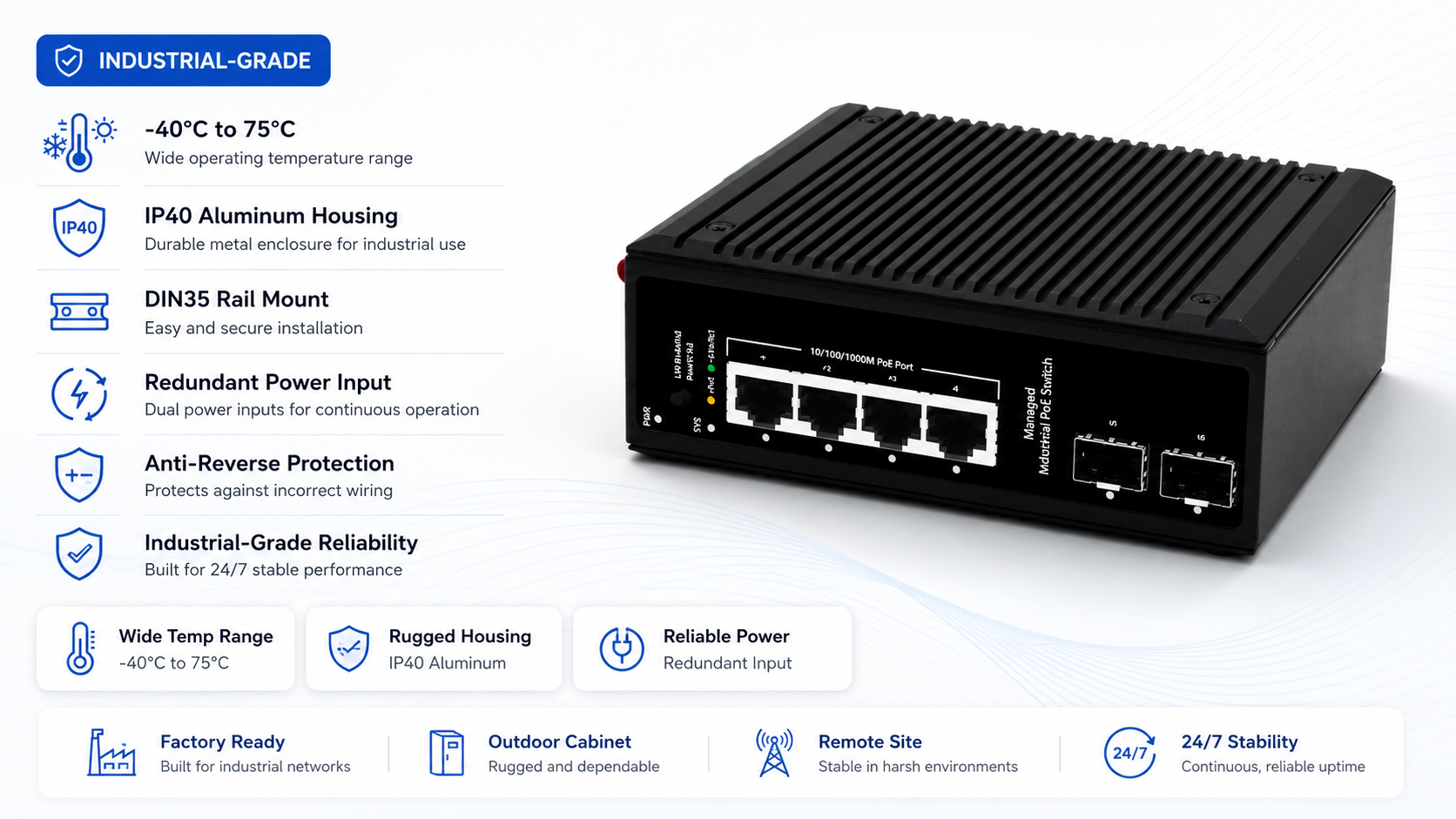

Industrial‑Grade Ruggedness for Extreme Environments

Rated industrial-grade design with a -40°C to 75°C operating range, IP40 high‑strength aluminum shell, DIN35 rail mounting, redundant power inputs, and anti‑reverse protection. Built to thrive in factories, outdoor cabinets, or remote solar‑powered sites where consumer switches would fail.
Rugged compact industrial PoE switch with -40°C to 75°C operating range, IP40 aluminum housing, DIN35 rail mounting, redundant power input, and anti-reverse protection.

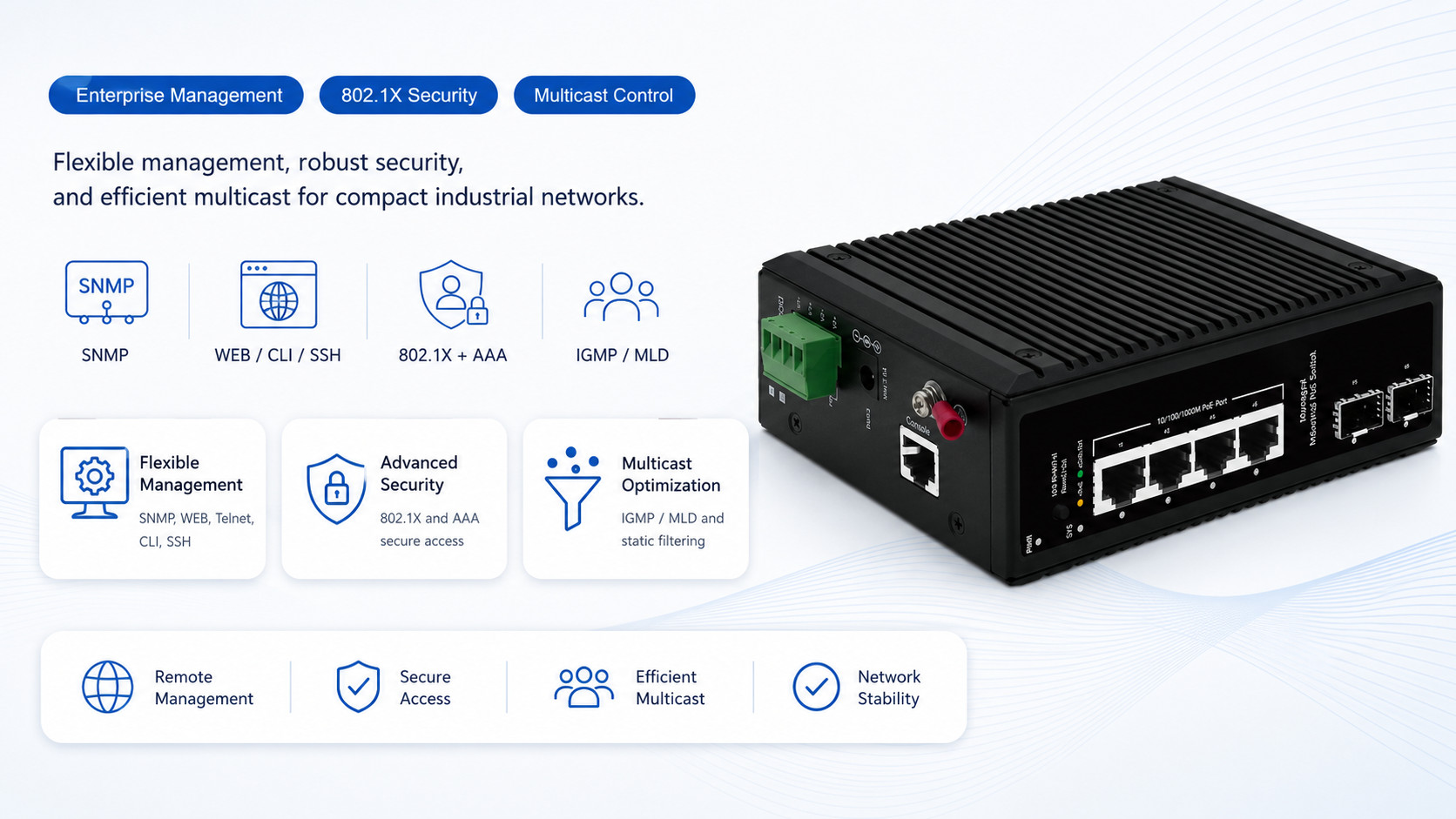

Enterprise Management & Security in a Compact Switch

Supports SNMP v1/v2/v3, WEB, Telnet, CLI, SSH for flexible remote management. Advanced features include 802.1x port authentication, AAA security, IGMP/MLD Snooping, and static multicast filtering – delivering network‑grade control for surveillance or industrial IoT deployments.
Compact managed industrial PoE switch supporting SNMP, WEB, Telnet, CLI, SSH, 802.1X authentication, AAA security, IGMP MLD Snooping, and static multicast filtering.

Specification

ModelHMIP722-4G2S
Interface4*1Gbps PoE ports
2*1Gbps SFP ports
1*Console port
Port StandardIEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3z (Gigabit Ethernet Fiber Standard)
IEEE802.3x (Flow Control)
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
Switching Bandwidth12Gbps
Packet Forwarding Rate8.928Mpps
Packet Buffer4.1Mbit
MAC Address Table8K
Jumbo Frame10Kbytes
VLANVLAN range 1-4094, maximum active VLAN is 4K
Transmission MethodStore and Forward
PoE StandardIEEE802.3af (15.4W)
IEEE802.3at (30W)
PoE PortsPorts 1-4 PoE power output <30W

DC12~55V

Product Dimensions138*108*51mm
Fan Quantity0
CertificationCE, FCC, RoHS
InstallationDesktop, Wall mounting installation, Rail installation
Surge ProtectionPort Surge: Common mode 6KV, Differential mode 2KV (Class B)
Electrostatic ESD: Air 15KV, Contact 8KV (Class B)
Operating Temperature-40~75°C
Operation Humidity10%~90%, non condensing
L2+ Function
IPv4/IPv6

L2 Function

Support VLAN Interface, Static Routes, ARP/ND
Support load balance policy; Base on MAC and IP-MAC
Static and Dynamic Group
Up to 8 groupsSupport LACP
Storm ControlBoardcast suppression

Unknown Multicast

Unknown Unicast

Port MirroringOne to one monitor

Many to one monitor

Ingress/Egress/Both

Up to 4 session groups

Port SecurityMAC Address Constraints

Port Security MAC Address

Protect/Restrict/Shutdown

Port IsolationSupport
Port Rate-limitSupport
Loopback DetectionSupport
VLANAccess/Trunk/Hybrid
VLAN Tunnel (Q-in-Q Tunnel)
VLAN range 1-4094, maximum active VLAN is 4K
Voice VLAN
MAC VLAN
Surveillance VLAN
Protocol VLAN
GVRP
MAC AddressDynamic MAC address
Static MAC address
Filtering MAC Address
Spanning Tree ProtocolSTP/RSTP/MSTP
BPDU Filter
BPDU Guard
Edge Port
LLDPLLDP
LLDP MED
MulticastIGMP Snooping

IGMP V1/V2/V3

Router Port

Static IGMP group address

IGMP groups filtering

Querier

MLD Snooping

MVR

QoSTraffic classification based, Strict priority and WRR

Port Priority

802.1P Priority

IP TOS Priority

IP DSCP Priority

Support up to 8 queues per port

Priority Remarking

ERPSOnly SFP port
PoE
PoE ConfigurationPoE Temperature
PoE Type/Level/Power/Voltage/Current query
PoE Switch Configuration
PoE Watchdog Configuration
PoE power AF/AT adaptation
PoE ScheduleSupport
PoE Port Timer RebootSupport
Services
DHCPDHCP Server
IP Pool
Static Binding
Option 43
DHCP Relay
Access ProtocolHTTP

HTTPS

Telnet

SSHv2

Manager ACL

Session Timeout

Password Retry Count

Silent Time

Security
AAARADIUS

TACACS+

802.1X

Base on port/MAC/local/WEB

DHCP SnoopingGlobal/VLAN

Option 82

Circuit ID

IP Source GuardSupport
Dynamic ARP InspectionSupport
DoSSupport
ACLMAC/IPv4/IPv6 ACL
Diagnostics
SyslogLogging Message
Remote Server
PingSupport
TracerouteSupport
Copper TestSupport
UDLDSupport
Port StatisticsSupport
Equipment Management
Manager AccessConsole
HTTP/HTTPSTelnetSSHSNMP
Manager IPStatic Address

DHCP Client

Support IPv4 and IPv6 address

Manager VLAN

DNS

Time SynchronizationSNTP

Manual Time

SNMPV1/V2C/V3

Dimensions (mm)

Product structure
