L3 Managed Type Gigabit 28-Port PoE Switch
HNM200-AFGM-SWTG3424S-440
● 24×10/100/1000Mbps PoE Ports & 4 x10Gigabit “SFP+” Ports
● Managed PoE switch with VLAN, QoS, IGMP Snooping v1/v2/v3, complete STP/RSTP/MSTP, SNMP v1/v2/v3 and DHCP management
● 100-240V AC 50/60Hz
Why You Want It
IEEE802.3af/at
Compliant with IEEE802.3af (PoE) and IEEE802.3at (PoE+) standards, and meets IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3az, 802.3x for reliable performance.
Full Layer 3 Management
Supports IPv4/IPv6 static routing, RIP, OSPF, VLAN (4K), QoS (8 queues/port), ACL, IGMP Snooping, DHCP Server/Relay, LLDP, port mirroring, and LACP (up to 8 groups) .
Redundant Ring Protocols
Supports STP/RSTP/MSTP (ERPS) for link backup and loop protection, plus loop detection/self-healing and 802.3ah OAM.
Smart PoE Management
PoE Watchdog, PoE schedule, and PoE port timer reboot – auto-maintenance, lower operational costs.
Industrial-Grade Security & Protection
Supports 802.1x, AAA (RADIUS/TACACS+), ACL, DoS protection, DHCP Snooping, IP Source Guard, and DAI .Class A EMI/EMC compliant (FCC Part 15 CISPR EN55032 Class A)；ESD protection: EN61000-4-2.
High-Performance 10G Uplink
4 x 10G SFP+ ports provide high-bandwidth uplink connectivity. Delivers 128Gbps switching capacity and 95.23Mpps packet forwarding rate.

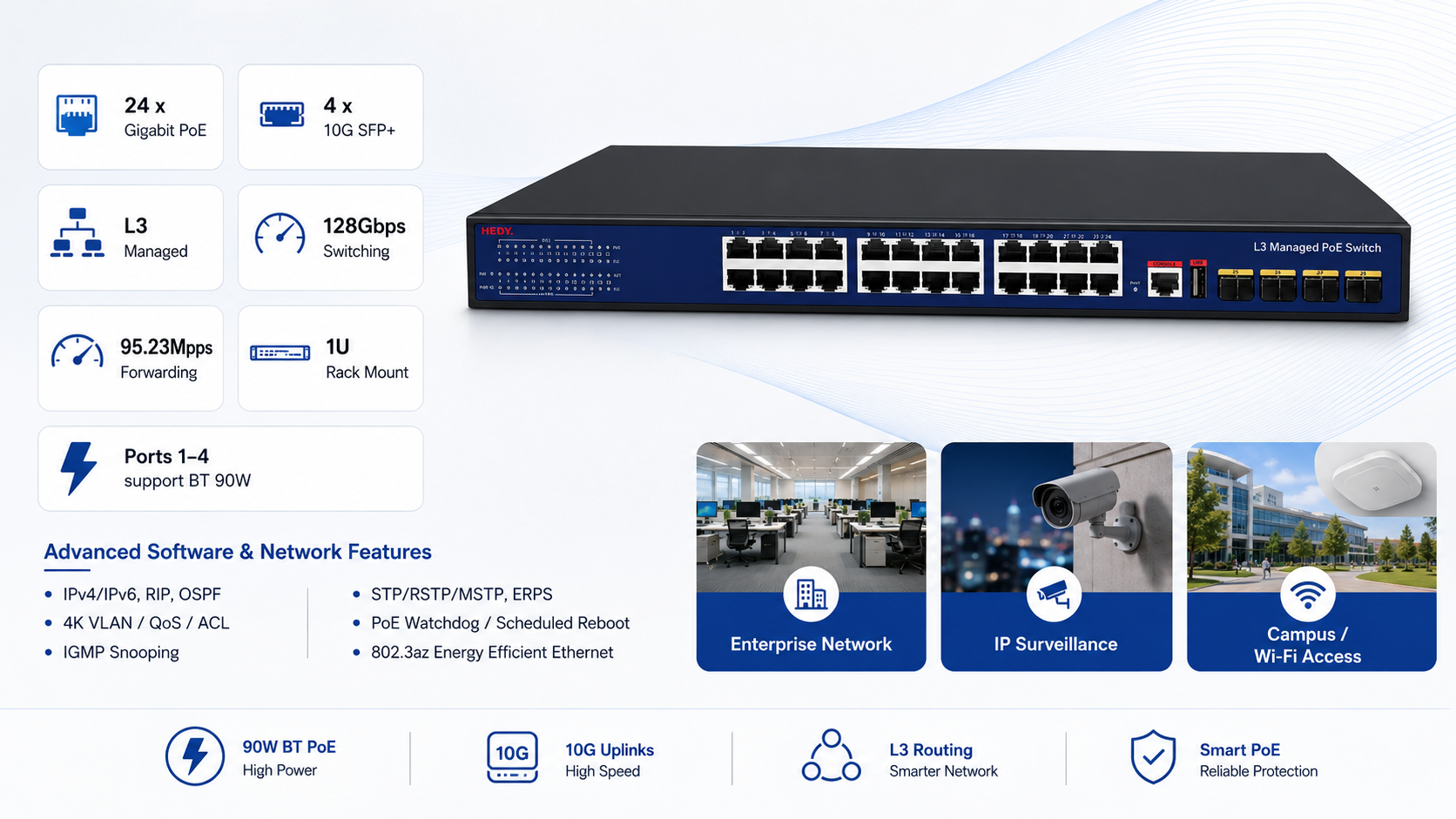

L3 Managed Type Gigabit 28-Port PoE Switch
Equipped with 24 x Gigabit PoE ports , 4 x 10G SFP+ ports, 1 x Console port, and 1 x USB port. Delivers 128Gbps switching capacity and 95.23Mpps forwarding rate.
Supports L3 management with IPv4/IPv6 static routing, RIP, OSPF, VLAN (4K), QoS (8 queues/port), ACL, and IGMP Snooping. STP/RSTP/MSTP (ERPS) with loop detection and 802.3ah OAM for link redundancy. PoE Watchdog + schedule + timer reboot.
Class A EMI/EMC compliant (FCC/EN55032 Class A). ESD protection: EN61000-4-2. IEEE 802.3az Energy Efficient Ethernet, 1U rack mountable.

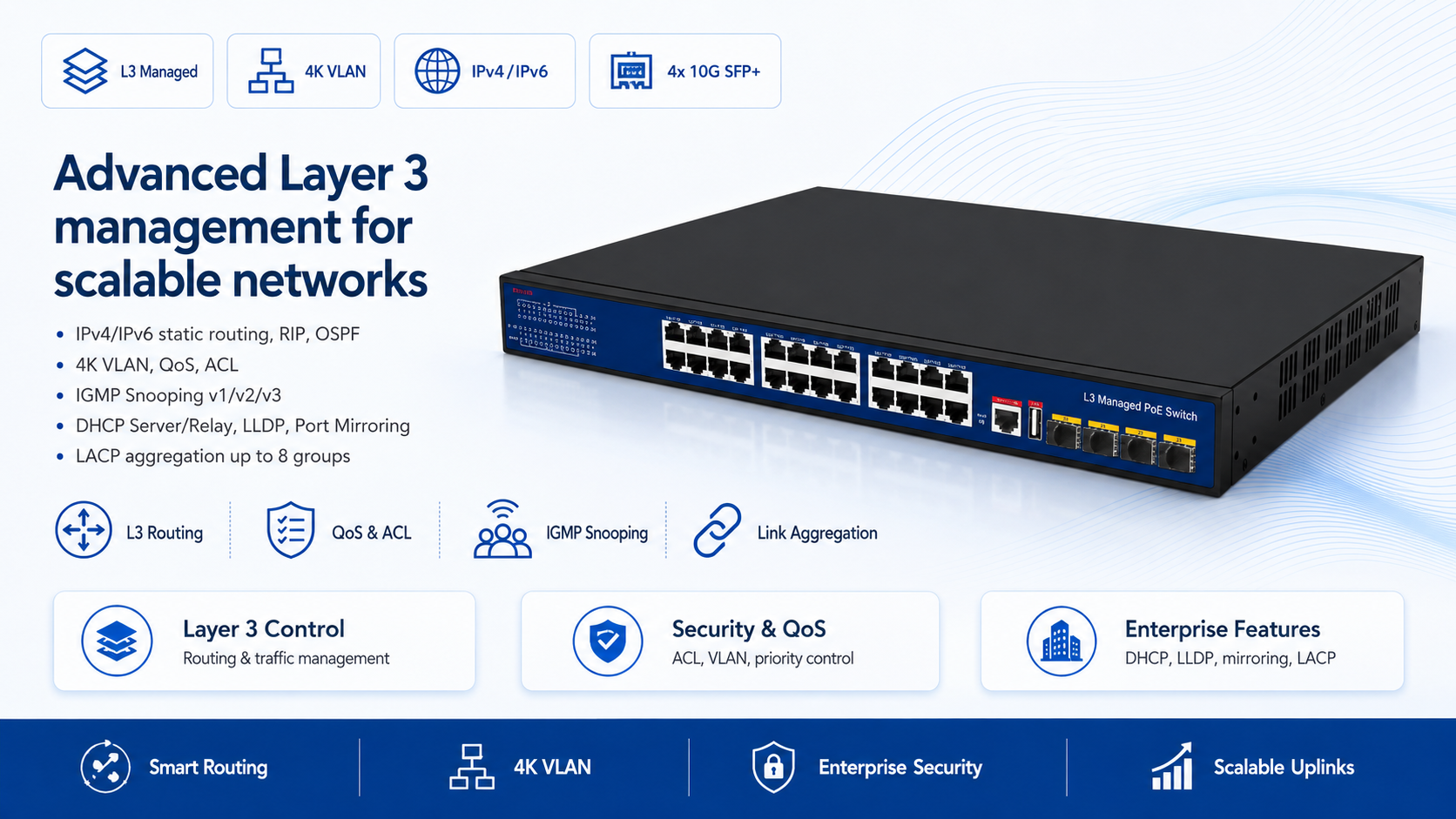

Rich Software Features
Supports L3 full management with IPv4/IPv6 static routing, RIP V1/V2, and OSPF for dynamic routing. Features VLAN (up to 4096), QoS (8 queues/port), ACL (MAC/IPv4/IPv6), and IGMP Snooping v1/v2/v3. Also supports DHCP Server/Relay, LLDP, port mirroring, and link aggregation (LACP, up to 8 groups) – ideal for enterprise, campus, and surveillance networks.

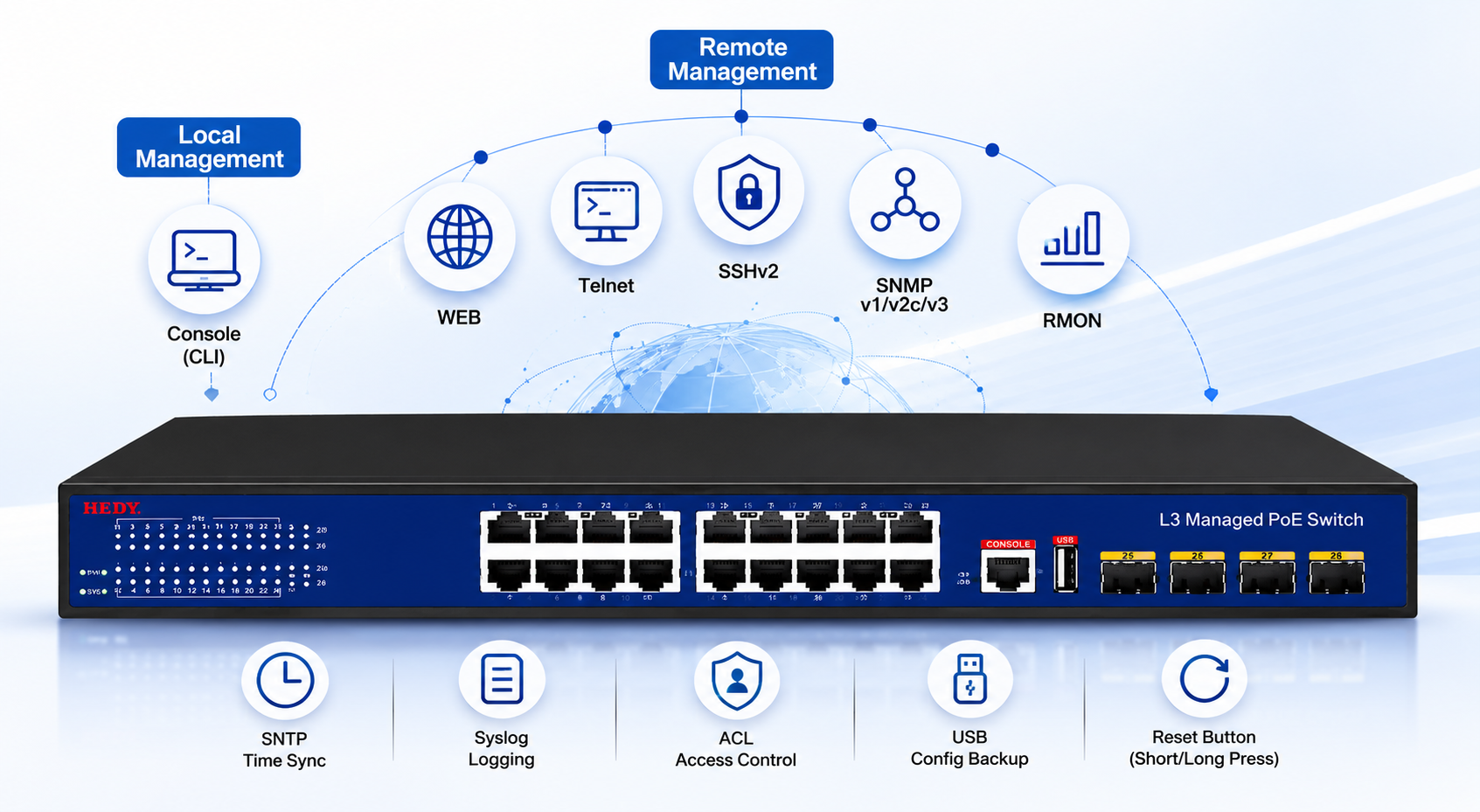

Local & Remote Management
Provides Console port for local CLI management, plus remote management via WEB, Telnet, SSHv2, SNMP v1/v2c/v3, and RMON. Supports SNTP time synchronization, Syslog logging, and Reset button (short press to restart, long press 5s to factory reset). Admin access can be restricted via ACL for enhanced security. USB port also supports configuration upload/backup.
Specification
| I/O Interface | |
| Model | HNM200-AFGM-SWTG3424S-440 |
| Power | AC100-240V/50-60Hz |
| Ethernet | 24*10/100/1000Mbps POE Port 4*10G SFP Port 1*RJ45 Console Port 1*USB Port |
| Performance | |
| Capacity | 128Gbps |
| Packet Forwaring Rate | 95.23Mpps |
| DDR SDRAM | 128MB |
| Flash Memory | 16MB |
| Packet Buffer Memory | 12Mbit |
| MAC Address | 16K |
| Jumbo Frame | 12K bytes |
| VLANs | 4096 |
| MTBF | 100000 hours |
| Function Indication | |
| PWR (Power Indicator) | Light on: Powering Light off: No Power |
| SYS (System Indicator) | Flash: System booting Light on: System Running |
| Link/Act Indicator （Port 1-24 ） | Light on: Link is connected Flash: Data Transmitting Light off: Link is disconnected |
| PoE Indicator （Port 1-24） | Light on：PoE powering Light off：PoE not powering |
| Link Indicator（Port 25- 28） | Light on: Link is connected Light off: Link is disconnected |
| Act Indicator (Port 25- 28） | Flash: Data Transmitting Light off: No Data Transmitting |
| Physical Specification | |
| Structure Size | Product Dimensions: 440*280*44mm Packing Dimensions: 503*385.5*91mm Product N.W: 4.03KG Product G.W: 5.15KG |
| Power Supply | Input voltage: 100-240VAC, 50/60Hz Power: Max. 440W Output voltage & current: 52V 7.54A & 12V 4A dual output |
| Power Consumption | Product Consumption：33W PoE Budget：390W Total Power Consumption: 423W |
| 【Software Function】 | |
| Basic Function | Support hardware watchdog, factory reset, system and port LED |
| Support global information, statistical information, log information | |
| Support User management, alarm management, configuration management | |
| Support Port rate, duplex, flow control, max frame length configuration | |
| Support Port mirroring, port speed limit, port energy saving | |
| Layer 3 interface | Support three-layer interface |
| Support IPv4, IPv6 address configuration | |
| Support ARP configuration | |
| Support ND configuration | |
| Layer 3 routing | Support IPv4 static routing |
| Support IPv6 static routing | |
| Support RIP V1/V2 | |
| Support OSPF | |
| DHCP | Support DHCP server |
| Support DHCP relay | |
| Support DHCP Snooping | |
| VLAN | Support 4K VLAN |
| Support 802.1Q VLAN, port-based VLAN | |
| Support Access, Trunk, Hybrid VLAN mode | |
| Support GVRP (VLAN Registration Protocol) | |
| Support MAC VLAN, IP VLAN | |
| Support Voice VLANN | |
| MAC address | Support MAC address automatic learning and aging |
| Support Static, dynamic, filtered address table | |
| Security Features | Password protection |
| Support Restrict user access based on port number, IP address, MAC address | |
| Support HTTPS, SSH V1/V2 | |
| Support VLAN-IP-MAC-PORT binding | |
| Support ARP detection, IP source protection, DoS protection | |
| Support DHCP Snooping、DHCP Attack protection | |
| Support 802.1X certification | |
| Support AAA (Authentication, Authorization, Accounting), Support RADIUS+ | |
| Support Port security, port isolation | |
| Access Control | Support L2(Layer 2) ～L4(Layer 4) Packet filtering function |
| Support Port mirroring, flow rate limiting, QoS remarking | |
| Support 8 port queues | |
| Support Port priority, 802.1P priority, DSCP priority | |
| QOS | Support SP, WRR Priority scheduling algorithm |
| Access Control | Support L2(Layer 2) ～L4(Layer 4) Packet filtering function |
| Support Port mirroring, flow rate limiting, QoS remarking | |
| QOS | Support 8 port queues |
| Support Port priority, 802.1P priority, DSCP priority | |
| Support SP, WRR Priority scheduling algorithm | |
| Spanning Tree | Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) & MSTP(IEEE 802.1s) protocol |
| Support Multi-instance, Support Aggregate interface | |
| Support BPDU Protection | |
| Multicast | Support IGMP v1/v2/v3 Snooping |
| Support MLD v1/v2 Snooping | |
| Support Layer 2 multicast fast leave mechanism, querier | |
| Support Layer 2 IPv4 static multicast | |
| Support Layer 2 IPv6 static multicast | |
| Support IGMP v1/v2/v3 Layer 3 multicast | |
| Storm Suppression | Support multicast suppression |
| Support broadcast storm suppression | |
| Support unknown uni-cast suppression | |
| Ring Protection | Support Ring protection |
| Link Aggregation | Support Static Aggregation |
| Support LACP Dynamic Aggregation | |
| Support based on IP, MAC, mixed load-balancing modes | |
| Maximum support 8 aggregation groups (8 ports per aggregation group) | |
| IPv6 | Support IPv6 Ping、 IPv6 Traceroute、IPv6 Telnet |
| Support IPv6 SSH | |
| Support IPv6 HTTP, IPv6 HTTPS | |
| Management & Maintenance | Support WEB Management（HTTP, HTTPS） |
| Support CLI (Telnet, SSH V1/V2, Local serial port) | |
| Support SNMP V1/V2/V3 | |
| Support RMON V2 | |
| Support LLDP Device discovery | |
| Support SNTP Time synchronization | |
| Support CPU Monitoring, Memory Monitoring | |
| Support System log, classification warning | |
| Support Ping, Traceroute detection, cable detection | |
Dimensions (mm)
