5-Port Gigabit 60W POE Extender
5-Port Gigabit 60W POE Extender - Image 2
5-Port Gigabit 60W POE Extender - Image 3
5-Port Gigabit 60W POE Extender - Image 4

5-Port Gigabit 60W POE Extender

POEET-IB-GB-1T4

● 1xGE 60W PoE In+4xGE 30W PoE Out
● Bandwidth：10Gbps
● Hardware Features：VLAN
● Surge Protection：Port Surge: Differential Mode 4KV
● Working Temperature:：0℃～40℃

Download the datasheet

Why You Want It

4KV Port Surge protection

Guards against voltage surges for stable outdoor use.

Supports Hi-PoE Input

Accepts high-power PoE input for wider compatibility.

4x1Gbps PoE 802.3af/at PoE Output

Provides gigabit‑speed PoE power and data for four surveillance devices.

VLAN Port Isolation

Reduces signal interference and enhances network security.

Multiple Cascades

Extends PoE transmission distance via multi-stage connection.

Multiple Installation Options

Supports desktop, wall‑mounted and rail mounting for flexible deployment.

High-power Gigabit PoE Surveillance Extender

POEET-IB-GB-1T4 is a Gigabit PoE Extender designed for efficient network and IP surveillance deployment. Featuring 1xGigabit PoE IN port and 4xGigabit PoE OUT ports, it extends both power and data over a single Ethernet cable, simplifying installation while reducing additional cabling costs. Supporting 60W HiPoE input and IEEE 802.3af/at PoE standards, it delivers stable power and Gigabit connectivity for IP cameras, APs, and other PoE-powered devices.

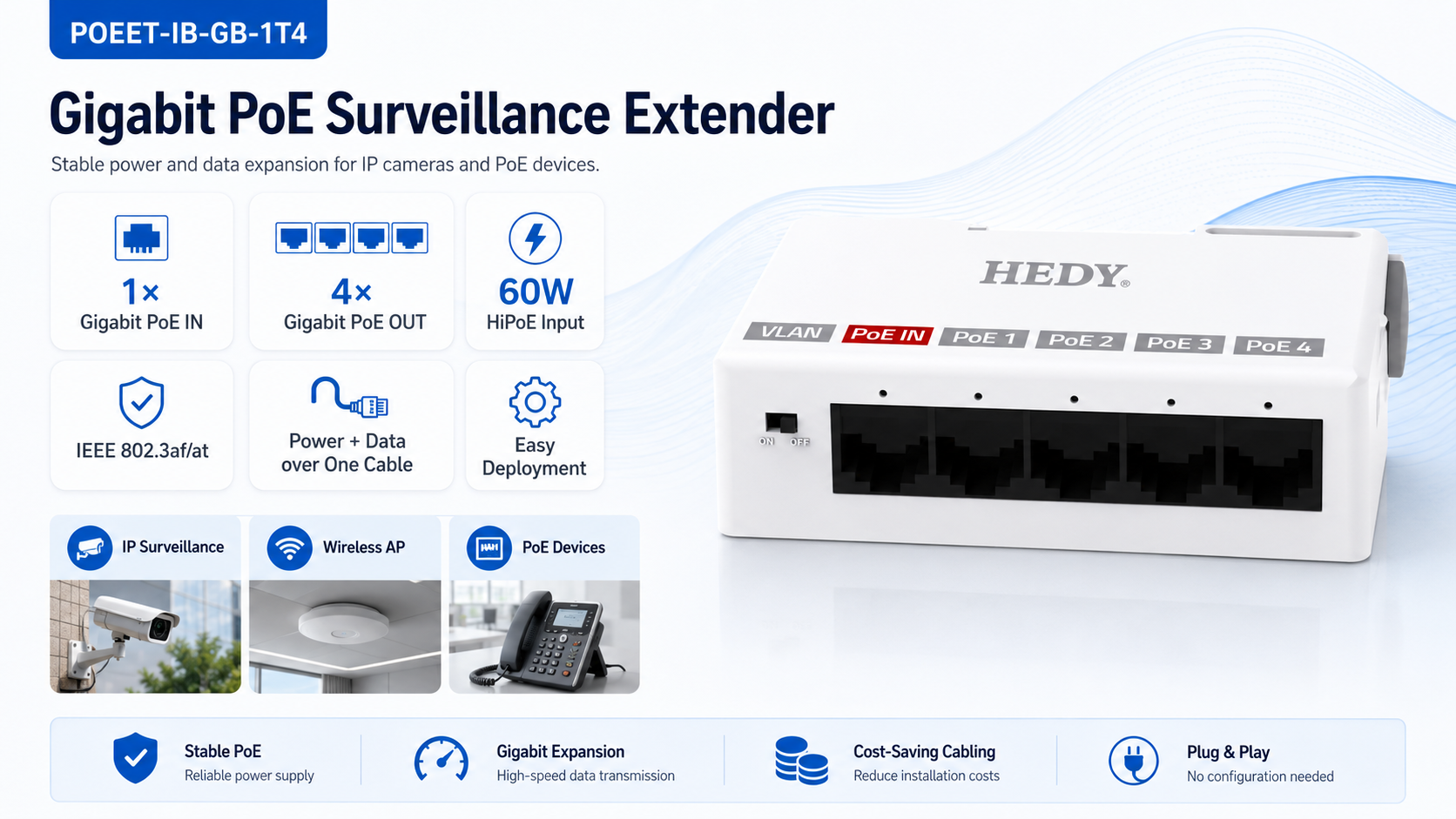

POEET-IB-GB-1T4 Gigabit PoE extender with 1 Gigabit PoE input, 4 Gigabit PoE outputs, 60W HiPoE input, IEEE 802.3af/at support, power and data over one cable, ideal for IP cameras, wireless APs, and PoE devices.

Standard-compliant Secure Gigabit PoE Extender

Compliant with IEEE 802.3/802.3u/802.3ab/802.3x standards, the extender supports 10/100/1000Mbps auto-negotiation, Auto MDI/MDIX, VLAN isolation, and PoE Watchdog functions for more stable and secure network operation. With real-time LED status indicators and flexible desktop, wall-mount, or DIN-rail installation, it is ideal for hotels, campuses, warehouses, and large-scale surveillance deployments.

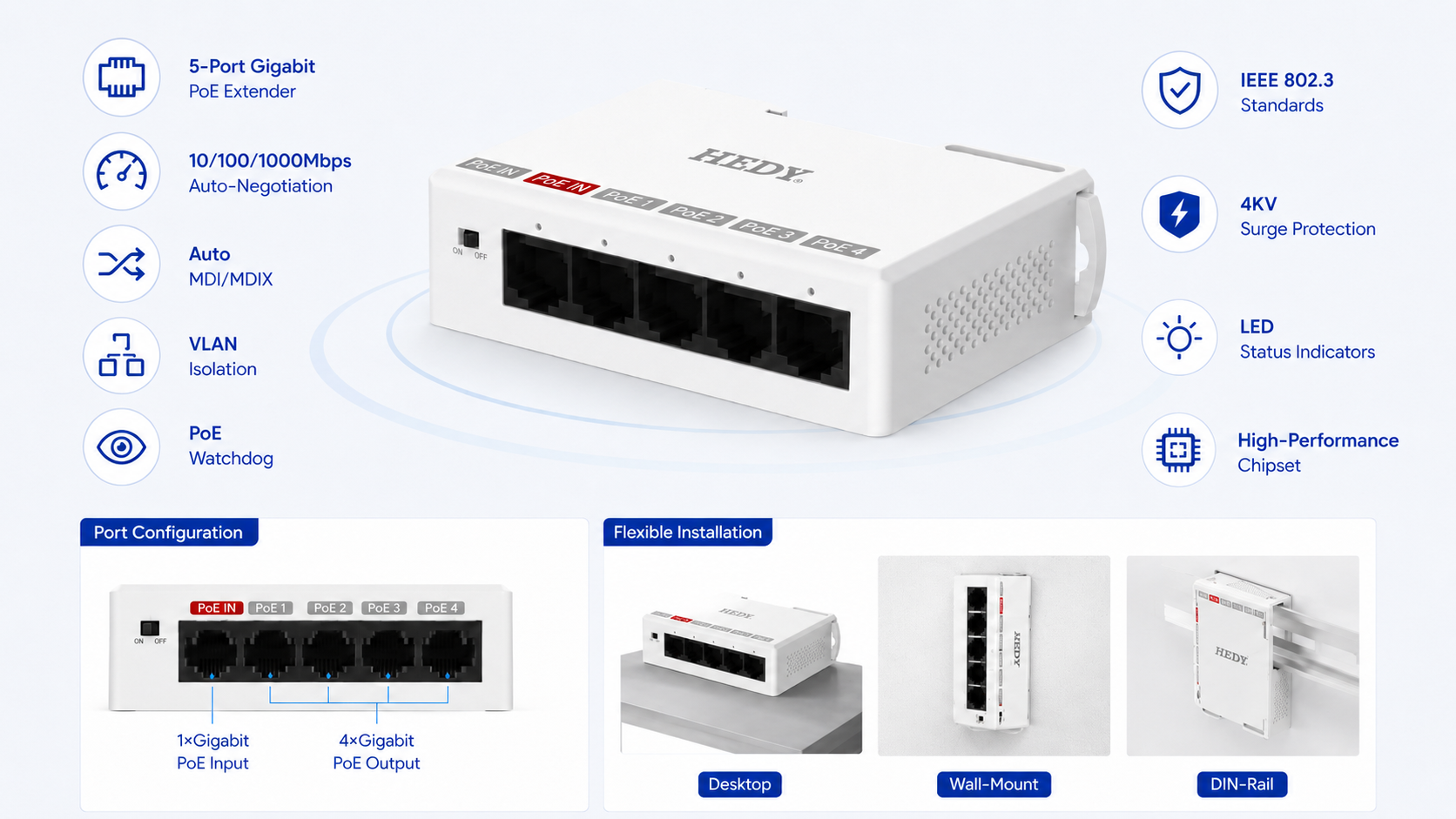

POEET-IB-GB-1T4 secure Gigabit PoE extender with IEEE 802.3, 802.3u, 802.3ab, and 802.3x compliance, 10/100/1000Mbps auto-negotiation, Auto MDI/MDIX, VLAN isolation, PoE Watchdog, LED indicators, and flexible desktop, wall-mount, or DIN-rail installation.

Core Functional Advantages

● Input: 1x1Gbps PoE input port
● Multiple Output Ports: 4x1Gbps PoE output ports compliant with IEEE 802.3af/at, providing a 44W total power budget
● Standards Compliance: Fully complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards for reliable gigabit performance
● Auto-MDI/MDIX: Simplifies installation with automatic port configuration
● VLAN Mode Support: Enhances network segmentation and transmission stability
● LED Status Indicators: Enables quick monitoring and troubleshooting
● Durable Protection: Offers 4KV surge protection for stable indoor operation
● Compact Housing: Designed for flexible, long‑term indoor deployment

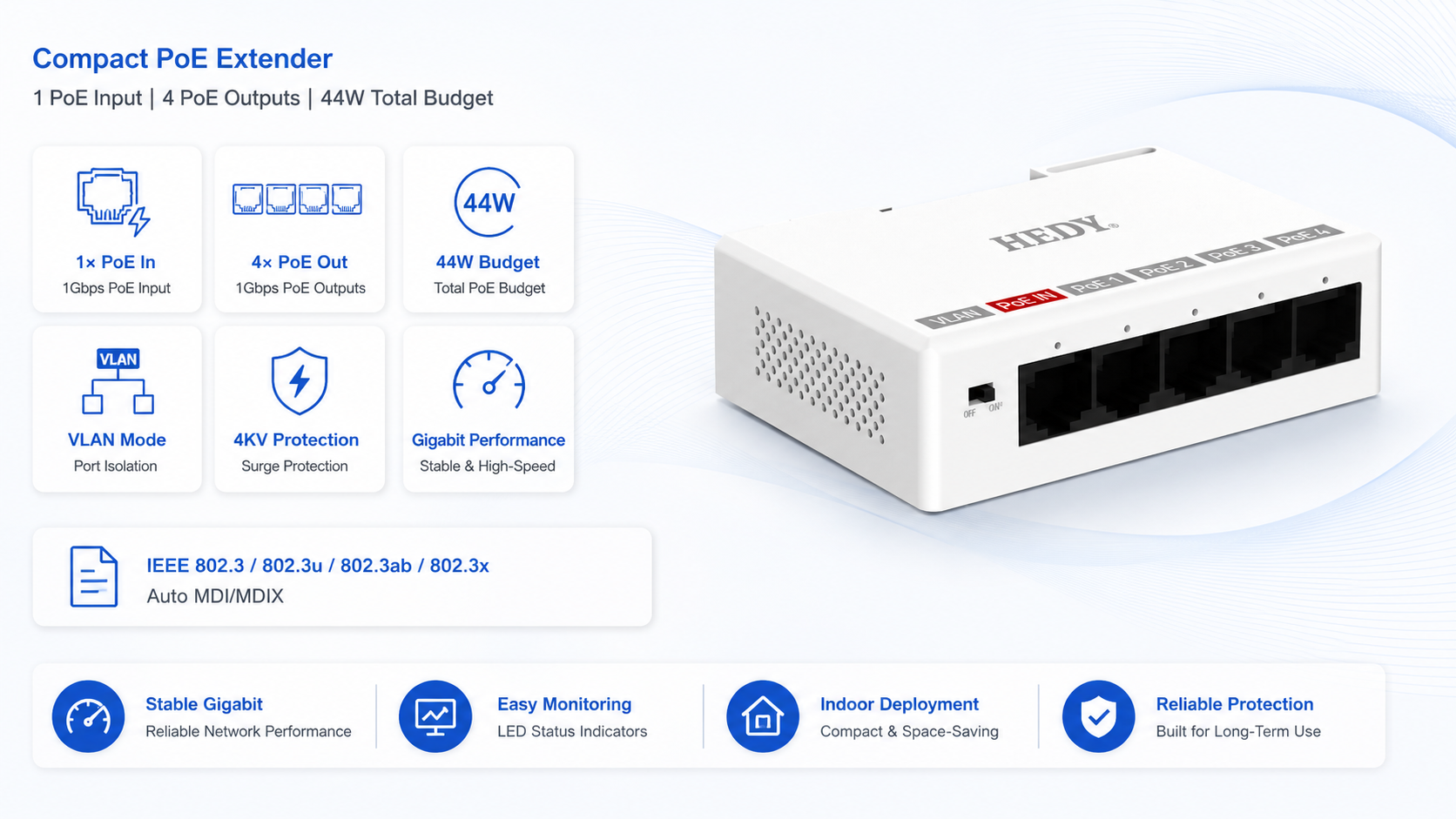

POEET-IB-GB-1T4 compact Gigabit PoE extender with 1Gbps PoE input, 4Gbps PoE outputs, 44W total PoE budget, VLAN mode, Auto MDI/MDIX, LED status indicators, 4KV surge protection, and reliable indoor deployment.

Specification

ModelPOEET-IB-GB-1T4
Interface1*1Gbps PoE in port

4*1Gbps PoE out ports

Port StandardIEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab (Gigabit Ethernet)

IEEE802.3x (Flow Control)

Switching Bandwidth10Gbps
Packet Forwarding Rate7.44Mpps
MAC Address Table2K
Transmission MethodStore and Forward
PoE StandardIEEE802.3af (15.4W)

IEEE802.3at (30W)

PoE Port Output VoltageDC 44-57V
PoE PortsPort PoE out <30W
PoE Power Budget44W
Power SupplyIEEE802.3af/at/HiPoE
Mainboard Power Consumption1.59W
Structure InformationProduct Dimensions: 96*66.5*28mm

Packaging Dimensions:  100*72*31mm

Product Net Weight: 0.08KG

Product Gross Weight: 0.093KG

Packing InformationCarton Dimensions:  375*335*220mm

Packing Quantity: 100PCS

Packing Weight: 10.3KG

InstallationDesktop, Wall mounting installation, Rail installation

Dimensions (mm)

Product structure
