L2 Managed Type Gigabit 10-Port PoE Switch
HNM8G2S-96
● 8×10/100/1000Mbps PoE Ports & 2 SFP Ports
● Managed PoE switch with VLAN, QoS, IGMP Snooping v1/v2/v3, complete STP/RSTP/MSTP, SNMP v1/v2/v3 and DHCP management
● 100-240V AC 50/60Hz
Why You Want It
IEEE802.3af/at
Compliant with both IEEE802.3af (PoE) and IEEE802.3at (PoE+) standards, and meets IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x standards for reliable performance.
Full Layer 2/3 Management
Supports WEB/CLI/SSH/SNMP with VLAN, QoS, ACL, static routing – enterprise-grade management.
Redundant Ring Protocols
Supports STP/RSTP/MSTP – link backup and loop protection for high network availability.
Smart PoE Management
PoE Watchdog, schedule, and timer reboot – auto-maintenance, lower operational costs.
Industrial-Grade Security
Supports 802.1x, AAA, ACL, DoS protection – secure access, prevent unauthorized intrusion.
Console Port Management
Provides RJ45 Console port for local CLI management – easy initial configuration, troubleshooting, and advanced debugging for network engineers.

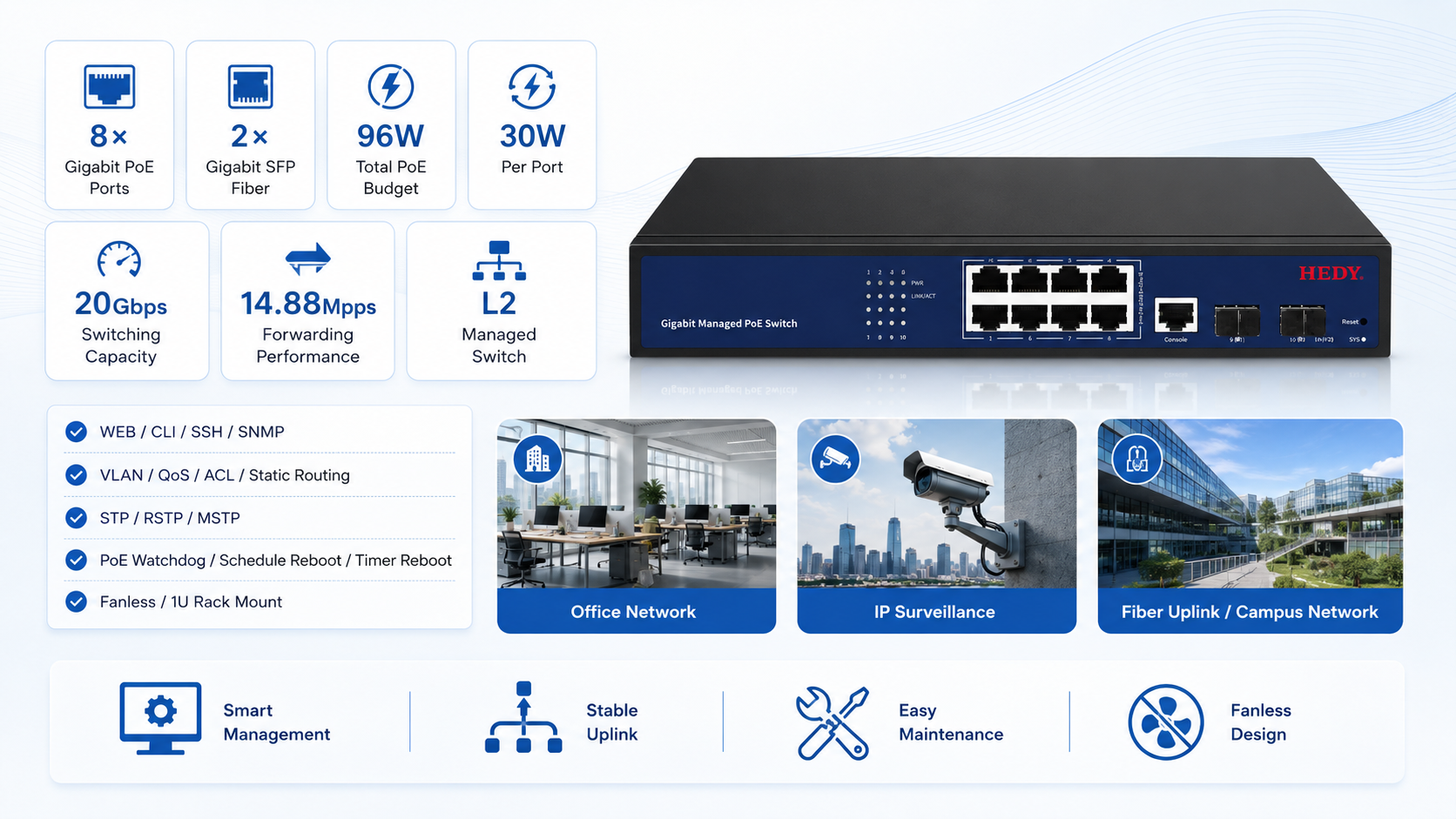

L2 Managed Type Gigabit 10-Port PoE Switch
Equipped with 8 x Gigabit PoE ports (30W per port, 96W total), 2 x Gigabit SFP fiber ports, and 1 x RJ45 Console port. Delivers 20Gbps switching capacity and 14.88Mpps packet forwarding rate..Supports WEB/CLI/SSH/SNMP management with VLAN, QoS, ACL, static routing. STP/RSTP/MSTP for link redundancy. PoE Watchdog + schedule + timer reboot – easy maintenance. Fanless, 1U rack mountable.

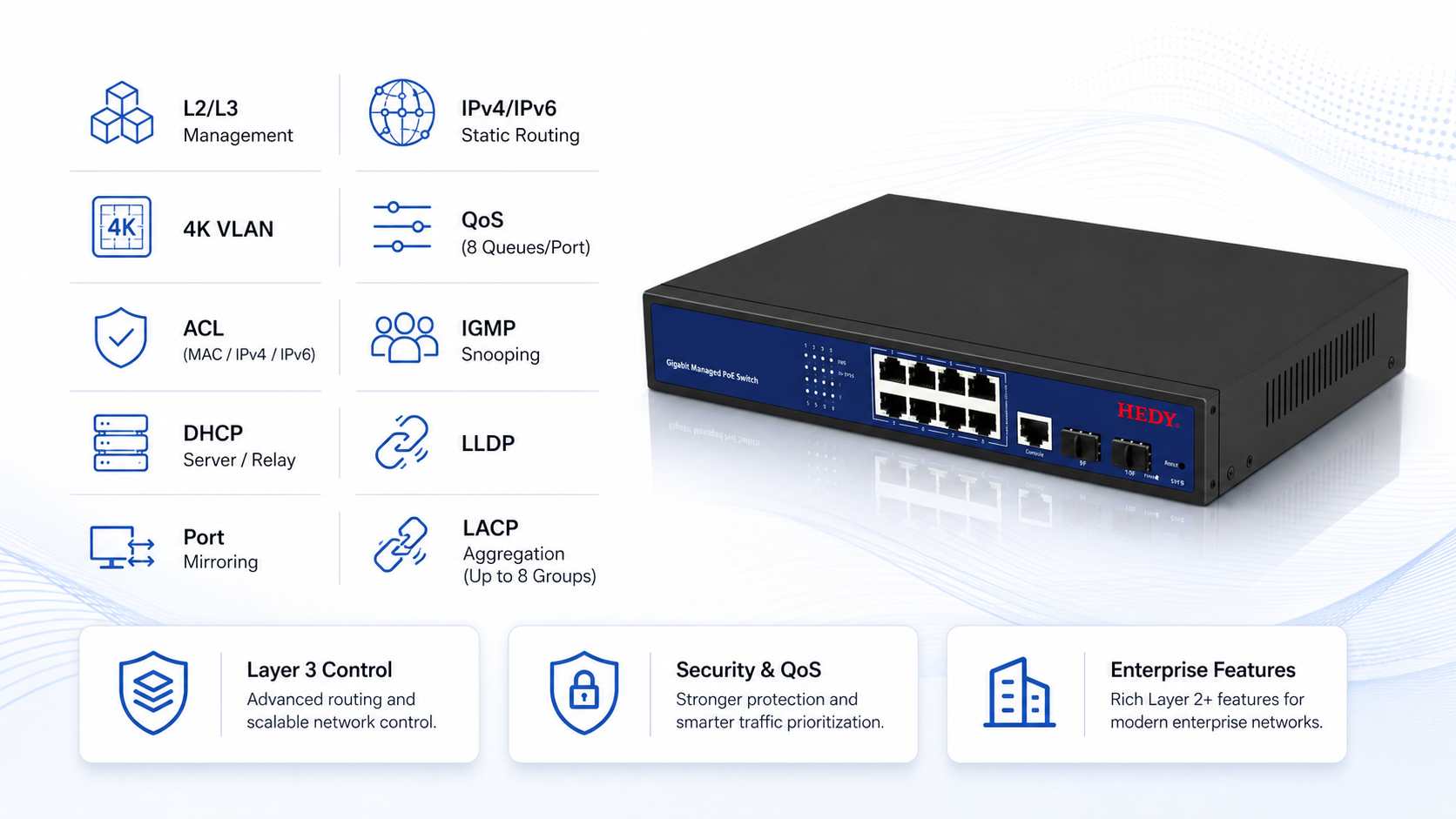

Rich Software Features
Supports L2/L3 full management with IPv4/IPv6 static routing for cross-network communication. Features VLAN (up to 4096), QoS (8 queues/port), ACL (MAC/IPv4/IPv6), and IGMP Snooping. Also supports DHCP Server/Relay, LLDP, port mirroring, and link aggregation (LACP, up to 8 groups) – ideal for enterprise, campus, and surveillance networks.

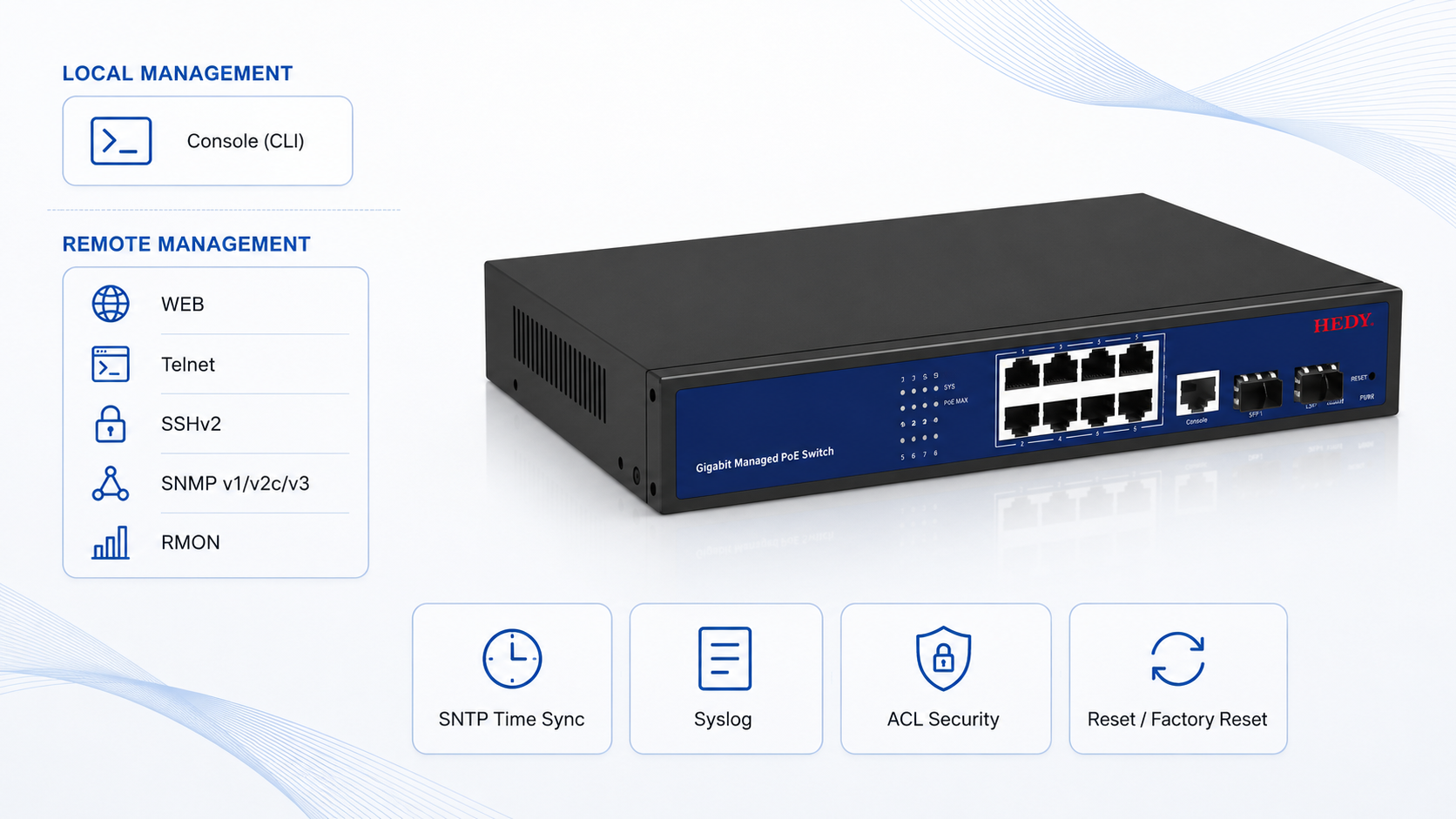

Local & Remote Management
Provides Console port for local CLI management, plus remote management via WEB, Telnet, SSHv2, SNMP v1/v2c/v3, and RMON. Supports SNTP time synchronization, Syslog logging, and Reset button (short press to restart, long press 5s to factory reset). Admin access can be restricted via ACL for enhanced security.
Specification
| I/O Interface | |
| Model | HNM200-AFGM-SWTG3448S-800 |
| Power Input | AC100-240V/50-60Hz |
| Ethernet | 48* 10/100/1000Mbps POE Ports (Ports 1-4 support BT Power Supply)
4* 10G SFP+ Port 1* RJ45 Console Port 1* USB serial Port |
| Performance | |
| Bandwidth | 176Gbps |
| Packet Forwarding Rate | 131Mpps |
| DDR SDRAM | 512MByte |
| Flash Memory | 32MByte |
| Buffer Memory | 16Mbit |
| MAC Address | 32K |
| Jumbo Frame | 12Kbytes |
| VLANs | 4096 |
| MTBF | 100000 Hours |
| Function Indicator | |
| Indicator | PWR (Power Indicator), SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator) |
| PWR | On: Powered On；Off: Powered Off |
| SYS | On: System On
Flashing: System Off or Failed |
| Link/ACT | On: Link Connecting
Flashing: Data Transmitting Off: Link Off |
| Physical Specification | |
| Structure Size | Product Dimensions: 440*360*44.5mm
Package Dimensions: 580*440*120mm Product N.W: 5.30KG；Product G.W: 6.58KG |
| Power Voltage | Working Voltage: AC100-240V 50/60Hz
Power Supply: 52V 11.5A/ 12V 6A |
| Power Consumption | POE: POE Total Power<600W
Power Consumption: Machine<67.5W |
【Software Function】
| L3 Function | |
| IPv4 | IPv4 VLAN Interface |
| IPv4 Static Routes | |
| ARP | |
| IPv6 | IPv6 VLAN Interface |
| IPv6 Static Routes | |
| IPv6 ND | |
| RIP | V1/V2 |
| OSPF | Router-ID |
| Authentication | |
| L2 Function | |
| Port | Port Switch |
| Port Description | |
| Port Speed | |
| Port Duplex | |
| Port Flow Control | |
| Jumbo, Up to 10K | |
| Support 10G/2.5G (2023.3.2) | |
| Fiber Module(DDM) | |
| Link Aggregation | Supports load balance policy; Base on MAC and IP-MAC |
| Static and Dynamic Group | |
| Supports LACP | |
| Up to 8 groups | |
| Storm Control | Boardcast |
| Unknown Multicast | |
| Unknown Unicast | |
| Port Mirroring | One to one monitor |
| Many to one monitor | |
| Ingress/Egress/Both | |
| Up to 4 session groups | |
| Port Security | MAC Address Constraints |
| Port Security MAC Address | |
| Protect/Restrict/Shutdown | |
| Port Isolation | |
| Port Rate-limit | |
| Loopback Detection | |
| VLAN | Access/Trunk/Hybrid |
| VLAN Tunnel （Q-in-Q Tunnel） | |
| Congurable VID from 1 – 4094; Max. 4K static VLAN groups |
|
| Voice VLAN | |
| MAC VLAN | |
| Surveillance VLAN | |
| 协议VLAN / Protocol VLAN | |
| GVRP | |
| MAC Address | Dynamic Address |
| Static Address | |
| Filtering Address | |
| Spnning Tree Protocol | STP/RSTP/MSTP |
| BPDU Filter | |
| BPDU Guard | |
| Edge Port | |
| LLDP | LLDP |
| LLDP MED | |
| Multicast | IGMP Snnoping |
| IGMP V1/V2/V3 | |
| Router Port | |
| Static IGMP group address | |
| IGMP groups filtering | |
| Querier | |
| MLD Snooping | |
| MVR | |
| QoS | Traffic classification based, Strict priority and WRR |
| Port Priority | |
| 802.1P Priority | |
| IP TOS Priority | |
| IP DSCP Priority | |
| Supports up to 8 queues per port | |
| Priority Remarking | |
| PoE | |
| PoE Configuration | PoE Temperature |
| PoE Type/Level/Power/Voltage/Current | |
| PoE Switch | |
| PoE Watchdog | |
| PoE power AF/AT adaptation | |
| IEEE 802.3bt，compatible with IEEE 802.3af/802.3at PoE | |
| PoE Schedule | |
| PoE Port Timer Reboot | |
| Services | |
| DHCP | DHCP Server |
| IP Pool | |
| Static Binding | |
| DHCP Relay | |
| Option 43 | |
| Access Protocol | HTTP |
| HTTPS | |
| Telnet | |
| SSHv2 | |
| Manager ACL | |
| Session Timeout | |
| Password Retry Count | |
| Silent Time | |
| Security | |
| AAA | RADIUS |
| TACACS+ | |
| 802.1X | |
| Base on port/MAC/local/WEB | |
| DHCP Snooping | Global/VLAN |
| Option 82 | |
| Circuit ID | |
| IP Source Guard | |
| Dynamic ARP Inspection | |
| DoS | |
| ACL | MAC ACL |
| IPv4 ACL | |
| IPv6 ACL | |
| Diagnostics | |
| Syslog | Logging Message |
| Remote Server | |
| Ping | |
| Traceroute | |
| Copper Test | |
| UDLD | |
| Managemnet | |
| Manager Access | Console |
| HTTP/HTTPS | |
| Telnet | |
| SSH | |
| SNMP | |
| Manager IP | Static Address |
| DHCP Client | |
| Supports IPv4 and IPv6 address | |
| Manager VLAN | |
| DNS | |
| Time Synchronization | SNTP |
| Manual Time | |
| SNMP | V1/V2C/V3 |
| Community | |
| V3 User | |
| Group | |
| Trap Host | |
| SNMP MIB | RFC 1213 MIB-II |
| RFC 1493 Bridge MIB | |
| RFC 1643 Ethernet MIB | |
| RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) | |
| RFC 2863 Interface MIB | |
| LLDP | |
| Private MIB | |
| RMON | Statistics |
| History | |
| Event | |
| Alarm | |
| User | |
| Firmware | Double Image; Swap between Active and Alternate firmware image. |
| Firmware Upgarde | |
| Configuration | Upload and download |
| Upload and download via USB interface | |
